Pseudo-reference Electrodes in Biosensors: The Hidden Source of Potential Drift

Why your biosensor works in PBS but fails in real samples

In the lab, your sensor matches the expected response in PBS, but then you switch to serum and the peak potential drifts and looks “different”. You read two different papers that appear to use the same system, yet the reported potentials are shifted between them.

Sounds familiar?

Sometimes it’s not the biochemistry. It’s that your reference electrode is referencing something different than what you think.

In biosensors (or generally in microfluidics, wearables, SPE strips…) cost and integration push you towards an integrated pseudo‑reference (often Ag or Ag/AgCl directly exposed to the sample). That convenience is exactly where the hidden error enters: pseudo reference electrode biosensor setups often treat a pseudo‑reference like a true anchor.

Pseudo-reference vs true reference electrodes: what actually changes

Let’s take Ag/AgCl, because it’s the most common reference electrode.

The core point is simple: Ag/AgCl potential follows a Nernst‑type dependence on chloride activity near the Ag/AgCl interface:

E(Ag/AgCl) ≈ E⁰ − 0.059log a(Cl⁻) (at 25ºC)

That means that the potential changes ~59 mV per decade in chloride activity (pCl).

True reference electrode: controlled internal chemistry

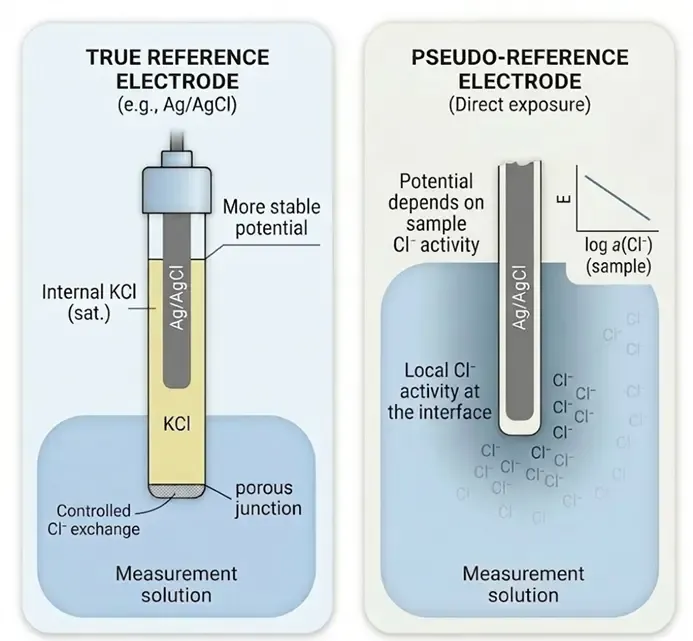

A true Ag/AgCl reference electrode is engineered so the Ag/AgCl element “sees” a controlled chloride environment, such as a saturated or 3 M KCl internal electrolyte separated by a frit/diaphragm from the sample (see image below). That’s why its potential is far more reproducible across experiments, and why the same “Ag/AgCl” label can still mean different offsets if the internal electrolyte is saturated vs 3 M vs 1 M KCl (with some nuances also).

Pseudo reference electrode: exposed to the environment

In a pseudo‑reference, the Ag/AgCl layer is much more exposed: local chloride activity can change with the sample, with hydration history, with biofouling, and with whatever ions/redox species are around (see image below). That’s why the pseudo reference vs reference electrode distinction is not semantics, it’s a stability spec.

Why chloride becomes the hidden variable using Ag/AgCl pseudo-references

Now put yourself in the real startup workflow.

Early R&D is PBS. And yes, inside a lab you usually keep the PBS recipe fixed. But across labs, suppliers, and “PBS‑like” variants, ionic strength and salt composition can differ. A standard PBS recipe, for example, is often quoted around 137 mM NaCl (plus phosphate). Even small deviations, especially when combined with matrix effects, can move Ag/AgCl pseudo‑references by noticeable mV.

Then you move to serum. The average chloride concentration is fairly bounded in blood (typical ranges around ~96–106 mmol/L), but what bites you in devices is not only “bulk chloride”: it’s local activity and micro‑environments at the printed pad (protein adsorption, diffusion limitations in microchannels, incomplete wetting, wash steps, evaporation, etc.). The working electrode didn’t “change” … your potential scale did.

And real samples get worse. Sweat is the classic wearable case: sweat chloride is not a constant, typical values are often discussed in the ~10–100 mM range and can vary dynamically during exercise. If your wearable relies on a bare pseudo‑reference, the reference point becomes person‑ and time‑dependent by design. That’s an electrochemical reference electrode drift mechanism hiding in plain sight.

When a pseudo-reference electrode is acceptable (and when it is not)

Pseudo‑references are not “wrong”. Treating them like a true reference is wrong.

A pseudo‑reference can be acceptable if:

• your medium is well‑defined and stable,
• your metric is relative within the same cartridge/lot,
• you validate drift and calibrate per lot/device (or build in a local chloride reservoir / solid‑state architecture designed to reduce chloride sensitivity).

This is literally the direction the printed‑reference literature is going: printing electrolyte layers / reservoirs and junction‑like structures to keep local ionic activity more constant and reduce susceptibility.

It becomes risky when:

• you rely on a narrow potential window for selectivity,
• you compare across labs/papers,
• you switch matrices (PBS → serum → real samples),
• or you run long assays where hydration, leaching, and biofouling change the local environment around the pad.

Why reference electrode design can make or break your biosensor

Using a pseudo‑reference isn’t the problem. The problem is treating it like a true reference without controlling chloride (activity), drift, and the actual reference architecture.

If you’re seeing irreproducibility or you’re about to move from PBS to serum, and from serum to real samples, keep chloride and reference stability under the microscope at every step. That’s often the difference between a sensor that “works in a paper” and a sensor that survives product validation.
