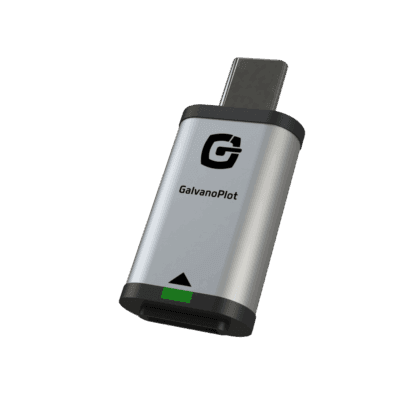

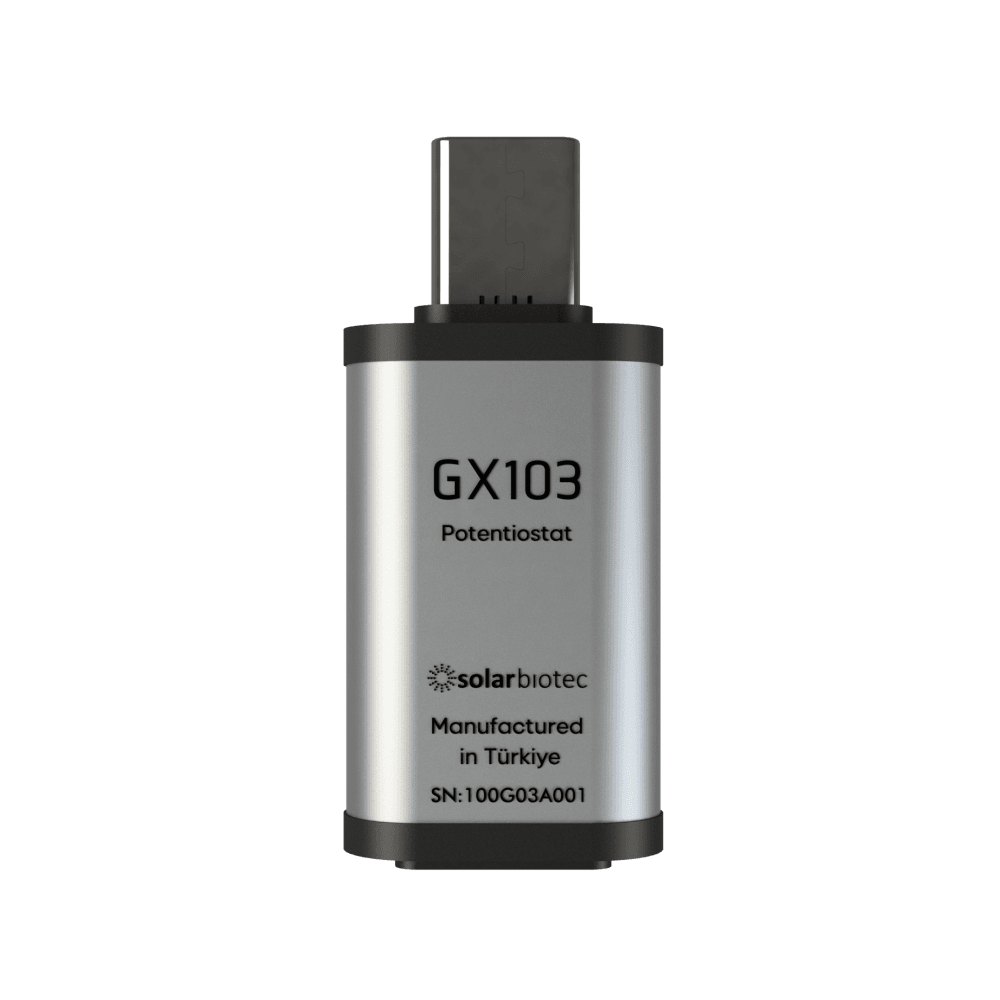

GX103 is the high resolution and high current member of the GX100 Super-compact Series devices. It is capable of performing real-time Open Circuit Potential measurement, as well as all popular Amperometric and Voltammetric electrochemical protocols. GX103 does not have Electrochemical Impedance Spectroscopy and Bi-potentiostat capability and can be used with three electrode (WE/RE/CE) and two electrode (WE/RE-CE) setups only.
Type
Potentiostat/Galvanostat
Dimensions
39 x 18 x 9 mm3
Weight
6 gr
Form Factor
Super-compact
Channels
≥ 1
Cell connection
≥ 3 electrode
PC interface
USB
High Sampling Rate
1000 SPS
Software compatibility
PC, Android
Open Circuit Potential
Sent directly to GalvanoPlot
Sent directly to GalvanoPlot
±2 V
Power (Max)
470 mW
Max. Potential range (±) / V
2
Voltage resolution (input)
1 mV
Min. Voltage resolution (input) / μV
1000
Required Compliance Voltage
≥ 2 V
Current range
8 ranges + autorange (20 mA, 5 mA, 1 mA, 100 µA, 10 µA, 1 µA, 100 nA, 20 nA)
Current Resolution (output)
0.002%, 1 pA @ 1000 SPS, 31 fA @ 1 SPS
Noise Level @1000SPS
-60 dB @ 1000 SPS, -110 dB @ 1 SPS
Minimum Noise @1000SPS
1.8 nA @ 1000 SPS, 20 pA @ 1 SPS
EIS Capability
No
