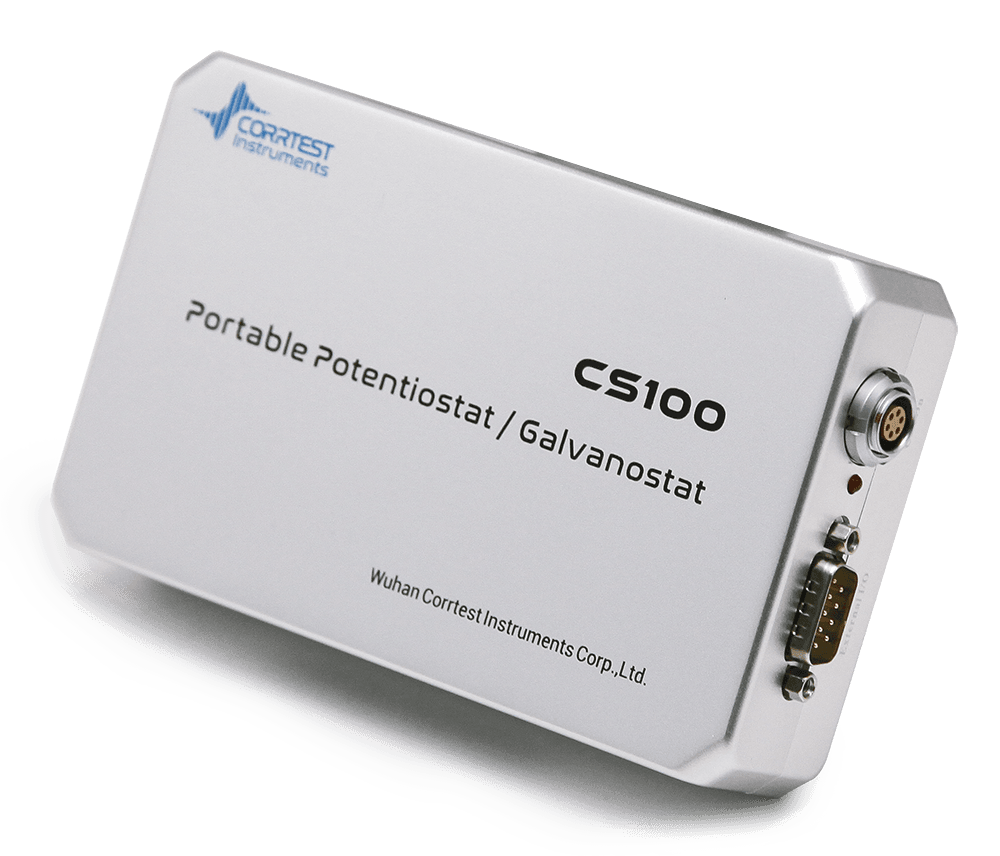

CS100ME
Price: On Request
Description
The CS100ME handheld potentiostat supports full electrochemical methods, including potentiostatic/galvanostatic polarization curve, Cyclic voltammetry analysis, impedance(EIS), andgalvanic current measurement. etc. It has built-in chargeable li-ion battery and Bluetooth communication. Thedevic esupports laptop/computer software or mobile APP. It can be used for electrochemical tests infieldor special non-electricity environment. CS100ME can be a convenient handheld tool for researchersof energy&materials, environment protection, biosensor, foods &drugs, corrosion protection etc. Maximumcurrent is ±100mA.
The voltage control range is ±10V, compliance voltage is ±10V, the maximum current output is ±100mA, and the minimum current resolution can reach 1pA. The EIS frequency range is 10μHz~1MHz.
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
3_3
Weight
0.5 kg
PC Interface
USB, Ethernet
General Potentiostat
Form Factor
Portable
Channels
≥ 1
Cell connection
4 electrode, 3 electrode
ADC resolution
16bit@1MHz, 20bit@1kHz
Input impedance
> 10 TΩ // 8 pF
Digital-to-Analog Converters
16bit, setup time: 1μs
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
1 μV
Min. Voltage resolution (output) / μV
1
Accuracy voltage (output)
0.1 %
Compliance voltage / ±V
10
Min/Max Scan Rate
0.001mV/s to 10000V/s
Smallest Potential Step for Sweep Voltammetry
0.02 mV
Smallest Pulse Width
0.0001s
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±100 mA
Current range
10 ranges, ±200 pA to ±200 mA
Number of current ranges
10
Current Accuracy (output)
0.1 %
Current Sensitivity
1 pA
Max. Current
≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 1 MHz
Max. EIS frequency range / MHz
1
Min. EIS frequency range / µHz
10
Max. EIS Frequency range
≥ 1 MHz, ≥ 1 kHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
