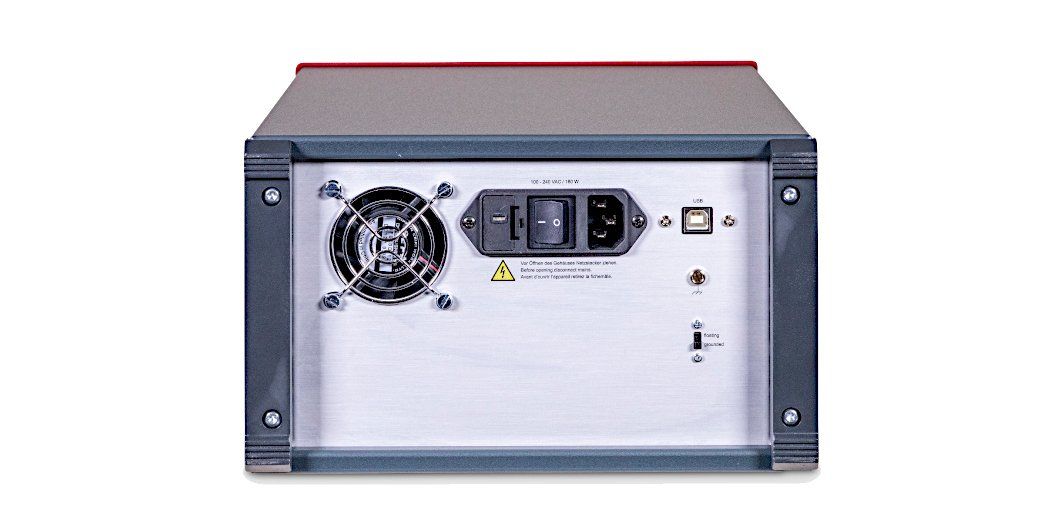

Max. Potential range (±) / V

14

Voltage resolution (output)

2.5 nV in 5V range, 7.5 nV in 14V range

Accuracy voltage (output)

±200 µV ± 0.001% of reading in 5V range, ±600 µV ± 0.001% in 14V range

Min. Accuracy voltage (output) / mV

0.2

Compliance voltage / ±V

14

Voltage resolution (input)

2.5 nV in 5V range, 7.5 nV in 14V range

Min. Voltage resolution (input) / μV

0.0025, 0.0025

Accuracy voltage (input)

±100 µV ± 0.0005% of reading in 5V range, ±300 µV ± 0.001% in 14V range

Min. Accuracy voltage (input) / mV

0.1

Voltage Ranges

2 ranges, [±14 V, ±5 V]

Number of Voltage Ranges

2

Slew rate

15 MV/s

iR Compensation Limits

auto AC impedance technique, range 0 to 10 MΩ, resolution 0.012%

Integral Nonlinearity

typ. ± 0.0004% and max ± 0.0008% in 5V range, typ. ± 0.0012% and max ± 0.0024% in 14V range

AC amplitude

0 to 2 V and 24 bit resolution in 5V range, 0 to 6 V and 24 bit resolution in 14V range

Phase shift

10° @ 500 kHz

Min. Voltage resolution (output) / μV

0.0025

Required Compliance Voltage

≥ 10 V, ≥ 5 V, ≥ 2 V

Current range

±1.9 nA to ±2 A in 12 steps, ±1 pA to ±0.5 A in 35 ranges, automatic range selection (HiZ-Probe)

Number of current ranges

12

Current Resolution (output)

32 bit ±0.0002% of FS (0.0001% @ 1 pA), ±2 aA (HiZ-Probe)

Current Accuracy (output)

±0.1% of reading ± 0.04% of FS - ≥1 µA to 100 mA, ±0.4% of reading ± 0.2% of FS - < 1 µA or > 100 mA

Current Resolution (input)

±2 aA (32 bit)

Min. Current Resolution (input) / pA

0.000002

Current Accuracy (input)

±0.5% of reading ± 125 fA - <, 1 nA, HiZ Probe, ±0.5% of reading ± 0.4% of FS - 10 nA ... 1 µA, ±0.05% of reading ± 0.04% of FS - 1 µA ... 100 mA, ±0.5% of reading ± 0.4% of FS - 100 mA ... 2 A

Min. Current Resolution (output) / pA

0.000001

EIS Capability

Yes

EIS frequency range

10 µHz to 5 MHz

Max. EIS frequency range / MHz

5

Min. EIS frequency range / µHz

10

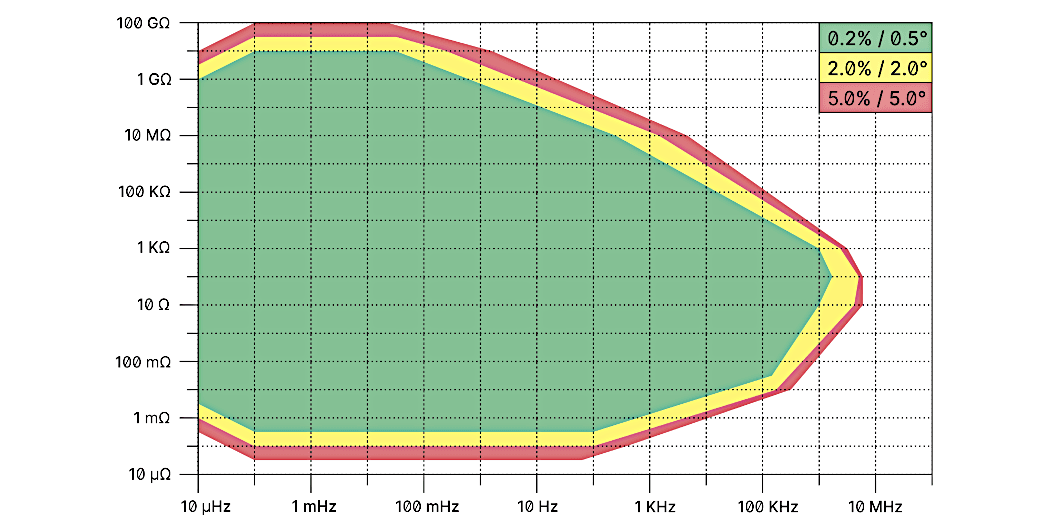

Accuracy Contour Plot

See images

EIS Amplitude resolution

0 to 2 V - 24 bit resolution in low range, 0 to 6 V - 24 bit resolutio in high range

AC frequency accuracy

< 0.0025%

AC frequency resolution

0.0025%, 10,000 steps/decade
