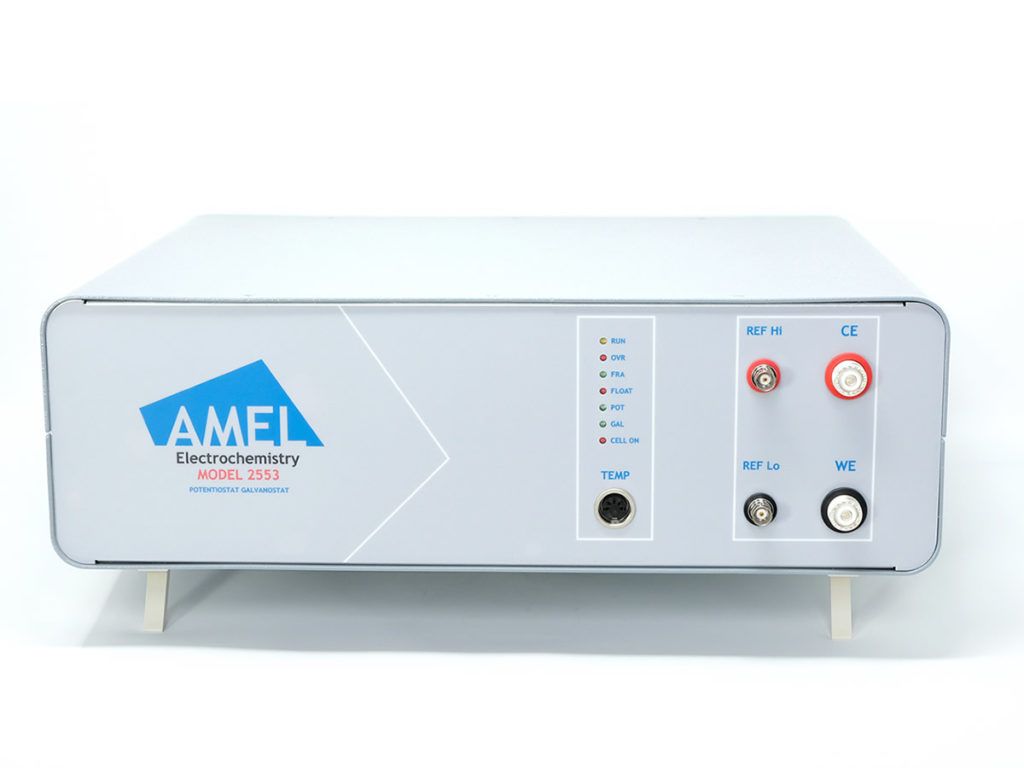

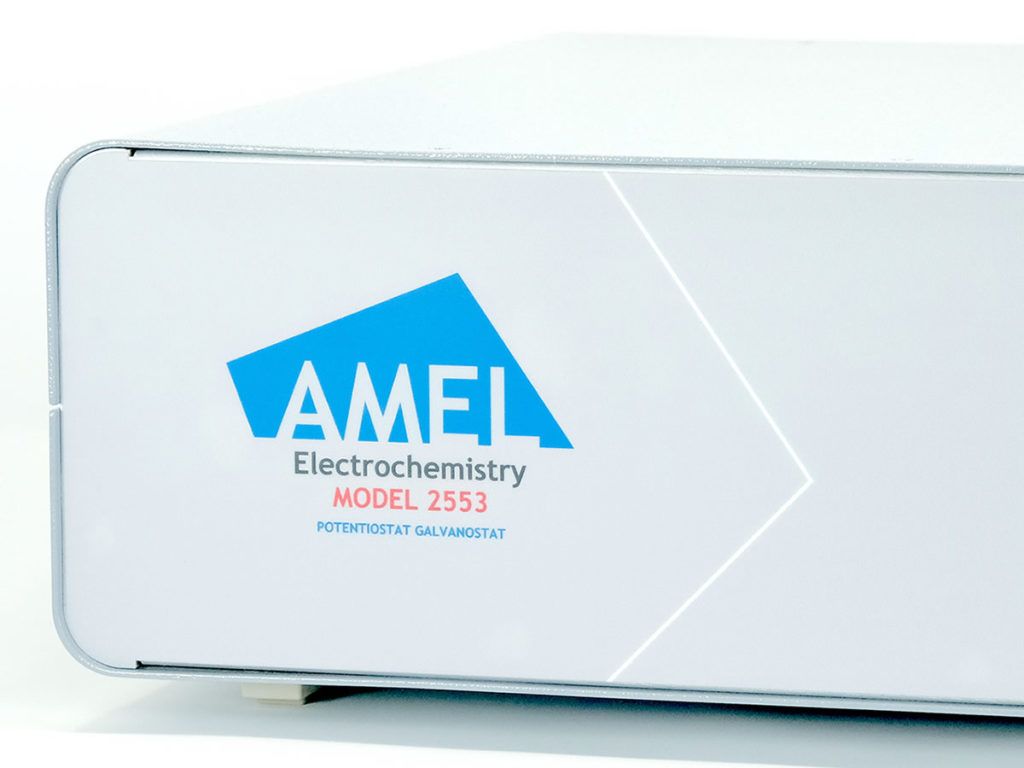

2553 High Voltage Potentiostat-Galvanostat
Price: On Request
Description
Model 2553 allows for experiments where a large compliance potential is required, along with stability of the measurement and long-time reliability. The new version offers positive feedback control, fast transient response, automatic or manual current ranging and IR compensation.
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
44 x 40 x 14.5
Weight
15 kg
PC Interface
USB
Power supply
115 to 230V ±10% AC/DC 50/60Hz
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 1
Cell connection
4 electrode, 3 electrode
ADC resolution
16 bit
Memory
EEPROM 64kB – SRAM 32kB
Input impedance
> 1 TΩ
Digital-to-Analog Converters
16 bit
Input Capacitance
< 20 pF (1m cable)
Protection
Thermal, overload and short-circuit
Common Mode Rejection
> 60dB full frequency response
Port Output
8 external accessory
I/O port
8 optional
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
100 μV
Min. Voltage resolution (output) / μV
100
Accuracy voltage (output)
± 0,2% & 0,1% (conversion at Full Scale)
Compliance voltage / ±V
45
Voltage Ranges
± 10V max or ± 50V max
Slew rate
0,01mV/s to 10V/s
iR Compensation Limits
2Ω to 100MΩ (depending on current range)
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher, ±15 V or higher
Required Compliance Voltage
≥ 25 V, ≥ 15 V, ≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±1 A
Current range
9 ranges, ±10 nA to ±1 A
Number of current ranges
9
Current Resolution (output)
From 10pA at 10nA F.S. to 100μA at 1A F.S.
Min. Current Resolution (output) / pA
10
Current Accuracy (output)
< 1% of Full Scale in 10nA to 1μA ranges < 0,25% of Full Scale in 10μA to 1A range
Max. Current
≥ 1 A, ≥ 250 mA, ≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
No
