MultiSquidstat
Price: Configuration dependent
Description

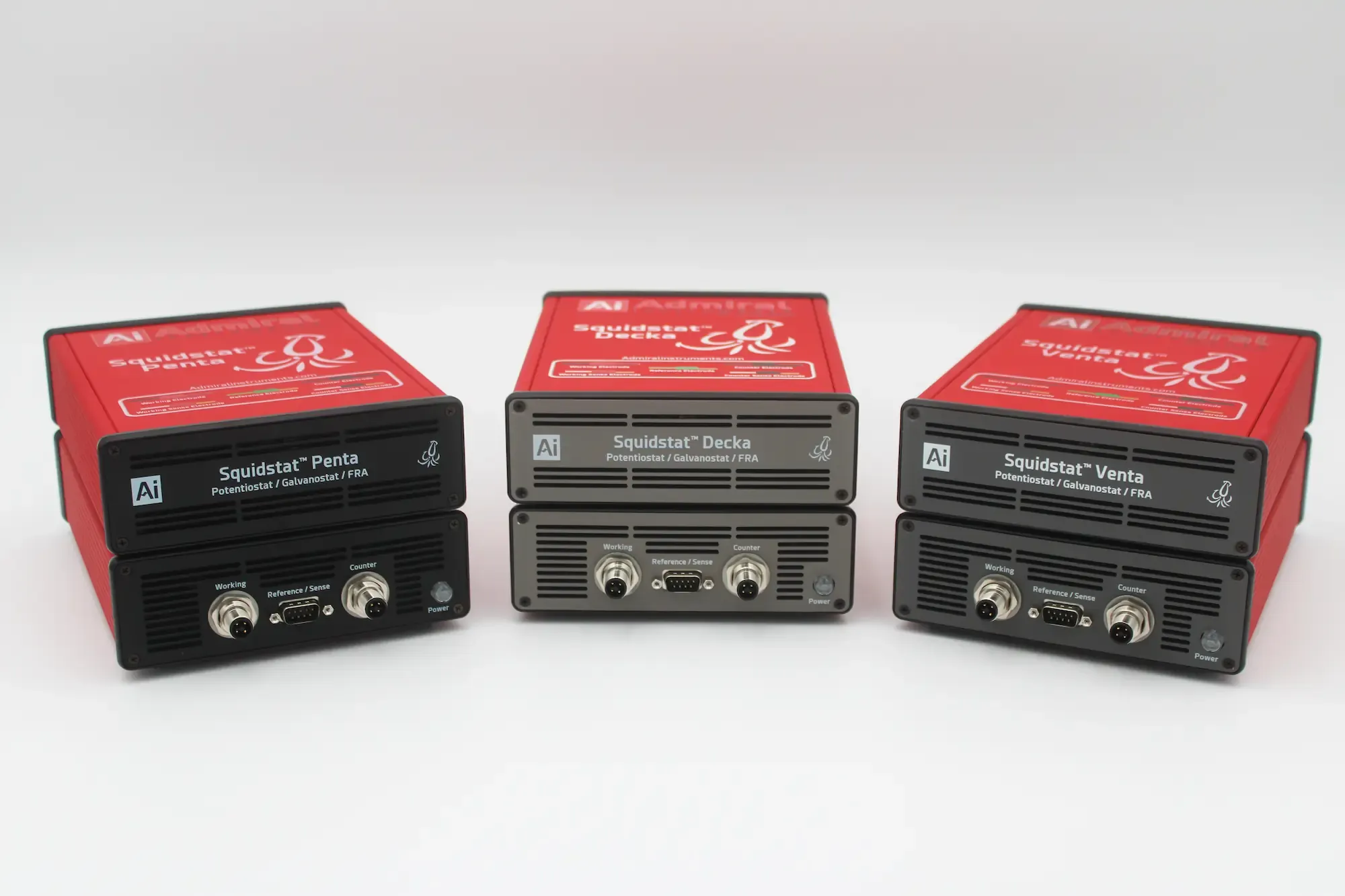

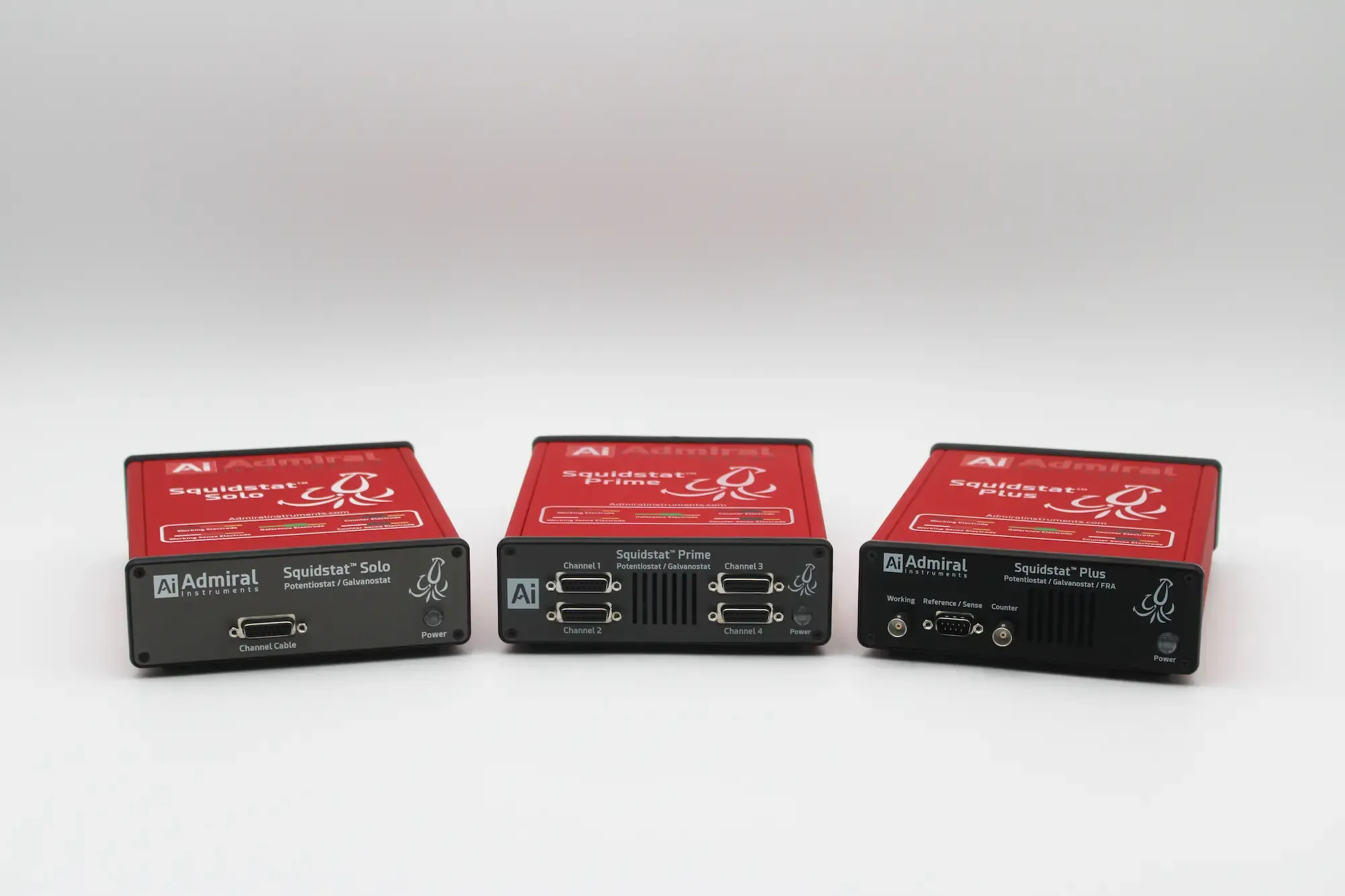

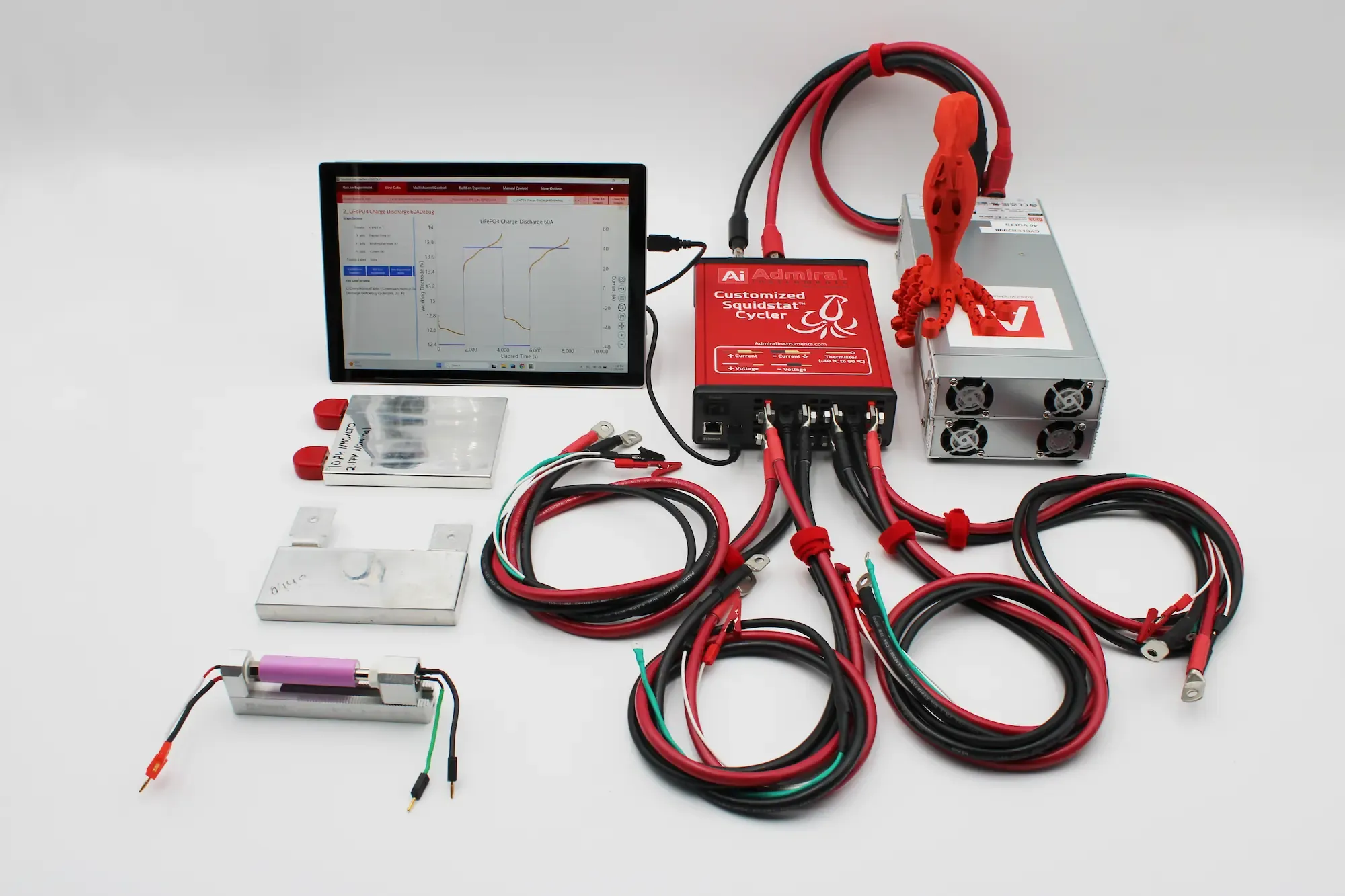

Modular multi-channel electrochemical workstation configurable from any combination of Squidstat units (Solo, Prime, Plus, Penta, Decka, Venta or Cycler). Each module operates as an independent potentiostat/galvanostat but can be fully synchronized via Squidstat User Interface (SUI) or Application Programming Interface (API) for multi-channel experiments. Ideal for parallel electrochemical testing, corrosion monitoring, or sensor arrays.
This system supports multiple electrochemical experiments. Please contact the vendor for the complete and up-to-date list of supported experiments.
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
Configuration dependent
Weight
Configuration dependent
PC Interface
USB
Power supply
100 – 240 VAC, 50/60Hz
General Potentiostat
Form Factor
Benchtop / Lab
Cell connection
5 electrode, 3 electrode, 4 electrode
Potentiostat modes
Potentiostatic, Galvanostatic, ZRA, FRA
ADC resolution
Configuration dependent
Ground reference
Configuration dependent
Shortest DC data recording interval
Configuration dependent
Shortest DC data hardware sampling interval
Configuration dependent
Memory
Configuration dependent
Ambient temperature when measuring
0 °C to +40 °C
Channel Cable Length
1 m
Input impedance
Configuration dependent
Input Bias Current
Configuration dependent
Channels
≥ 1, ≥ 2, ≥ 4, ≥ 32, ≥ 64
Potentiostatic
Max. Potential range (±) / V
6, 10
Voltage resolution (output)
Configuration dependent
Accuracy voltage (output)
Configuration dependent
Compliance voltage / ±V
6, 10, 11.5, 12
Voltage resolution (input)
Configuration dependent
Accuracy voltage (input)
Configuration dependent
Voltage Ranges
Configuration dependent
Slew rate
Configuration dependent
Min/Max Scan Rate
Configuration dependent
Smallest Potential Step for Sweep Voltammetry
Configuration dependent
Smallest Pulse Width
Configuration dependent
Square Wave Voltammetry Max Frequency
Configuration dependent
Time Resolution
Configuration dependent
iR Compensation Limits
Configuration dependent
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Current range
Configuration dependent
Number of current ranges
2, 3, 8, 9
Current Resolution (output)
Configuration dependent
Current Accuracy (output)
Configuration dependent
Current Resolution (input)
Configuration dependent
Min. Current Resolution (input) / pA
0.3, 0.76, 3, 30
Current Accuracy (input)
Configuration dependent
Impedance
EIS Capability
Yes, Optional
EIS frequency range
10 µHz to 2 MHz, 10 µHz to 10 kHz
Max. EIS frequency range / MHz
2, 0.01
Min. EIS frequency range / µHz
10
Accuracy Contour Plot
See images
EIS Amplitude resolution
24-bit resolution
AC frequency accuracy
0.005% (50 ppm) or better
Potentiostatic EIS Amplitude Resolution
Configuration dependent
Galvanostatic EIS Amplitude Resolution
0.000012% (0.12 ppm) of range
Max. EIS Frequency range
≥ 1 MHz, ≥ 1 kHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
