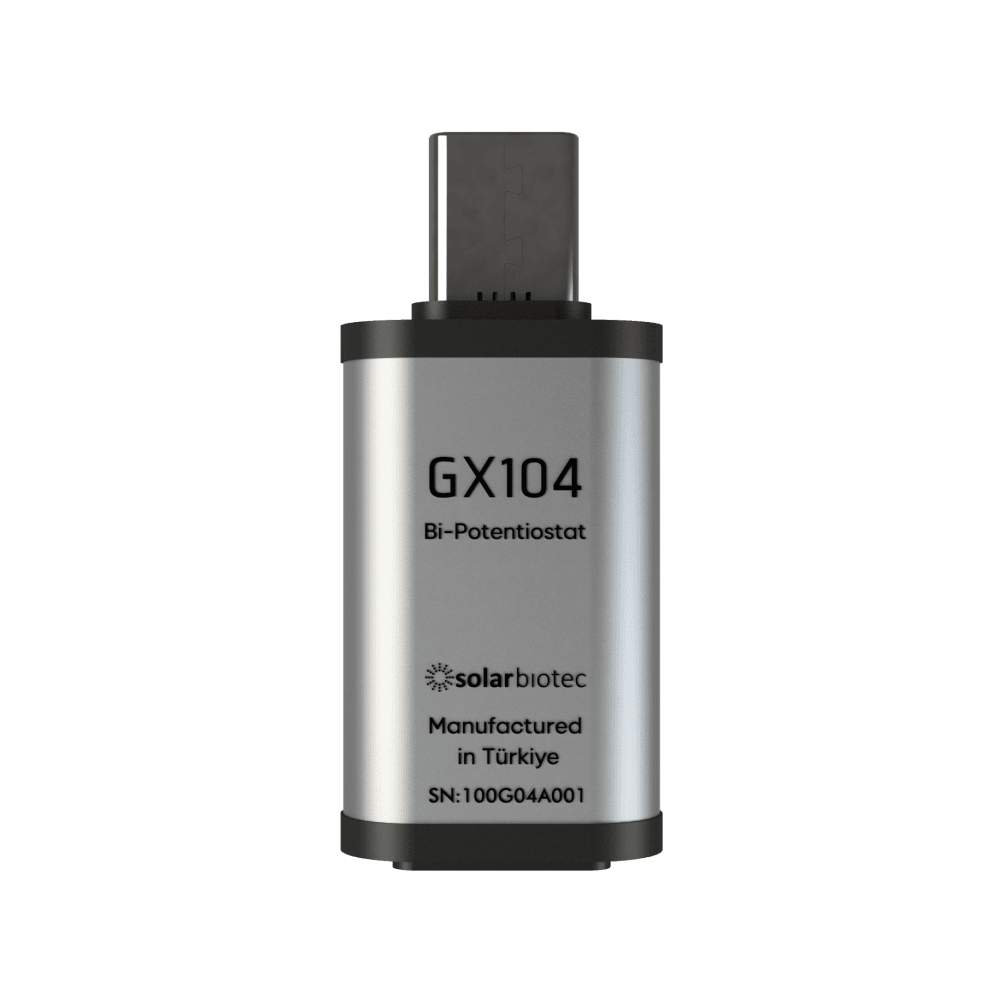

GX104 is the high resolution and high current member of the GX100 Super-compact Series devices with Bi-potentiostat capability. GX104 performs very similar to GX103 for Amperometric and Voltammetric DC electrochemical protocols but does not support Open Circuit Potential measurements. GX103 does not support Electrochemical Impedance Spectroscopy but has the Bi-potentiostat capability that allows to use with four electrode cells (WE1/WE2/RE/CE), as well as three electrode (WE/RE/CE) and two electrode (WE/RE-CE) setups.
Type
Potentiostat/Galvanostat, Bipotentiostat
Dimensions
39 x 18 x 9 mm3
Weight
6 gr
Form Factor
Super-compact
Channels
≥ 1
Cell connection
≥4 electrode
PC interface
USB
High Sampling Rate
1000 SPS
Software compatibility
PC, Android
Bi-Potentiostat WE2 Mode
Sent directly to GalvanoPlot
Sent directly to GalvanoPlot
duplicate, Bias to GND, Bias to WE1
Bi-Potentiostat Range
+2 V ±ΔE
Power (Max)
470 mW
Max. Potential range (±) / V
2
Voltage resolution (input)
1 mV
Min. Voltage resolution (input) / μV
1000
Required Compliance Voltage
≥ 2 V
Current range
5 ranges + autorange (12.5 mA, 1 mA, 75 µA, 5 µA, 250 nA)
Current Resolution (output)
0.002%, 1 pA @ 1000 SPS, 31 fA @ 1 SPS
Noise Level @1000SPS
-60 dB @ 1000 SPS, -110 dB @ 1 SPS
Minimum Noise @1000SPS
1.8 nA @ 1000 SPS, 20 pA @ 1 SPS
EIS Capability
No
