Low-current potentiostats & Galvanostats (≤100 mA)
Mini OrigaStat 055
Price: 1790 EUR

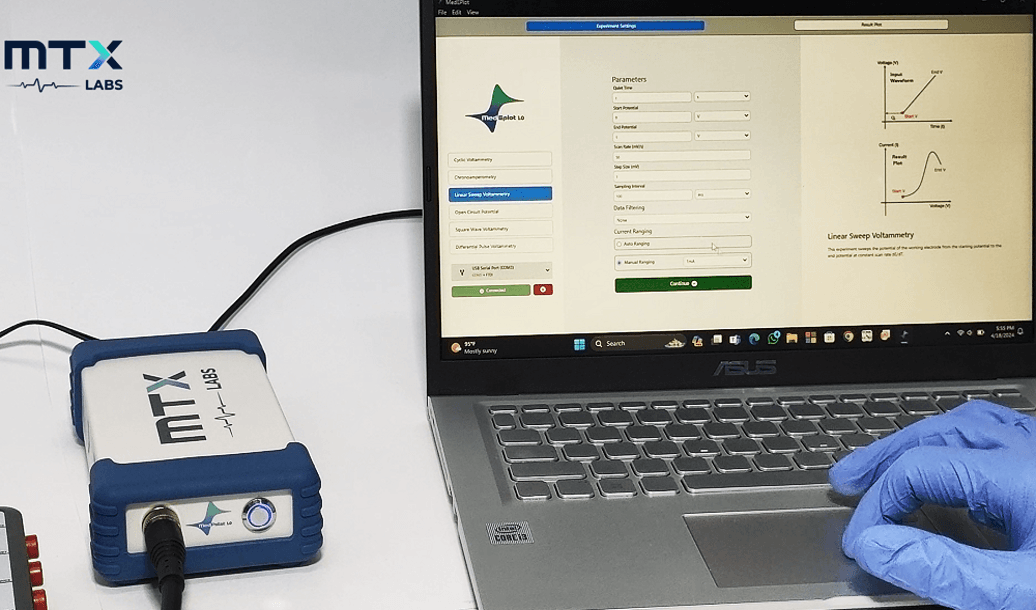

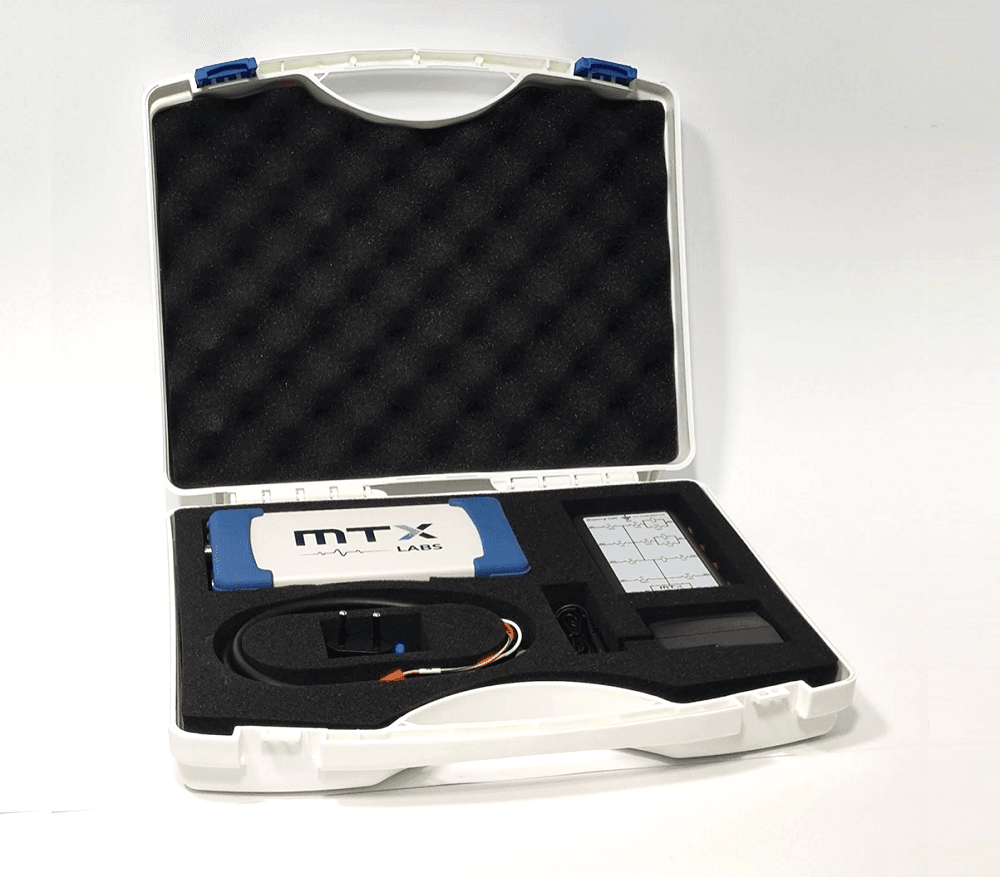

MedPstat 2.0 is a Handheld Affordable & Precision Potentiostat/Galvanostat, with a wide range of ± 4.8 V, 100 mA. Optimum for electrochemistry learning & research applications. Included is a high-quality dummy cell for learning & calibration applications and lifetime access to free software - MedEplot for PC, data acquisition & plotting.
Instrument Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
9.15 x 18.1 x 4.2
Weight
0.320 kg
PC Interface
USB
Power supply
100 – 240 VAC, 50/60Hz
Form Factor
Portable
Channels
≥ 1
Cell connection
4 electrode, 3 electrode
ADC resolution
16 bit
Ambient temperature when measuring
0 °C to +50 °C
Channel Cable Length
0.8 m
Input impedance
>10 TΩ
Input Bias Current
1 pA Max
Bandwidth
Up to 4 MHz
Max. data acquisition rate
1 KHz
Max. Potential range (±) / V
4.8
Voltage resolution (output)
152 µV
Min. Voltage resolution (output) / μV
152
Accuracy voltage (output)
0.1% of the setpoint, 1mV Max
Min. Accuracy voltage (output) / mV
1
Compliance voltage / ±V
8
Voltage resolution (input)
152 µV
Min. Voltage resolution (input) / μV
152
Accuracy voltage (input)
0.1% of the setpoint, 1mV Max
Min. Accuracy voltage (input) / mV
1
Max. current (output) / A
±100 mA
Current range
7 ranges
Number of current ranges
7
Current Resolution (input)
0.015% of range, 1.5 pA
Min. Current Resolution (input) / pA
1.5
Current Accuracy (input)
0.5% of the range, 50pA max
Min. Current Accuracy (input) / nA
0.05
Max. Current
≥ 100 mA, ≥ 1 mA
EIS Capability
No
Get pricing and product details from MTX Labs.
0 global ratings
Verified Identity
Every review undergoes an email verification process to ensure it originates from a verified industry professional.
Verified Purchase
We manually validate "Verified Purchase" claims by cross-referencing with supplier records or identifying the equipment in peer-reviewed scientific publications.
Transparent Publishing
All verified reviews, whether positive or negative, are published without bias as long as they comply with our community guidelines.
No reviews yet. Be the first to share your thoughts!
Share your experience with this product.
Slew rate
3.5V/µs (No Load)
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher
Required Compliance Voltage
≥ 5 V, ≥ 2 V
