OG Carbon New Silver
OG Carbon

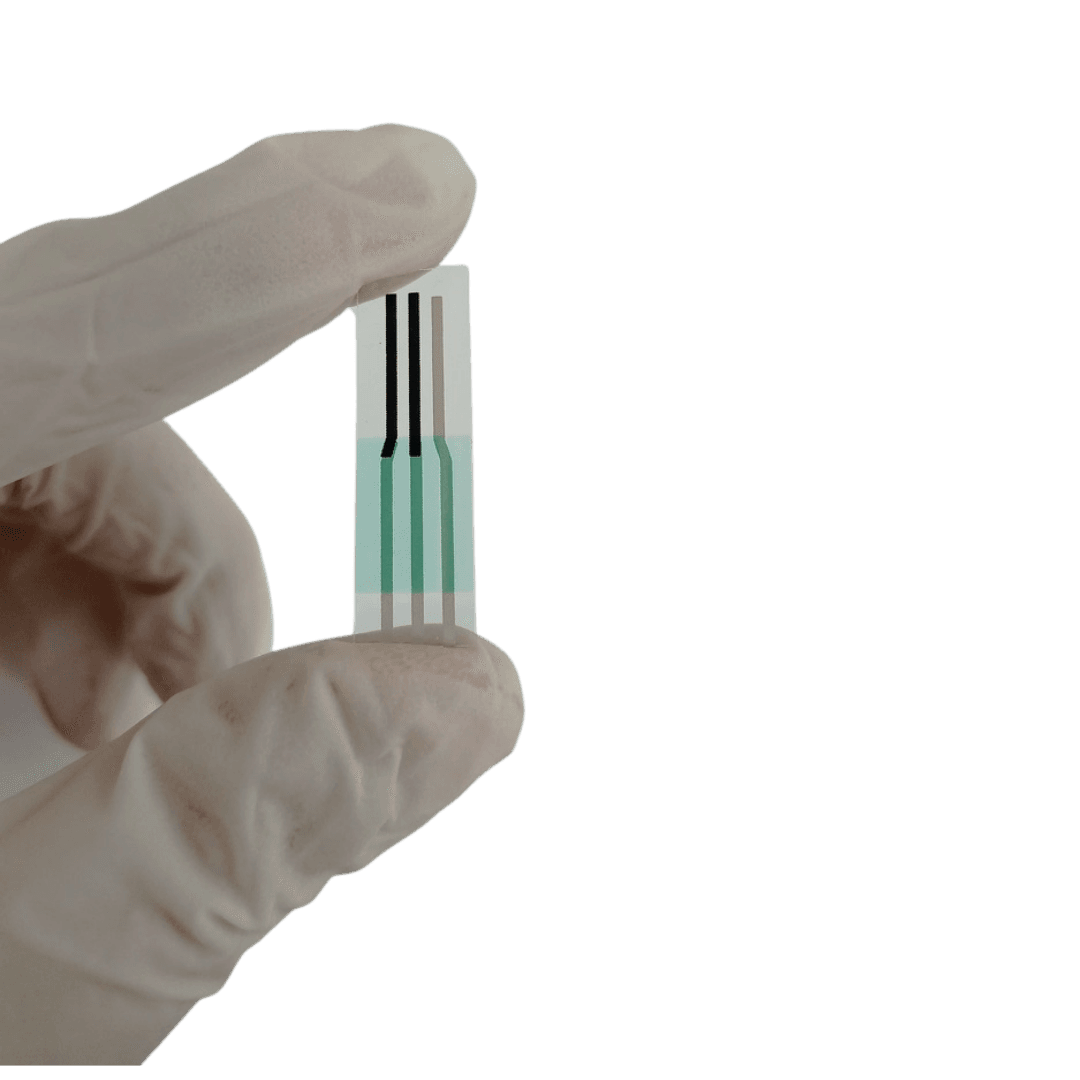

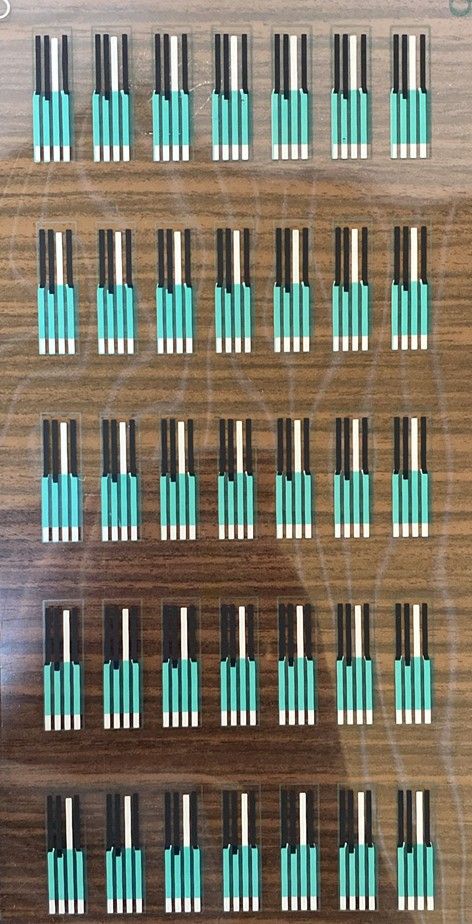

Custom-Made Screen Printed Electrode
Price: On Request
Description
Electrode Configuration: (Fully customizable electrode geometry)
- Number of working electrodes (single or multi-WE arrays)
- Working electrode shape, size, and layout
- Electrode spacing and alignment
Application-Oriented Design: (Electrode geometry can be specifically redesigned to ensure compatibility with)
- Laminar flow systems
- Microfluidic platforms
- Flow-through electrochemical cells
- In-line sensing and continuous monitoring applications
Substrate Dimensions: Fully customizable (length, width, and thickness adjusted based on application requirements)
Instrument Compatibility: Compatible with all potentiostat/galvanostat systems featuring a 2.54 mm connector interface, including but not limited to Autolab (Metrohm), Gamry, PalmSens, Ivium, CH Instruments, BioLogic, and equivalent commercially available systems.
Customization Capabilities
- Electrode geometry redesign
- Multi-working electrode (multi-WE) configurations
- Flow-optimized layouts for laminar and microfluidic systems
- Custom connector designs
- Application-specific surface modifications
Specifications
Miniaturized Electrochemical Platforms
WE Material
Carbon (customizable upon request)
CE Material
Carbon (customizable upon request)
RE Material
Silver (customizable upon request)
WE Form
Custom
WE Diameter (mm)
Custom
Substrate Material
PET
Substrate Thickness (um)
Custom
Platform Dimensions
Custom
Sheet Resistance (ohms/sq)
20 ohm/sq (at 25ºC)
WE geometric area (mm^2)
Custom
Carbon Thickness (µm)
25
Substrate Opacity
Transparent
Mechanical Property
Available in both flexible and non-flexible (rigid) configurations upon request.
Inter-Electrode Distance (mm)
Custom
Connection Pitch Distance (mm)
Custom
Connection Pad Surface
Silver (Ag)
Shelf Life
12 months (under appropriate storage conditions)
