Conductometer OCD218 - Simple Pack

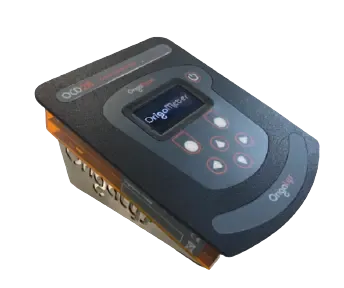

Conductometer OCD218

OrigaLys was founded by four R&D engineers from Radiometer company. The OCD218 conductometer is part of the OrigaMeter range.

• Sustainable and repairable
• Reliable and fast results
• Easy to use and simple connections
• Data transfers (Regressi, ExAo, Excel)
• Compatible with all conductivity cells
• Electrode Replatinable function
• 5-year instrument warranty

Easy to Use

Power on via the button to the right of the screen. The home screen shows time display. Pressing any key brings up the measurement screen in continuous mode. Horizontal arrow keys select Continuous or Auto measurement mode. Vertical arrow keys adjust the temperature value.

Data Transfer

• RS232: Connects to analog recorders and controls a stirrer. Prints calibration results via HyperTerminal.
• Analog output: Connects to analog recorders and controls a stirrer.
• USB: Controls the conductometer and transfers data in real time.

Connecting the Electrodes

• Conductivity cell connects via Mini-DIN 6 socket (cord ref. AR01635CIAL)
• Temperature probe connects via RCA/CINCH input (ref. OGT-103-7-5-CINCH-CIAL)
• The basic OCD218 operates in floating mode. Connect to a grounded device (printer, recorder or PC) for earth connection.
