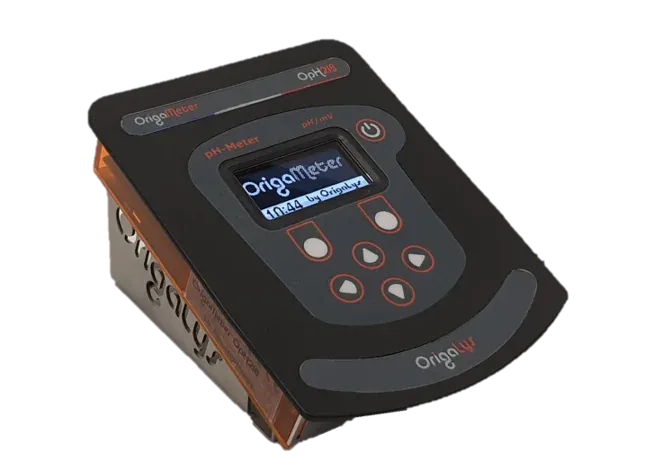

pH-meter for Industry - OpH228
OrigaLys


pH-meter designed for teaching and laboratory use by a company founded by former Radiometer engineers. Interface fully compatible with old Radiometer pH-meters.
Calibration on 1 to 3 points between two sets of buffers (IUPAC or 4-7-10). Free mode available for manual buffer adjustment. Previous calibration settings can be reused.
Calibration settings stored in instrument. Export to .txt file via USB. Compatible with almost all Ex.A.O. systems:
Manual mode (continuous reading with stability indicator) or automatic mode (freezes at 100% stability).
Single or combined electrode via BNC plug. Reference electrode via 4 mm banana plug. Temperature sensor via CINCH input. Manual temperature entry possible.
pH Measure Range
-9 to 23 pH
mV Measure Range
±2000 mV
°C Measure Range
-10°C to 110°C (manual or automatic)
pH Resolution
±0.01 pH
mV Resolution
±0.1 mV
°C Resolution
±0.1 °C
Calibration
1 to 3 buffers
Calibration Buffer Sets
IUPAC or 4-7-10
Electrode Acceptance Criteria - Slope
95 to 102%
Electrode Acceptance Criteria - Zero-pH
5.80 to 7.50 pH
Sent directly to OrigaLys
Sent directly to OrigaLys
Measurement Mode
Manual, Automatic
Data Transfer
USB / RS232 / Analog
Electrode Connections
BNC / 4 mm banana / CINCH
