Squidstat Cycler - Base Model
Price: On Request
Description

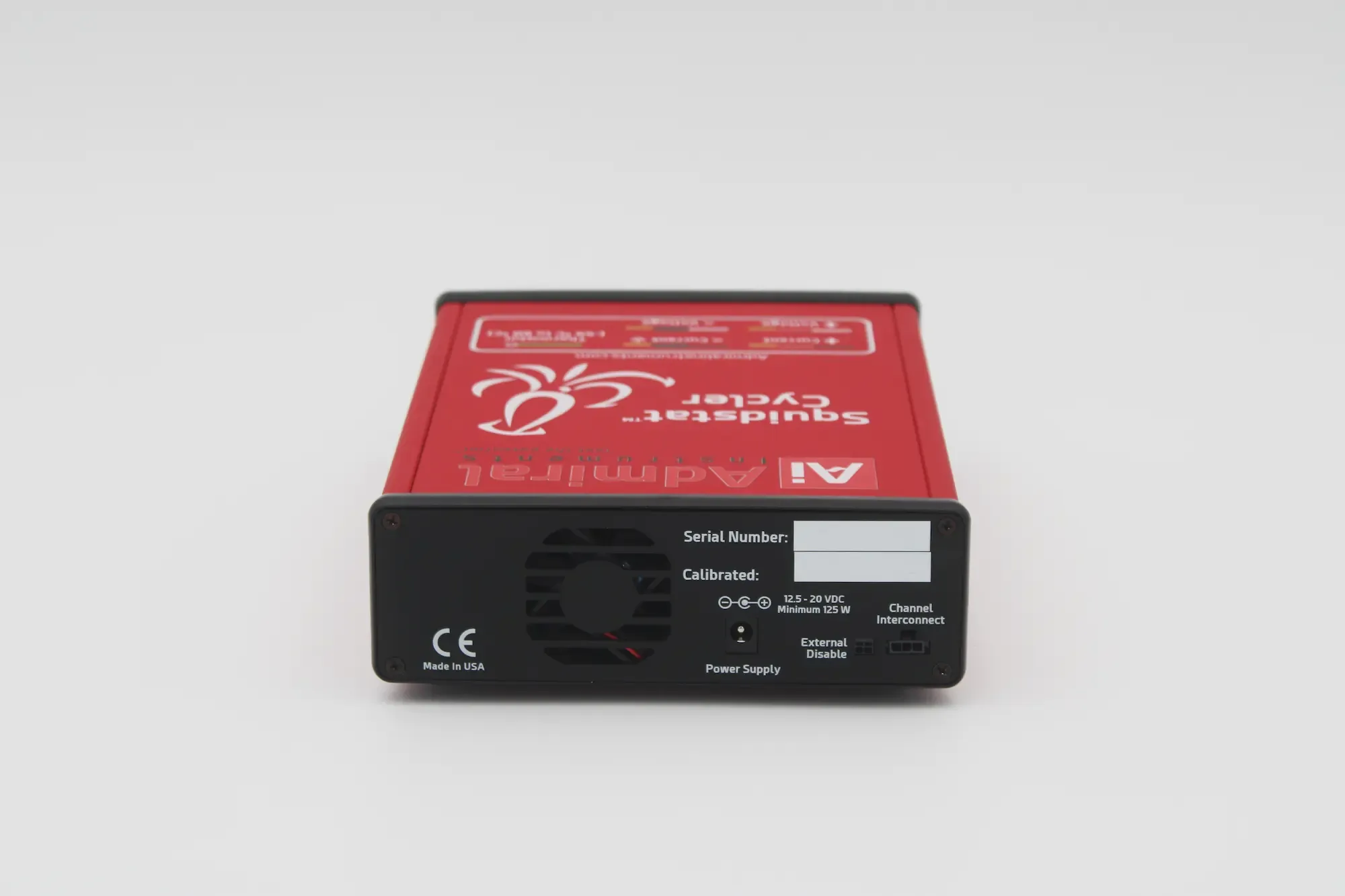

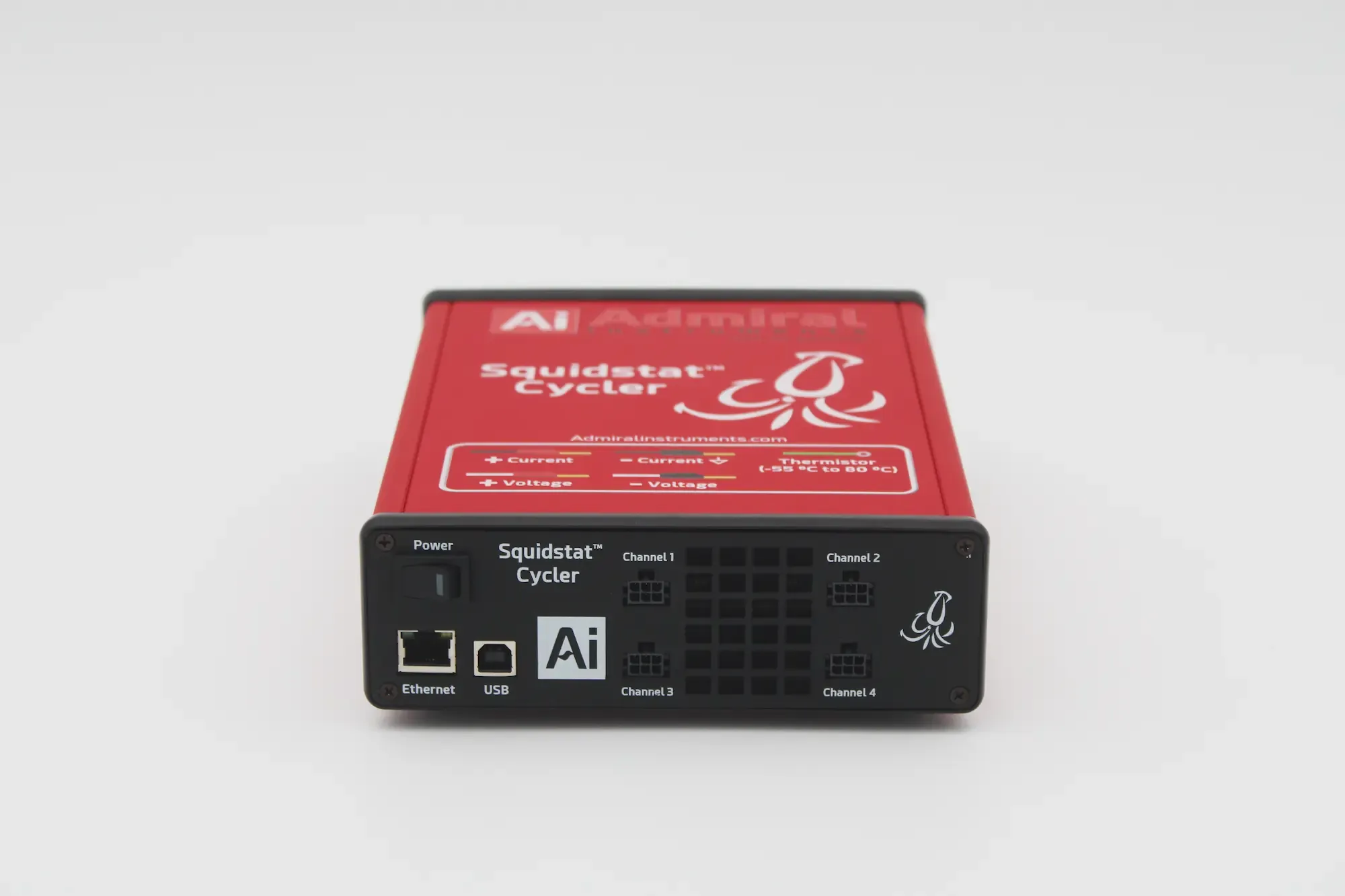

Squidstat Cycler - Base Model Complete Setup
Four-channel battery cycler with FRA:
- Current range: ±5 A max
- Voltage scan range: 0-5 V
- EIS frequency range: 10 μHz - 10 kHz

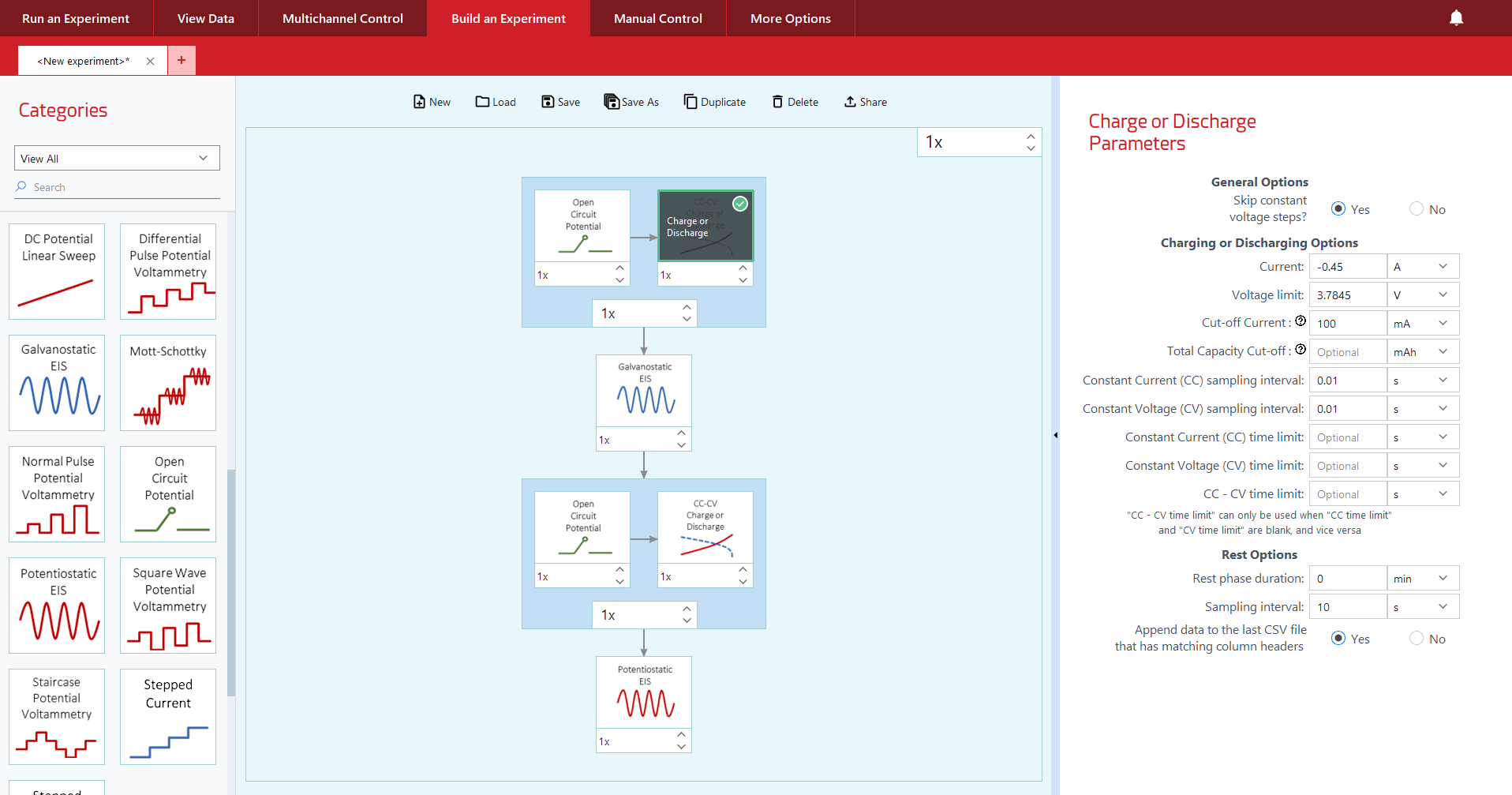

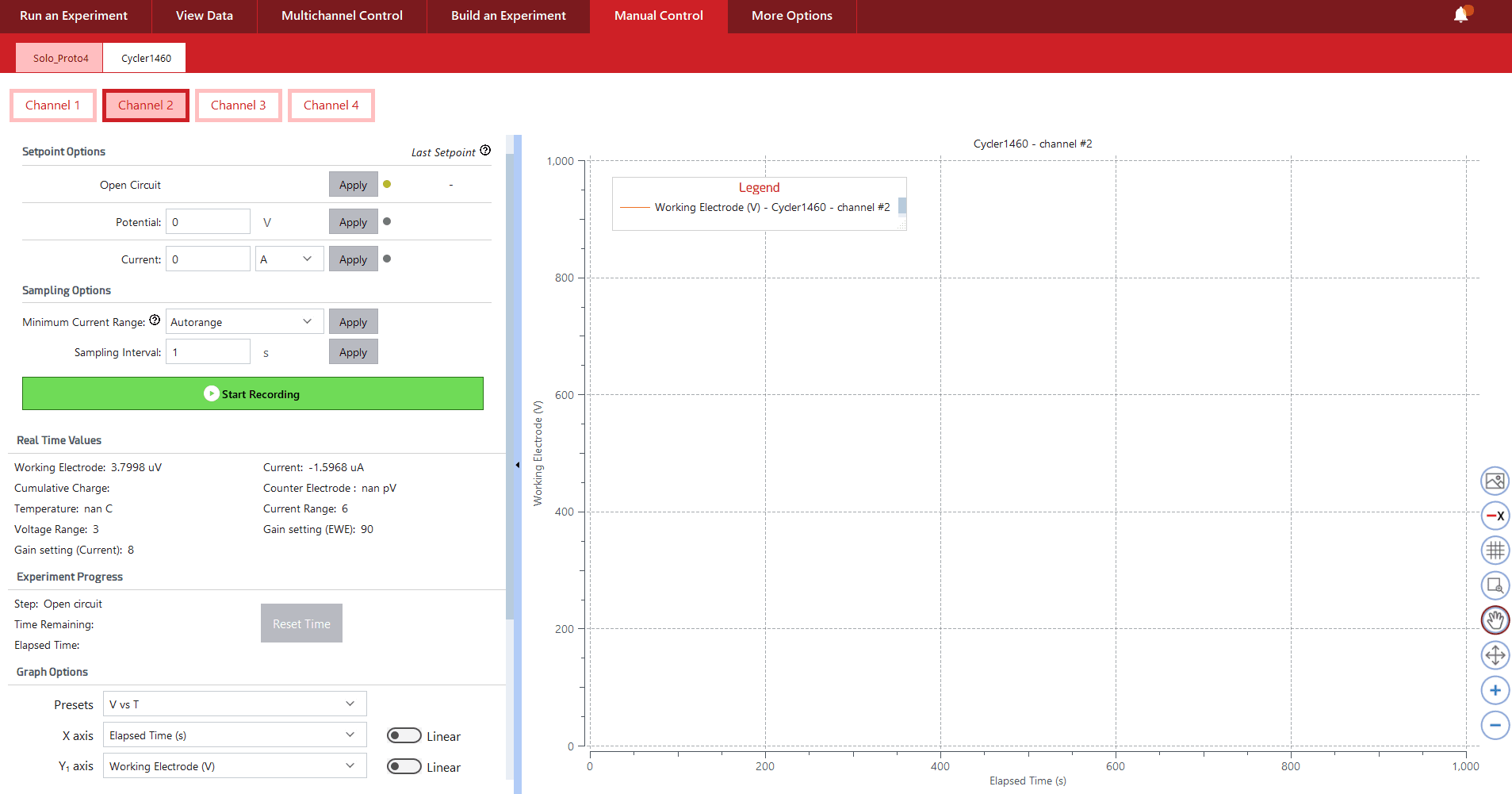

- Compatible with Windows, MacOS, and Ubuntu via the Squidstat User
- Interface software and Application Programming Interface

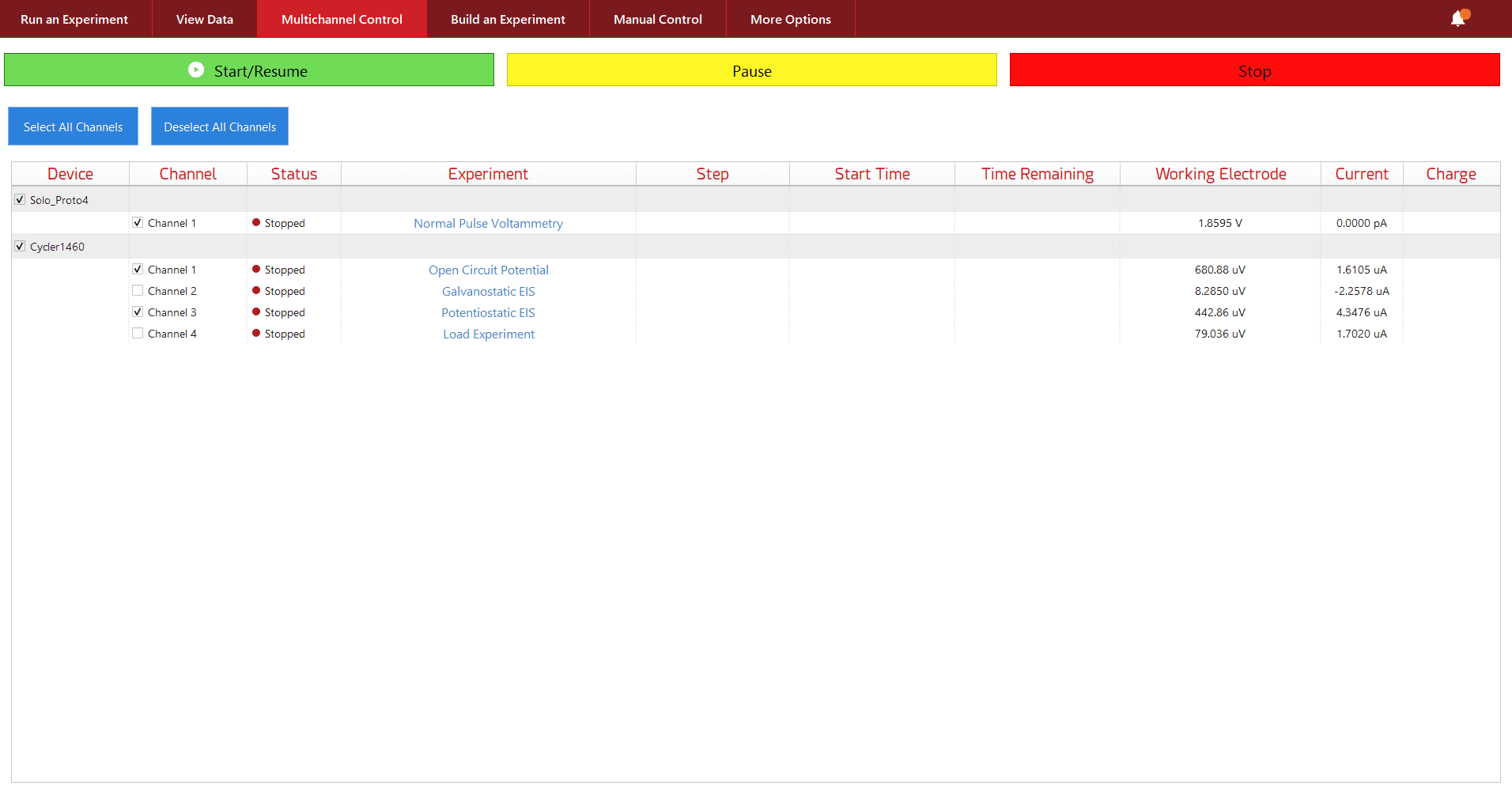

- Multiple units can run simultaneously with other Squidstat models
- The current range can be increased up to ±20 A by paralleling the channels
- Made in USA

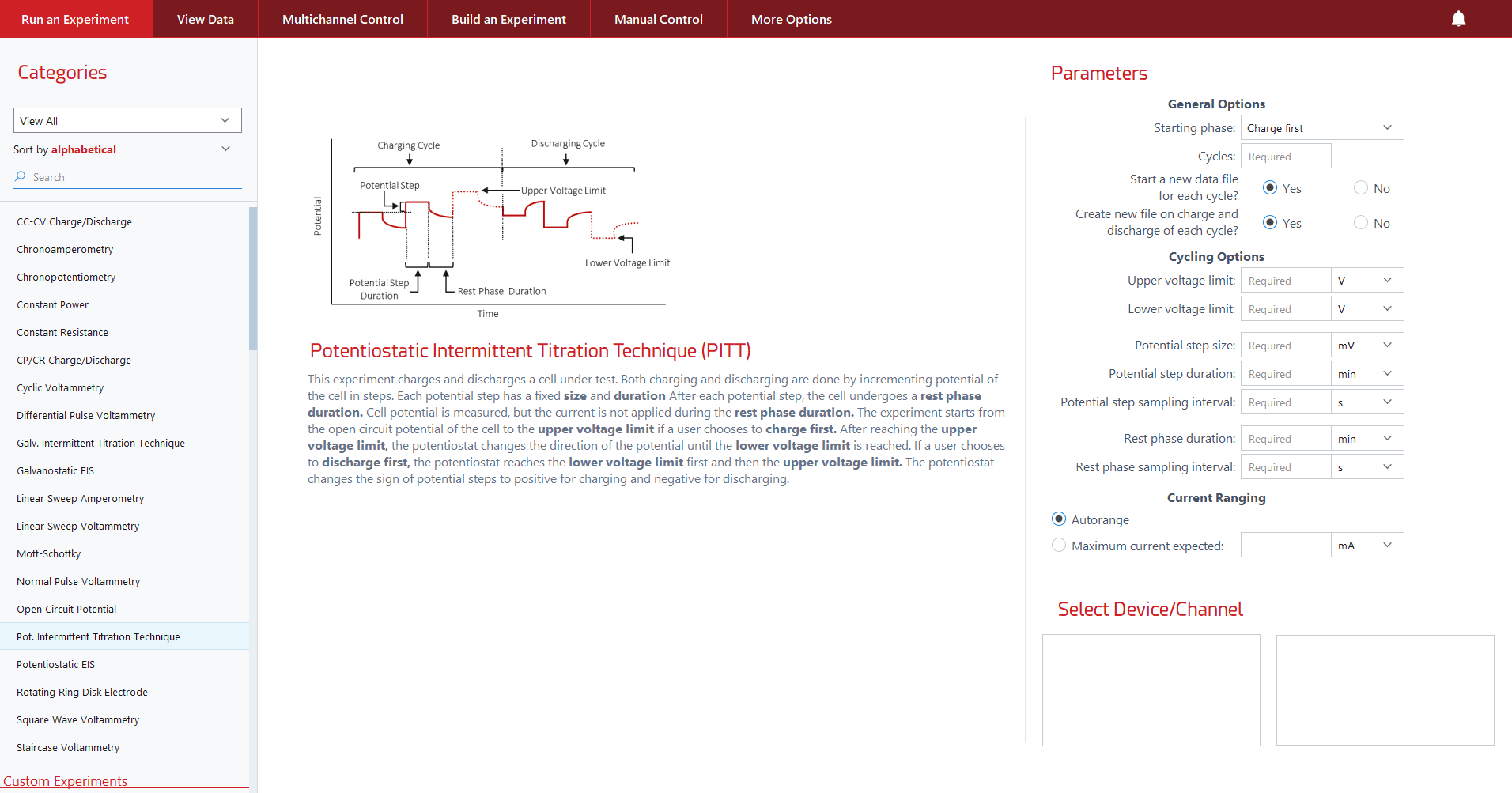

This system supports multiple electrochemical experiments. Please contact the vendor for the complete and up-to-date list of supported experiments.
Included:
- Four 1-meter Squidstat Low Current Channel Cable – Cycler
- One Power Source Cable (Country based)
- One USB Cable
- Eight Alligator Clips – 2 mm – Red
- Eight Alligator Clips – 2 mm – Black
Specifications
General
Type
Battery cycler
Dimensions - WxDxH / cm
17 x 23 x 6
Weight
1 kg
PC Interface
USB
Power supply
180 – 264 VAC, 47/63Hz
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 4, ≥ 2, ≥ 1
Cell connection
4 electrode, 3 electrode
Potentiostat modes
Potentiostatic, Galvanostatic, FRA
ADC resolution
24 bit
Ground reference
Ground only
Shortest DC data recording interval
188 μs
Shortest DC data hardware sampling interval
16 μs
Memory
No data backup
Ambient temperature when measuring
0 °C to +40 °C
Channel Cable Length
1 m
Input impedance
1.76 Mohm
Input Bias Current
2.84 μA
Digital-to-Analog Converters
24 bit
Potentiostat rise/fall time
20 ms Typical (10-90%, 0.5- 4.5 V)
Temperature Measurement Included
-55°C to 80°C Thermistor per channel (± 1.25°C accuracy)
Potentiostatic
Max. Potential range (±) / V
5
Voltage resolution (output)
0.000006% (0.06 ppm) of range, 320 nV min
Min. Voltage resolution (output) / μV
0.32
Accuracy voltage (output)
± 500 μV of setppoint
Compliance voltage / ±V
10
Voltage resolution (input)
0.000006% (0.06 ppm) of range, 320 nV min
Min. Voltage resolution (input) / μV
0.32
Accuracy voltage (input)
± 500 μV Initial, ± 0.015% of measurement per year
Voltage Ranges
1 range, [0 - 10 V]
Number of Voltage Ranges
1
Slew rate
50 V/s (0 V to +1 V) - (1 kΩ load)
Min/Max Scan Rate
320 nV/s minimum & 16 V/s maximum with 10 mV sampling
Smallest Potential Step for Sweep Voltammetry
0.000006% (0.06 ppm) of setpoint/measured, 320 nV min
Smallest Pulse Width
1 ms
Square Wave Voltammetry Max Frequency
6 Hz (0 V to +1 V)
Time Resolution
< 100 μs
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher
Required Compliance Voltage
≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Current range
2 ranges, [500 mA and 5 A]
Number of current ranges
2
Current Resolution (output)
0.000012% (0.12 ppm) of range, 600 nA/60 nA
Current Accuracy (output)
0.1% of range ± 1.50 mA/250 μA
Current Resolution (input)
0.000012% (0.12 ppm) of range, 600 nA/60 nA
Current Accuracy (input)
0.1% of range ± 1.50 mA/250 μA
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 10 kHz
Max. EIS frequency range / MHz
0.01
Min. EIS frequency range / µHz
10

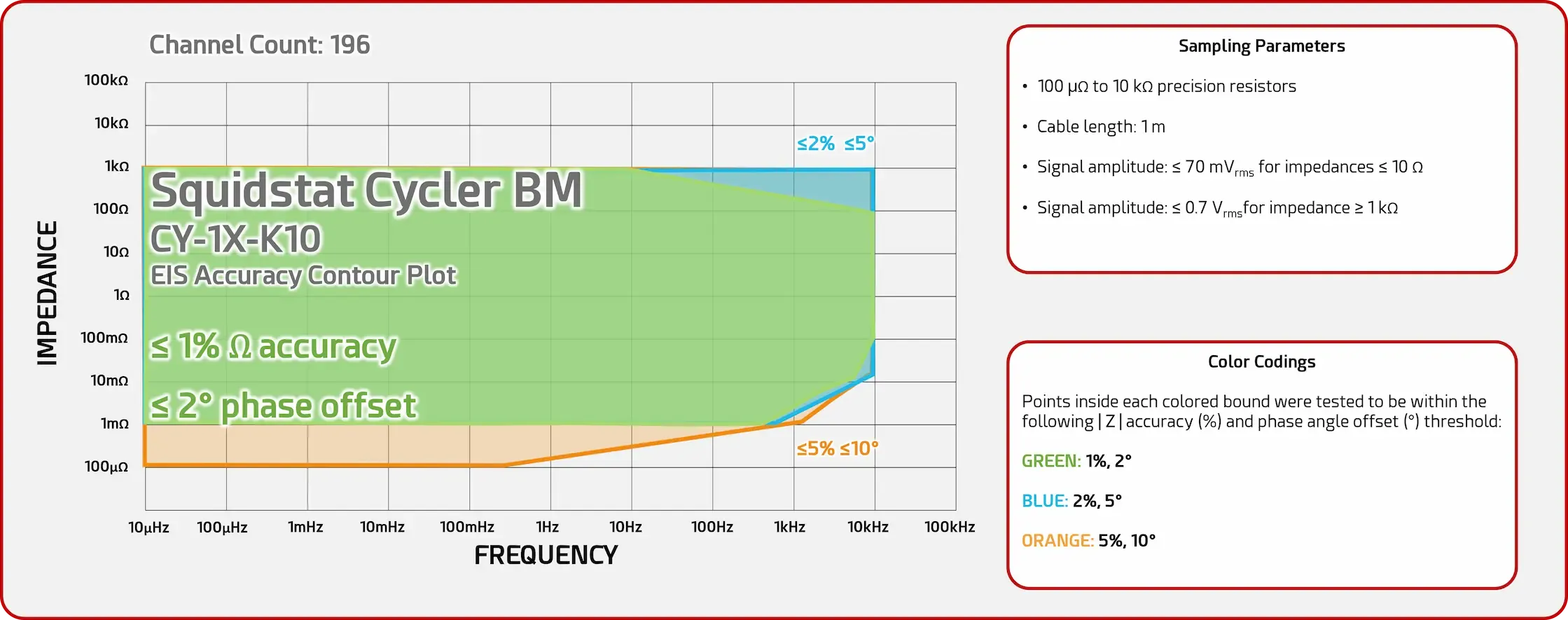

Accuracy Contour Plot
See images
EIS Amplitude resolution
24-bit resolution
AC frequency accuracy
0.005% (50 ppm) or better
Potentiostatic EIS Amplitude Resolution
0.000006% (0.06 ppm) of setpoint/measured, 320 nV min
Galvanostatic EIS Amplitude Resolution
0.000012% (0.12 ppm) of range, 600 nA/60 nA
