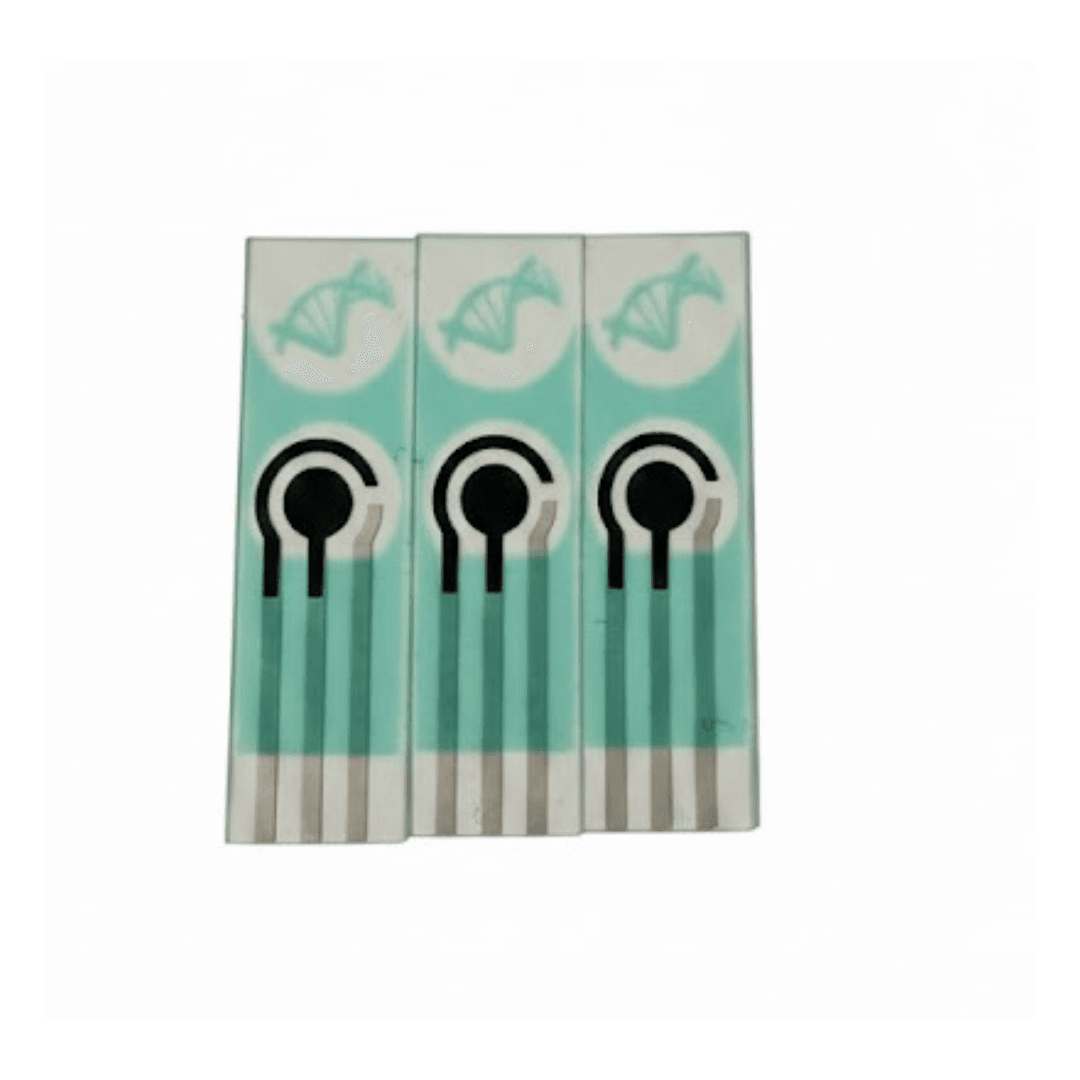

Screen Printed Carbon Electrode (Not Flexible)
Screen Printed Carbon Electrode (Not Flexible)
Description
Electrode Configuration: Working Electrode (WE), Counter Electrode (CE), Reference Electrode (RE)

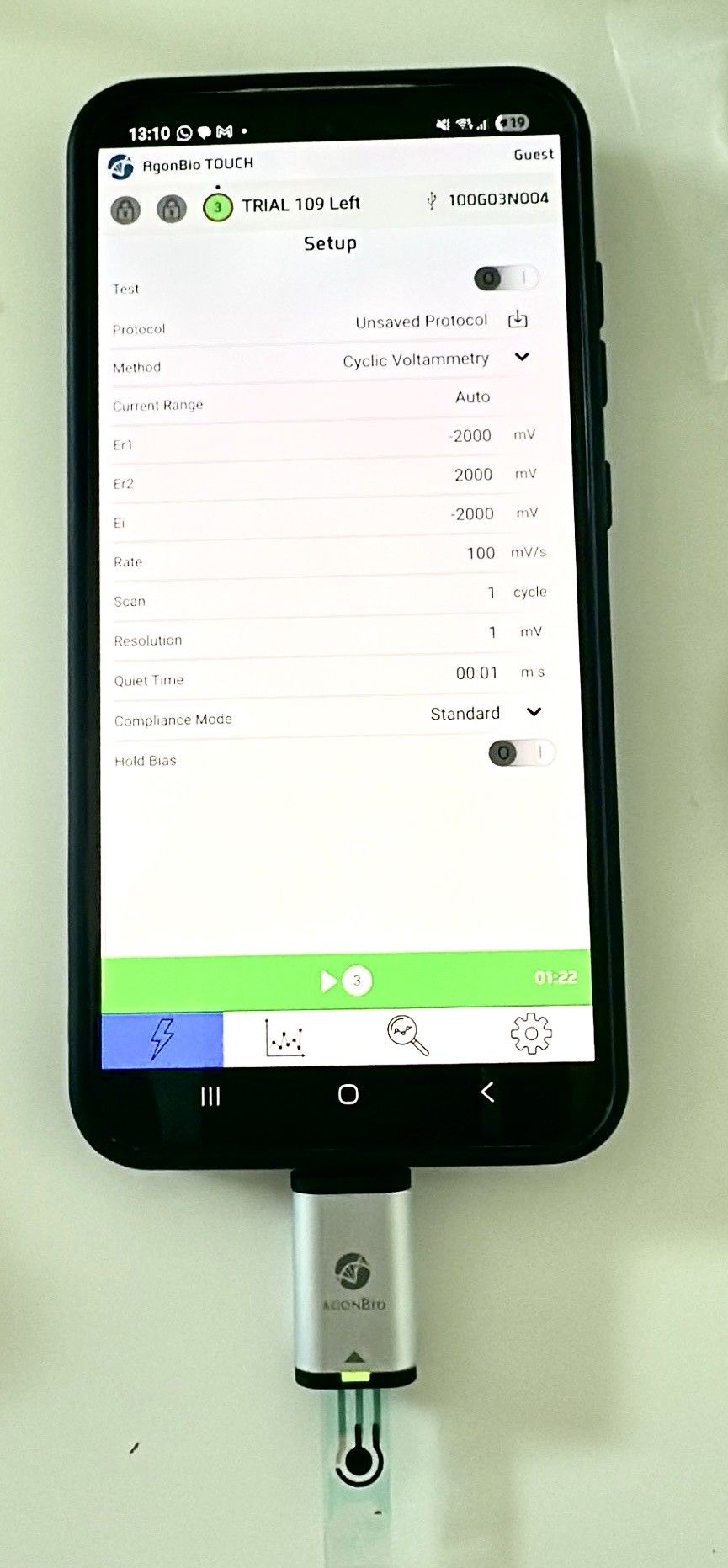

Instrument Compatibility: Compatible with all potentiostat/galvanostat systems featuring a 2.54 mm connector interface, including but not limited to Autolab (Metrohm), Gamry, PalmSens, Ivium, CHI Instruments, BioLogic, and equivalent commercially available systems
Specifications
Miniaturized Electrochemical Platforms
WE Material
Carbon
CE Material
Carbon
RE Material
Silver (Ag)
WE Form
Circular
WE Diameter (mm)
4
Substrate Material
PET
Substrate Thickness (µm)
500
Platform Dimensions
10 mm x 33.5 mm x 0.5 mm
Sheet Resistance (ohms/sq)
20 ohm/sq (at 25ºC)
WE geometric area (mm^2)
12.57
