Electrodialysis Cells
Y-Cell for BMED: Eight-Port Ion Separation Flow Cell
Price: from 5545 EUR
A modular electrodialysis flow cell for membrane testing, ion-selectivity studies, limiting-current measurements and separation studies. Configurable process channels, membrane arrangements and electrode assemblies allow the cell to be adapted to the intended electrodialysis experiment and separation process.
Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.
Applications
Electrodialysis
Optional accessories
Reference electrode integration (on request), Integrated thermostat channel (on request)
Customizable Parameters
Geometry, Thickness, Fluid connector size, Fluid connector material, O-ring material, Materials, Coatings
Typical Lead Time
1–3 months (indicative / configuration-dependent)
Active Area Cell
25 cm²

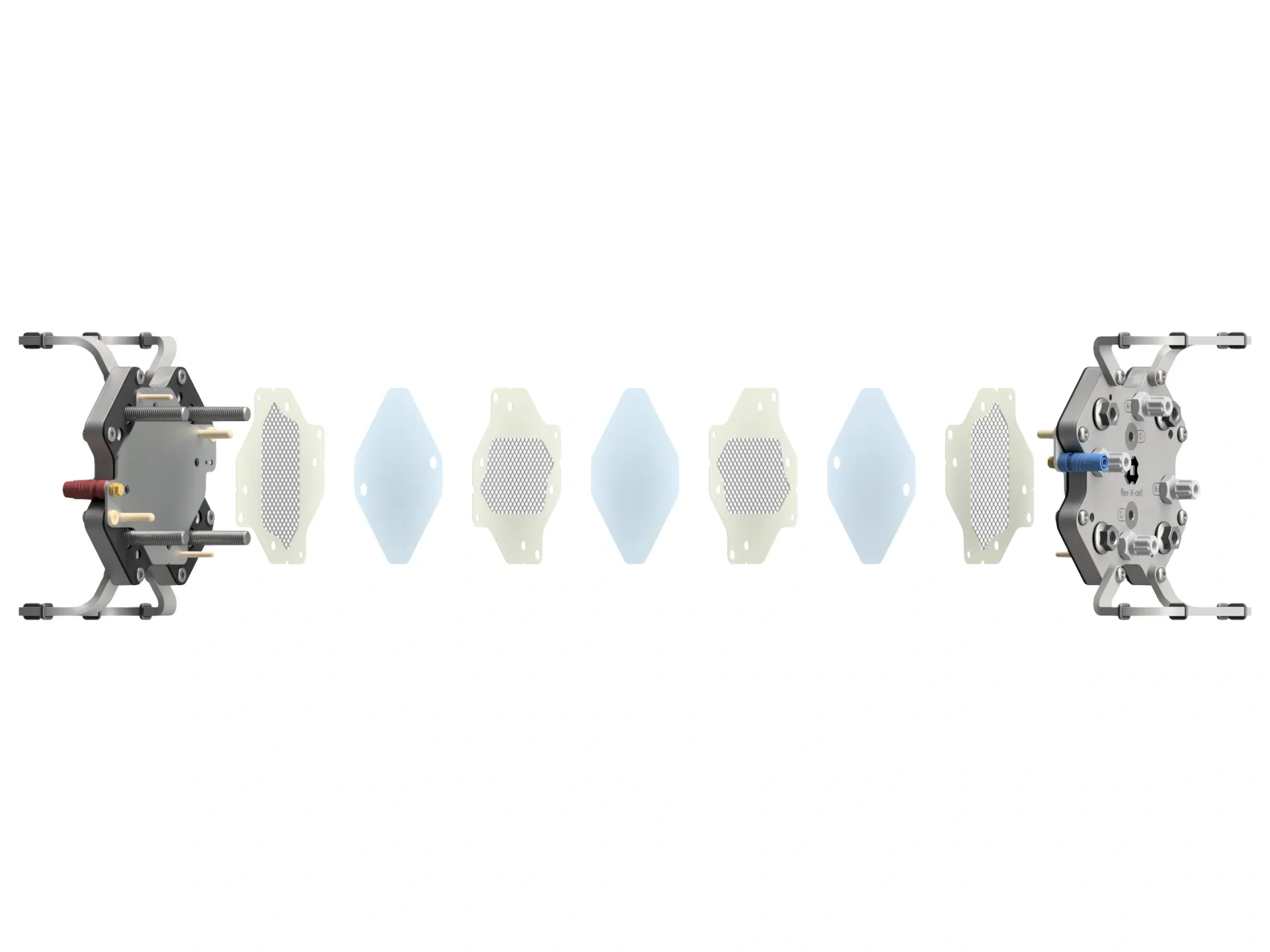

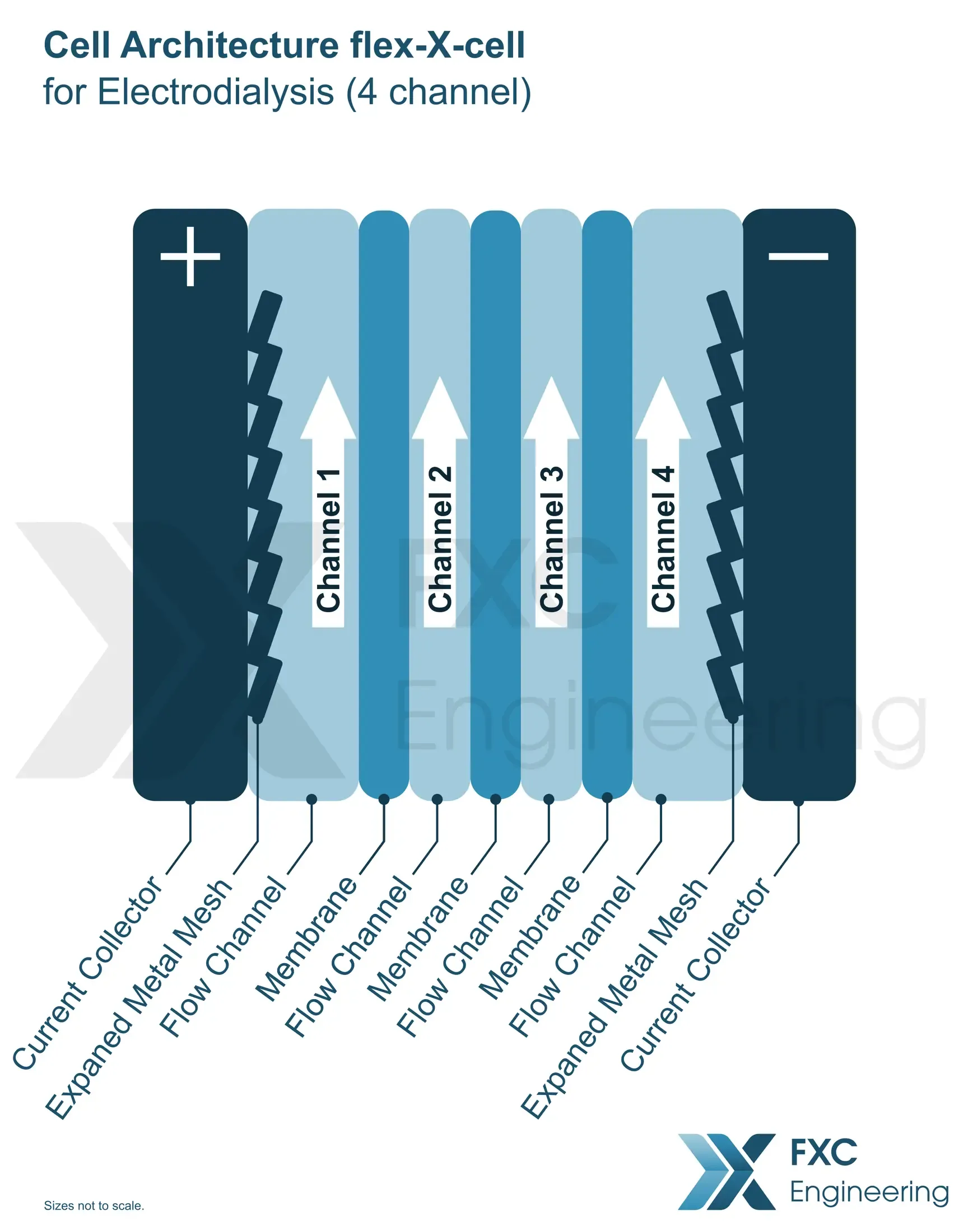

Chamber Configuration
4-channel (standard) / 3-channel (configurable)
Anode Current Collector / Electrode
Ti sheet + welded Ir-MMO Ti mesh (standard), Ti sheet with Ir-MMO coating (on request)
Cathode Current Collector / Electrode
Stainless-steel sheet + welded stainless-steel mesh (standard), Stainless-steel sheet (on request), Ti sheet (on request), Graphite plate (on request), Ti sheet + welded Pt-coated Ti mesh (on request)
Max. Operation Pressure
Unpressurized operation / <0.5 bar (gauge)
Maximum Operating Temperature
80 °C
Cell External Dimensions
Approx. 145 × 170 × 190 mm (W × D × H)
Electrical contact
4 mm banana socket, or bolted cable lug directly to the current collector
Fittings and Tubing Connection
For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request
Fluid Connector Material
PP (standard) / PFA or PTFE (on request)
Sealing O-ring material
EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)
End Plates Material
Stainless Steel
Anode Flow Frame Thickness
2.0 mm (standard / custom thickness on request)
Anode Flow Frame Material
PP/EPDM
Cathode Flow Frame Thickness
2.0 mm (standard / custom thickness on request)
Cathode Flow Frame Material
PP/EPDM
Membrane Frame Thickness
No membrane frame (full-size membrane) (standard), Membrane frame, 50 µm (on request), Membrane frame, 100 µm (on request), Custom (on request)
Process Channel Thickness
0.5 mm with mesh spacer (standard), 1.0 mm with mesh spacer (on request), 2.0 mm with mesh spacer (on request), Custom thickness (on request)
Process Channel Frame Material
PP/EPDM
Included Accessories
Fittings, O-rings, Positioning pins, Screws, Handles
Not Included
Membranes, Electrodes
Wetted Materials
PP/EPDM, PP mesh spacers, selected electrode (default: Ti/Ir-MMO anode and stainless-steel cathode), PP fluid connectors, and selected O-ring materials
Gaskets/Spacers Material
Polypropylene (PP)
Electrical insulation
Insulation layers
