Rotating Ring Disc Electrode System - IPS
Rotating Ring Disc Electrode System - IPS
Description

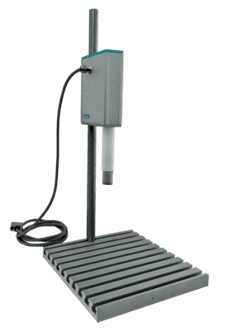

The rotating ring disc electrode system is part of our portfolio for more than 30 years. The system consists of a rotating unit and a speed controller. Electrochemical cells and electrodes are also available in various designs.
Specifications
General

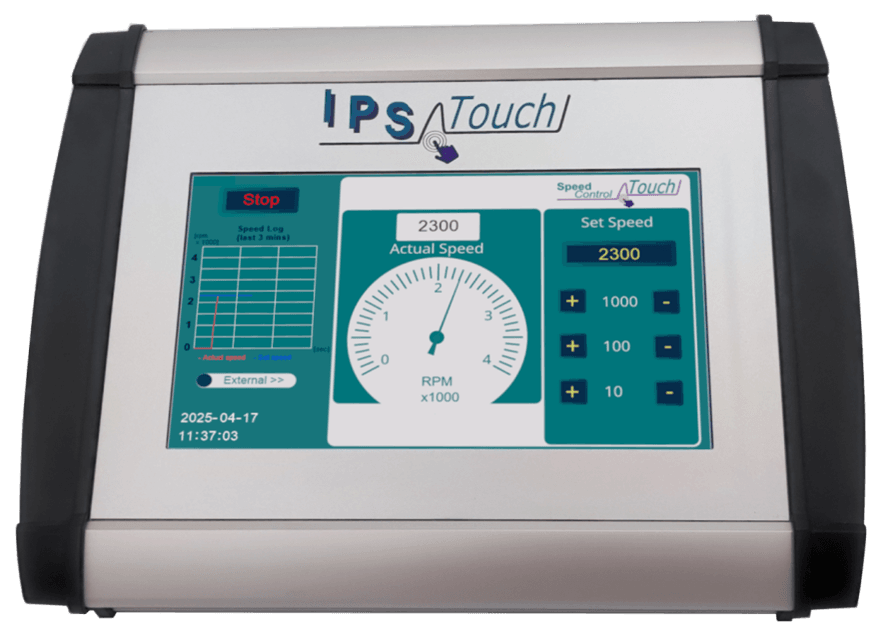

Speed controller
Operation via 7’’ touch display & computer control possible
rpm
From 0 to 4000 rpm
Contact noise
Mercury contacts for low-noise operation (2 x 1 A)
Available tips - active material
Platinum, Glassy Carbon
Available diameters - active material
50 mm2 - 8 mm diameter or 19.63 mm2 - 5 mm diameter

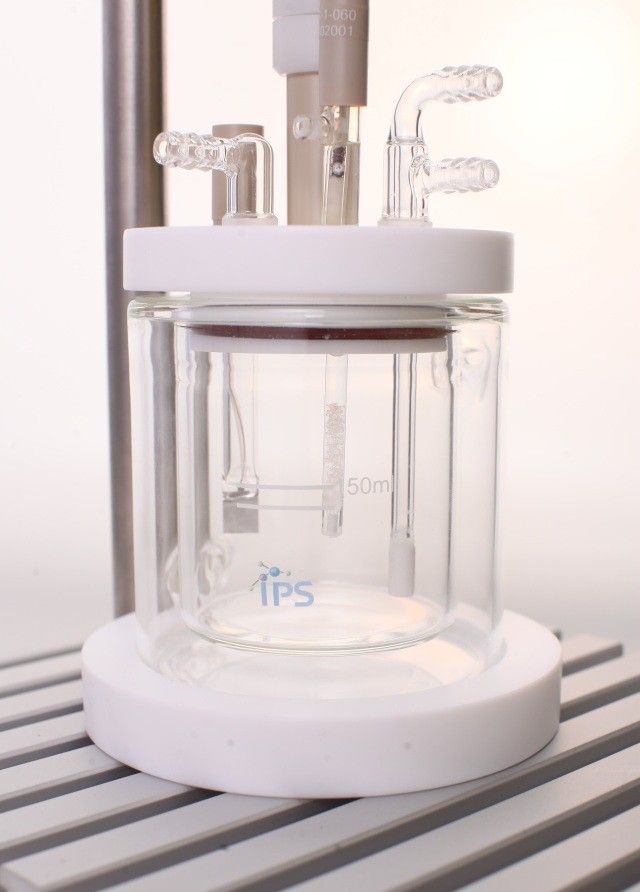

Included electrochemical cell
Vessel volume 100-500 mL, Vessel: glass, Mounting material: Stainless steel, Body material: Polypropylene, Heatable: Yes, Gas connection: Yes
Included electrocdes (CE and RE)
Reference: Ag/Ag/Cl (Kalomel), Counter: Carbon
