Nano ISE for Fluoride (F⁻) — OD 2.5 mm
Nano ISE for Fluoride (F⁻) — OD 2.5 mm
Description

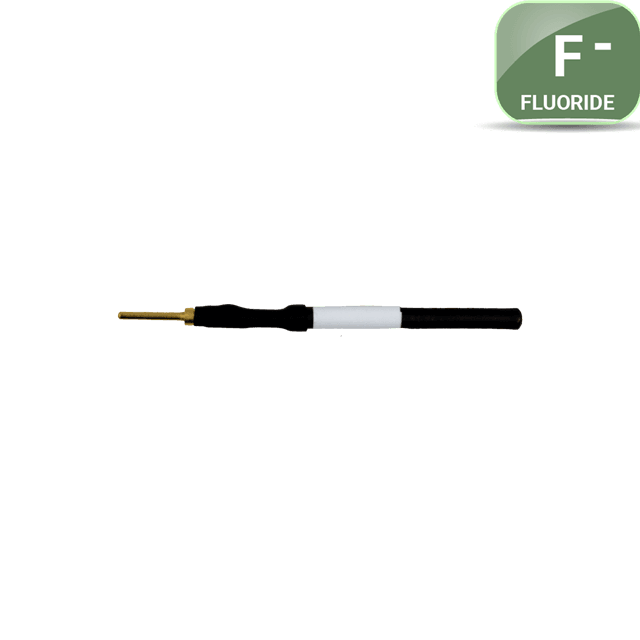

Nano half-cell Ion Selective Electrode for Fluoride (F⁻) measurement. Ultra-compact format with OD 2.5 mm, designed for use with the Nano ISE probe and Imacimus 2 analyser.
Key Specifications
- Electrode type: Nano ISE, half-cell
- Outer diameter: 2.5 mm
- Nernstian slope: -54 ± 5 mV/decade
- Concentration range: 1 – 19000 mg/L
- pH operating range: 4 – 8
- Response time: < 60 s
- Accuracy: ±4%
- Repeatability: ±10%
- Main interferences: Only hydroxide (OH⁻) affects the measurement. pH must be kept below 8. Use TISAB buffer for real samples.
- Compatible with: Imacimus 2 meter, Nano ISE probe (CC-1BNC-SC2 cable required)
Specifications
Ion-Selective Electrodes (ISE)
Measured Ion
Fluoride (F⁻)
Electrode Format
Nano ISE (OD 2.5 mm)
Outer Diameter (mm)
2.5 mm
Nernstian Slope (mV/decade)
-54 ± 5
Concentration Range (mg/L)
1 – 19000 mg/L
ISE pH Operating Range
4 – 8
Response Time (s)
< 60 s
ISE Accuracy
±4%
