OrigaSens - Selective Electrode Fluoride
OrigaSens - Selective Electrode Fluoride
Description

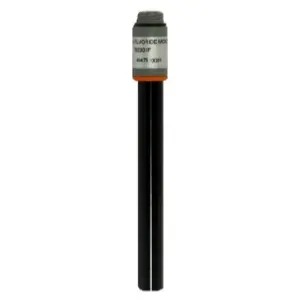

OrigaSens - Selective Electrode Fluoride
Ion-selective electrode for the measurement of F- ions in aqueous solution. Part of the OrigaSens ISE range, compatible with mV-meters and pH-meters equipped with a high-impedance mV input.
- Ion: F-
- Concentration range: 0.01 - 20000 ppm
- Operating temperature: 0°C to 60°C
- pH range: 5-11
- Membrane/Sensor type: Solid-state
- Grinded: No
- Connection: Screw Head S7
- Diameter: 12 mm
- Length: 103 mm
- Similar to: ISE25F
- Availability: Available in 21 days
Specifications
Ion-Selective Electrodes (ISE)
Measured Ion
F⁻
Concentration Range (ppm)
0.01 – 20 000 ppm
Electrode Operating Temperature Range
0°C to 60°C
pH Operating Range
5 – 11
Membrane / Sensor Type
Solid-State
General Electrode
Electrode Diameter (mm)
12 mm
Electrode Length (mm)
103 mm
Electrode Connection
Screw Head S7
Electrode Format
Mono-ion
