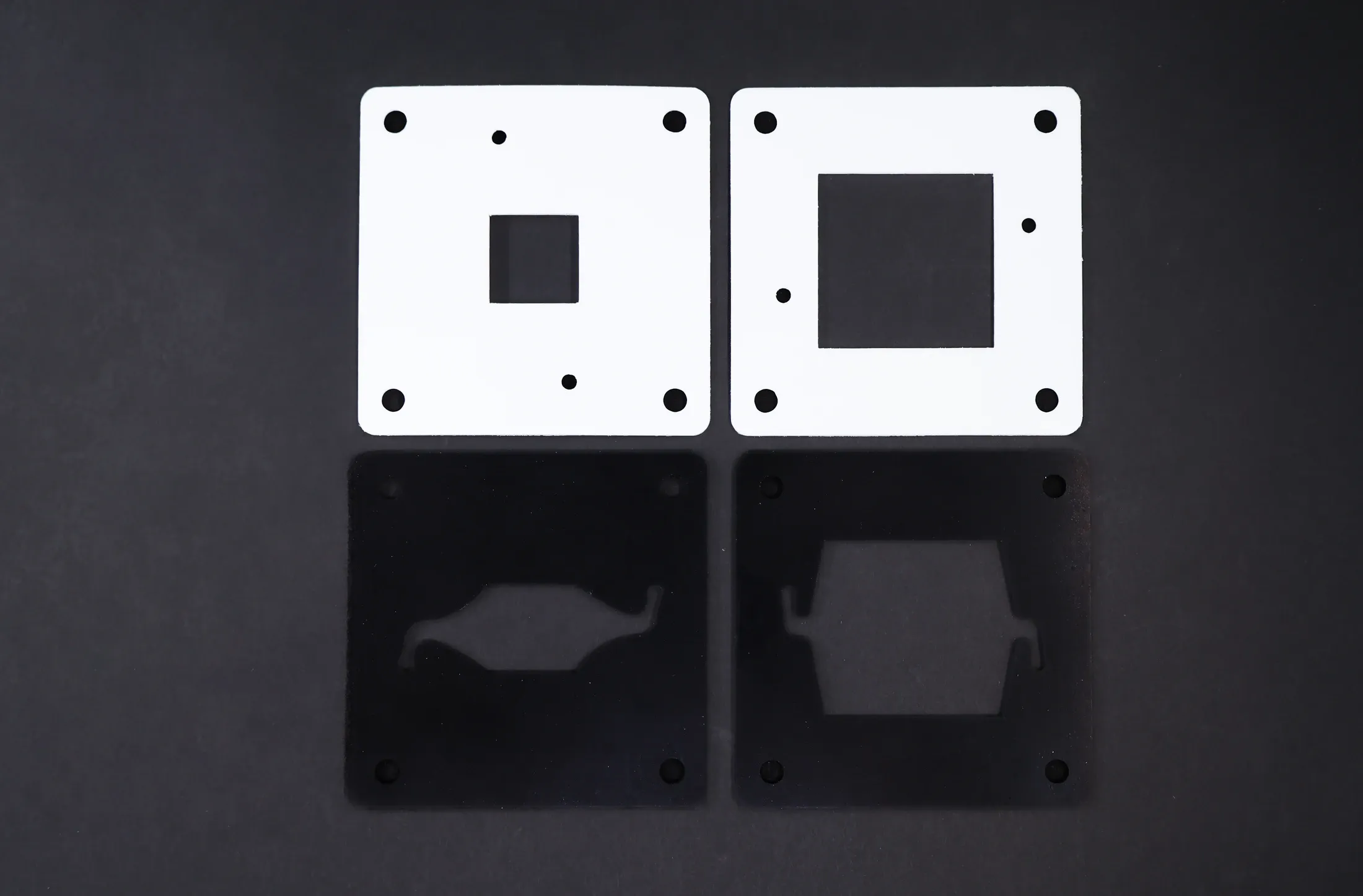

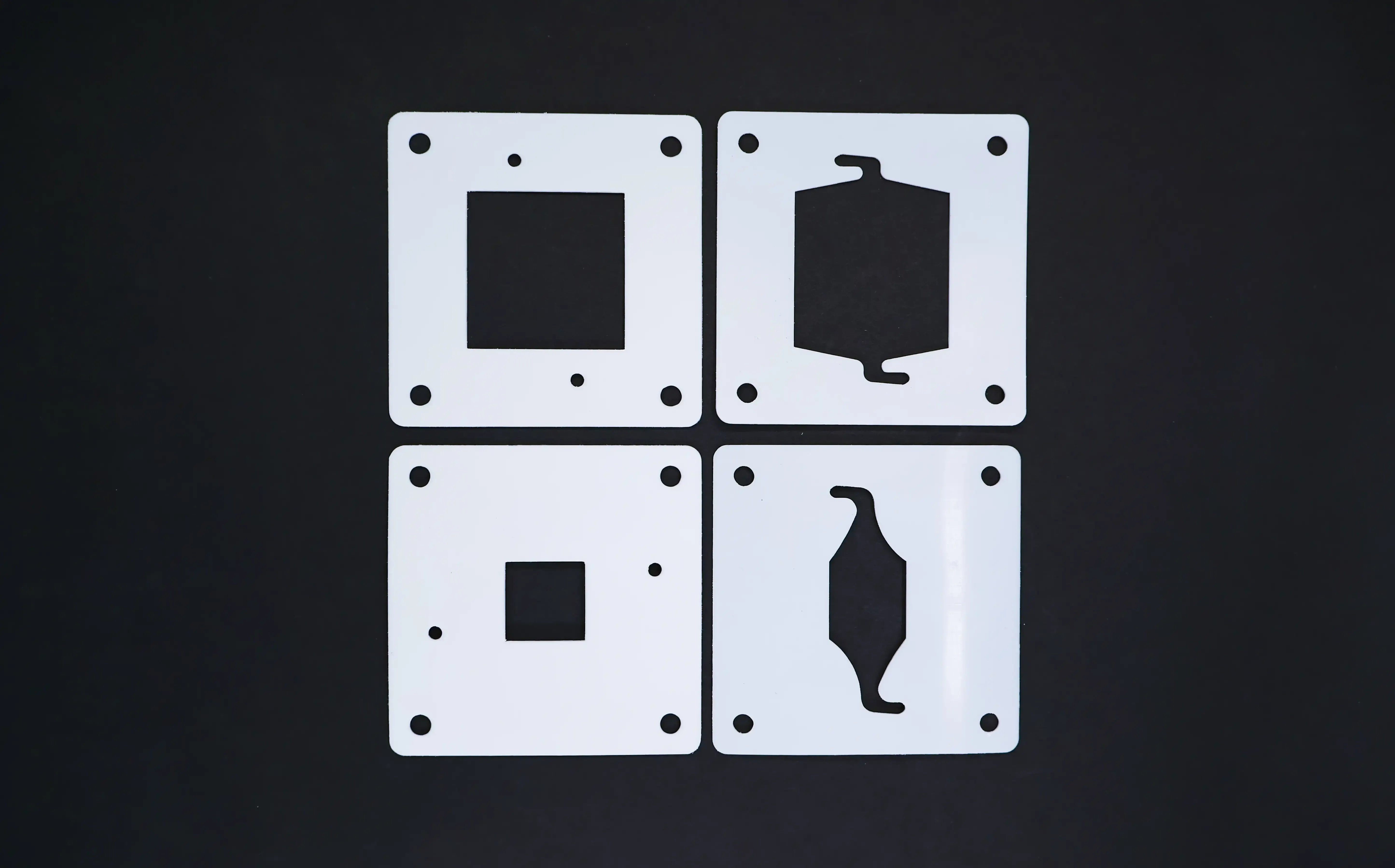

Gaskets

Gaskets are the sealing and compartment-thickness building blocks behind every cell in the Redox Flow range, available as standard cover gaskets and flow-field gaskets or cut to custom geometries on request. Offered in PTFE, EPDM, and Viton across seven thicknesses from 0.05 mm to 2 mm, they let researchers fine-tune compartment volume, electrode compression, and chemical compatibility independently of the cell hardware itself. The thinnest PTFE-only option supports precision compression studies, while thicker EPDM and Viton grades suit general-purpose sealing across the full cell range.

• Three Sealing Materials: PTFE, EPDM, and Viton cover the full range of chemical compatibility needs across pH and solvent systems.
• Seven Thickness Options: From 0.05 mm up to 2 mm, enabling precise control of compartment thickness and electrode compression.
• PTFE-Only Ultra-Thin Grade: The 0.25 mm option is available exclusively in PTFE for fine compression tuning.
• Standard Cell Fit: Cut to match cover-gasket and flow-field-gasket geometries across the cell platform.
• Custom Cutting Available: Non-standard geometries and thicknesses can be produced to order.
