Insert Chamber

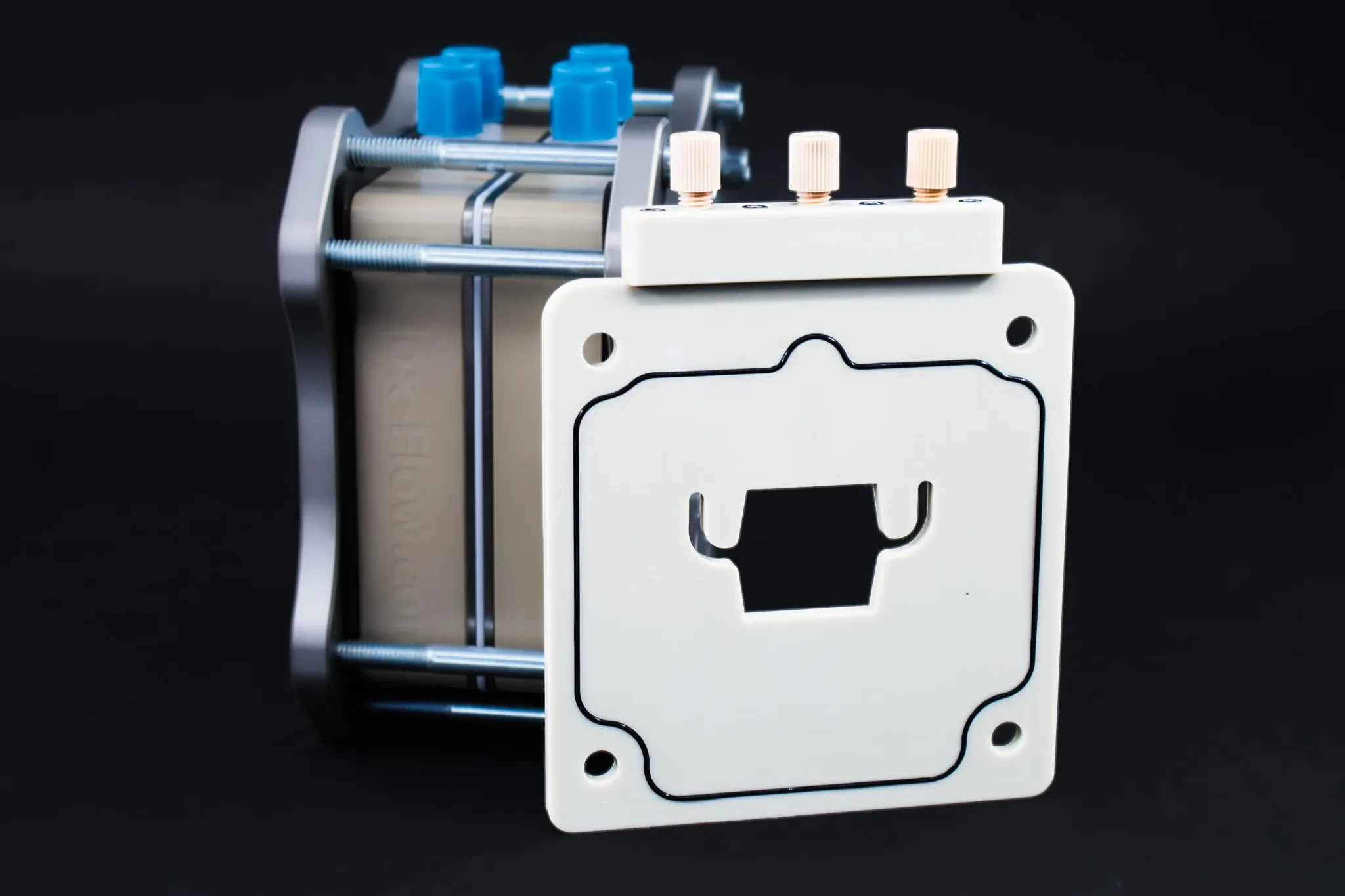

The Insert Chamber converts a standard two-chamber Redox Flow X-Cell, S-Cell, or A-Cell into a multi-compartment electrochemical platform, adding a dedicated reference-electrode port without requiring a different cell body. A 0.8–1.6 mm reference-electrode port accepts thin reference electrodes directly into the added compartment, while two extra liquid ports support independent circulation through the new chamber for CO2 electrolysis, BMED, and other multi-compartment synthesis work. Standard 3 mm chamber thickness can be expanded with gaskets or custom-manufactured larger inserts.

• Modular Chamber Addition: Converts Redox Flow’s X-Cell, S-Cell, or A-Cell hardware from 2-chamber to multi-chamber configuration.
• Dedicated Reference Port: 0.8–1.6 mm port accepts thin reference electrodes directly into the added compartment.
• Independent Circulation: Two additional liquid ports enable separate electrolyte flow through the inserted chamber.
• Active-Area Matched: Compatible with the standard 2.5 × 2.5 cm and 5 × 5 cm active-area formats.
• Expandable Thickness: Standard 3 mm chamber can be thickened with gaskets or custom-manufactured inserts.
• Multi-Process Ready: Suited to CO2 electrolysis, BMED, multi-compartment synthesis, and desalination studies.
