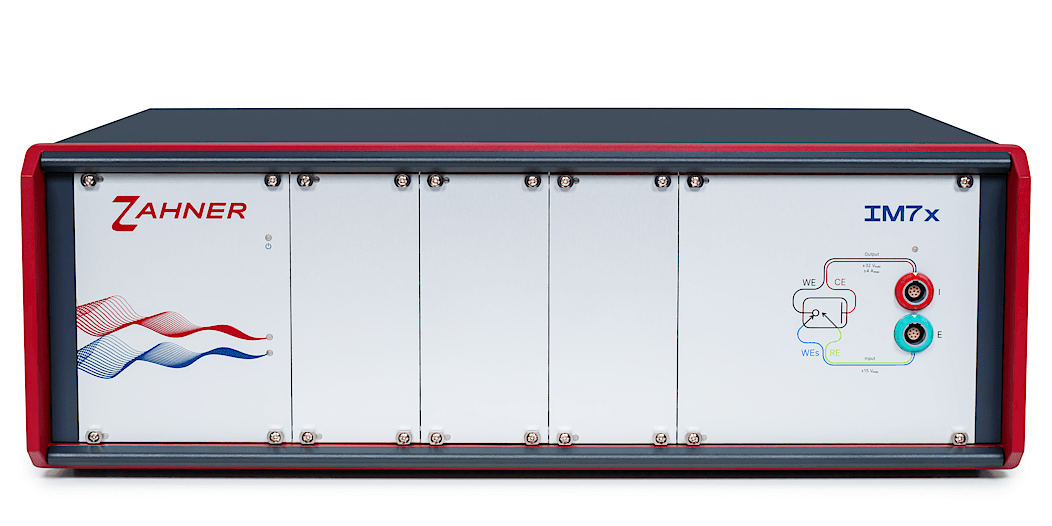

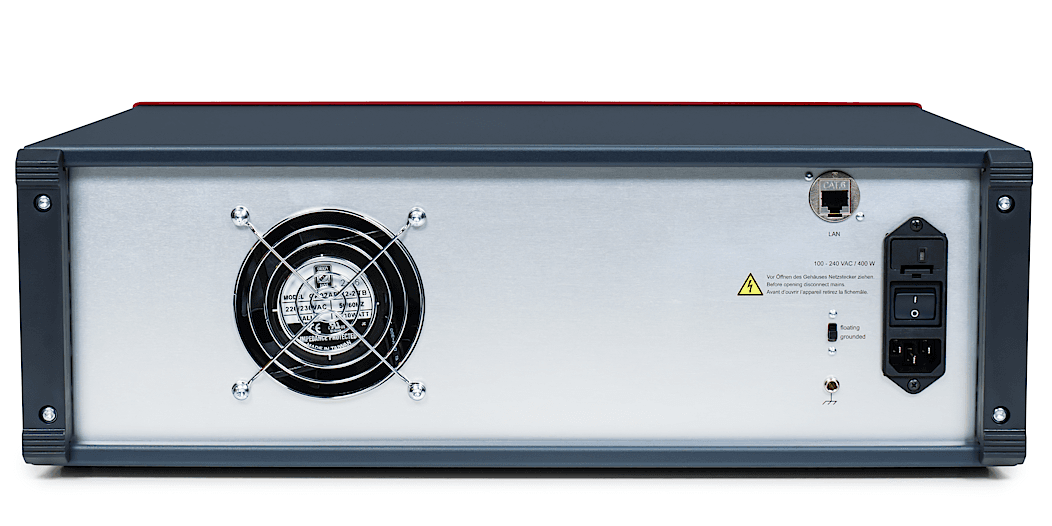

Zahner IM7x Potentiostat
Price: On Request
Description

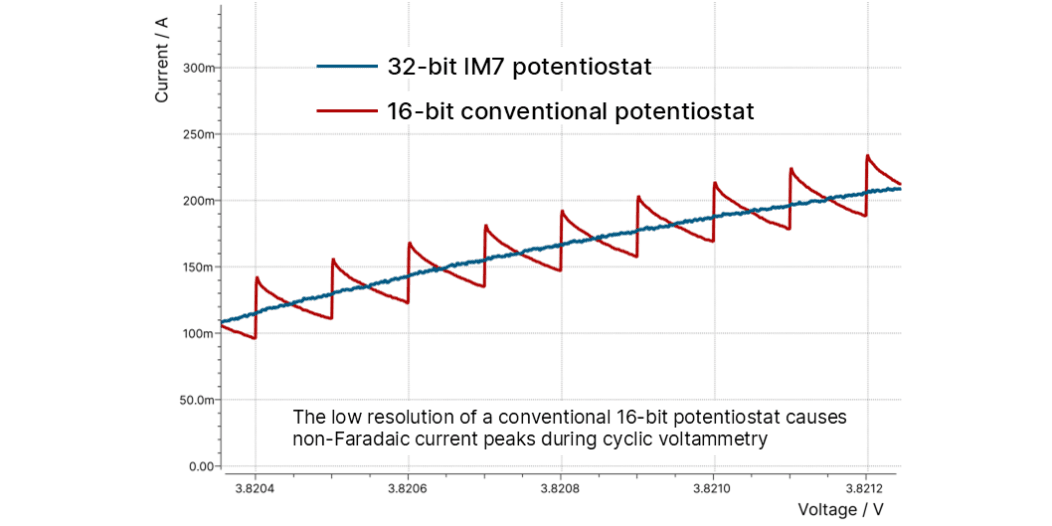

The IM7x is Zahner's flagship modular potentiostat / galvanostat including a frequency response analyzer (FRA). It offers 32-bit DC and 24-bit AC resolution across 12 current ranges for outstandingly precise measurements.
With an EIS frequency range of 10 µHz to 12 MHz, a compliance voltage of ±32 V and a maximum current of ±4 A, the IM7x is designed for the most demanding electrochemical tasks across fundamental electrochemistry, batteries, fuel and electrolysis cells, and corrosion and coatings.
Addon Cards
Plug-and-play cards introduce additional input/control signals to the IM7x potentiostat:
- PAD42 — 24-bit synchronous measurements on each cell in stacked systems (batteries, fuel & electrolysis cell stacks) and simultaneous half-cell characterization
- MIO — Additional analog & digital I/O channels (16-bit resolution, ±10 V); process automatization via Custom Experiment Builder or remote integration
- TEMP-U2 — Two temperature recording channels and two configurable input-voltage channels for external devices (pH meter, pressure chamber, etc.)
Extensions For Power Applications
- Medium power (PP series) — Power potentiostats up to 200 W, current up to ±40 A, voltage up to ±20 V; remote via C++ and Python
- High power (EL series) — Electronic load system up to 68 kW, current up to ±680 A, voltage up to ±100 V; remote via C++ and Python
Remote Integration
Remote control via C++, Python and WebSocket using the zahner_link library (Ethernet/WebSocket). Multiple potentiostats can be integrated into a test bench to create a multichannel system.
Specifications
General Potentiostat
Potentiostatic modes
potentiostatic, galvanostatic, OCP, FRA, ZRA, off
ADC resolution
32-bit DC, 24-bit AC
Harmonic reject
> 60 dB @ ½ full scale
Cell connection
2-, 3-, 4-terminal kelvin
Ground reference
grounded, floating
Channels
≥ 1
General
Interface
Gigabit Ethernet (GbE)
Dimensions / Weight
160 × 470 × 376 mm³ / 13.2 kg
Power supply
100/115/230 VAC, 50/60 Hz, 400 W
Ambient temperature / humidity
+10 °C to +30 °C / < 60% without derating
Storage
40 GB m.2 SSD
Operating System
Windows, Linux, and macOS
Software
Zahner Lab, Zahner Analysis
Remote Integration
C++, Python, WebSocket (zahner_link / Ethernet)
Weight
13.2 kg
Input
Max. input voltage — low range
±5.5 V
Max. input voltage — high range
±16 V
Voltage resolution (input) — low range
3.2 nV
Voltage resolution (input) — high range
9.6 nV
Voltage accuracy (input) — low range
±50 µV ±2 ppm of reading
Voltage accuracy (input) — high range
±150 µV ±5 ppm of reading
DC current resolution
2 aA (32-bit)
DC current accuracy
±0.5% of reading ±0.2% of FS @ 300 mA…4 A ±0.05% of reading ±0.02% of FS @ 3 µA…300 mA ±0.5% of reading ±0.2% of FS @ 30 nA…3 µA ±0.5% of reading ±125 fA @ < 30 nA
Input impedance
> 10 TΩ, ±5 pF typ.
Input leakage current
< ±200 fA typ., < ±2 pA max.

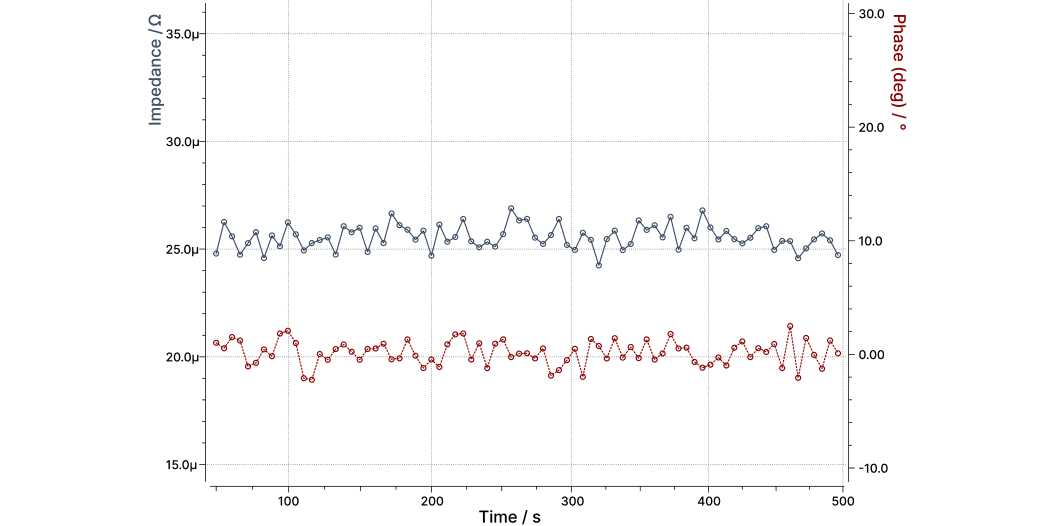

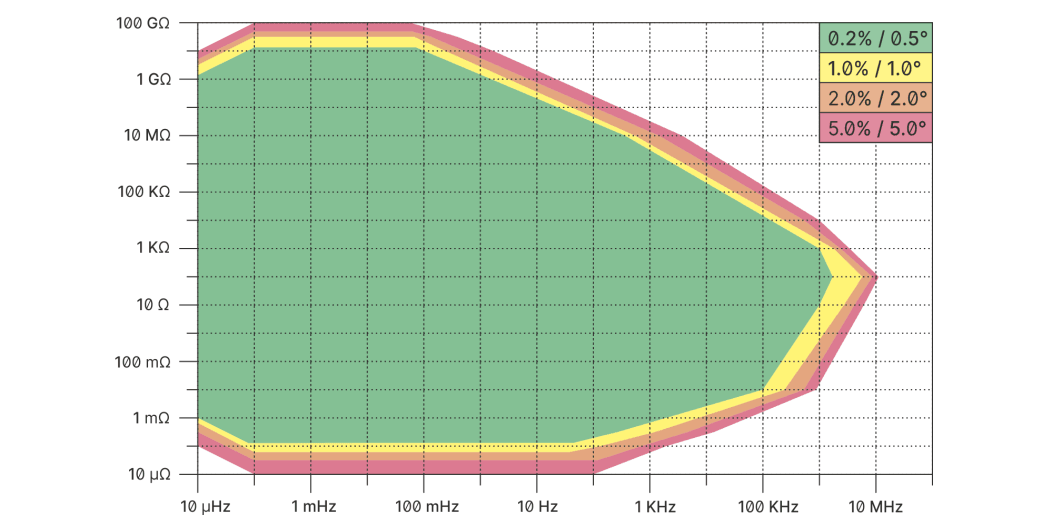

Impedance range
10 µΩ to 100 GΩ
Max sampling rate
900 kHz at up to 2 channels, 3 MSps total
Common mode rejection
> 86 dB @ 10 µHz to 100 kHz > 66 dB @ 100 kHz to 12 MHz
Input channel phase-tracking acc.
±0.05° @ 10 µHz to 100 kHz ±0.125° @ 100 kHz to 12 MHz
Equivalent effective input noise
1 µV rms / 100 fA rms @ 1 mHz to 10 Hz
Output potentiostatic
Controlled voltage — low range
±5 V
Controlled voltage — high range
±15 V
Voltage resolution (output) — low range
2.5 nV
Voltage resolution (output) — high range
7.5 nV
Accuracy voltage (output) — low range
±150 µV ±5 ppm of reading
Accuracy voltage (output) — high range
±450 µV ±25 ppm of reading
Integral Nonlinearity — Low Range
typ. 1 ppm, max. 2 ppm
Integral Nonlinearity — High Range
typ. 3 ppm, max. 8 ppm
Compliance Voltage — Low Range
±16 V
Compliance Voltage — High Range
±32 V
Bandwidth
DC to 15 MHz @ 33 Ω load
iR Compensation
auto AC impedance technique, range 0 to 10 MΩ, resolution 0.012%
Small Signal Rise Time
150 ns to 200 µs in 5 steps, automatic selection
Slew Rate
15 MV/s
Output galvanostatic
Controlled Current
±4 A
Current Range
±3 nA to ±4 A in 12 current ranges
Current Resolution (Galvanostatic)
32-bit ±0.2 ppb of FS
Current Accuracy (Galvanostatic)
±0.025% of reading ±0.01% of FS, ≥ 3 µA to 300 mA ±0.1% of reading ±0.05% of FS, < 3 µA or > 300 mA
Frequency generator & analyzer
EIS Frequency Range
10 µHz to 12 MHz
AC Coltage Amplitude
0 to 2 V, 24-bit resolution (low range) 0 to 6 V, 24-bit resolution (high range)
AC Current Amplitude
0 to 2 A, 24-bit resolution, in 12 current ranges
EIS Amplitude Accuracy
< 0.0025%
EIS Amplitude Resolution
0.0025%, 10,000 steps/decade
Impedance
EIS Capability
Yes
Max. EIS Frequency range
≥ 10 MHz, ≥ 5 MHz, ≥ 1 MHz, ≥ 1 kHz, 0.001
Min. EIS Frequency range
10 mHz, ≤ 10 Hz, ≤ 100 Hz
Galvanostatic
Max. Current
≥ 1 mA, ≥ 100 mA, ≥ 250 mA, ≥ 1 A, ≥ 1 A
Potentiostatic
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher
Required Compliance Voltage
≥ 2 V, ≥ 5 V, ≥ 10 V, ≥ 15 V, ≥ 25 V
