2550 High Current Potentiostat-Galvanostat + 2700 Z-Pulse (EIS)
AMEL

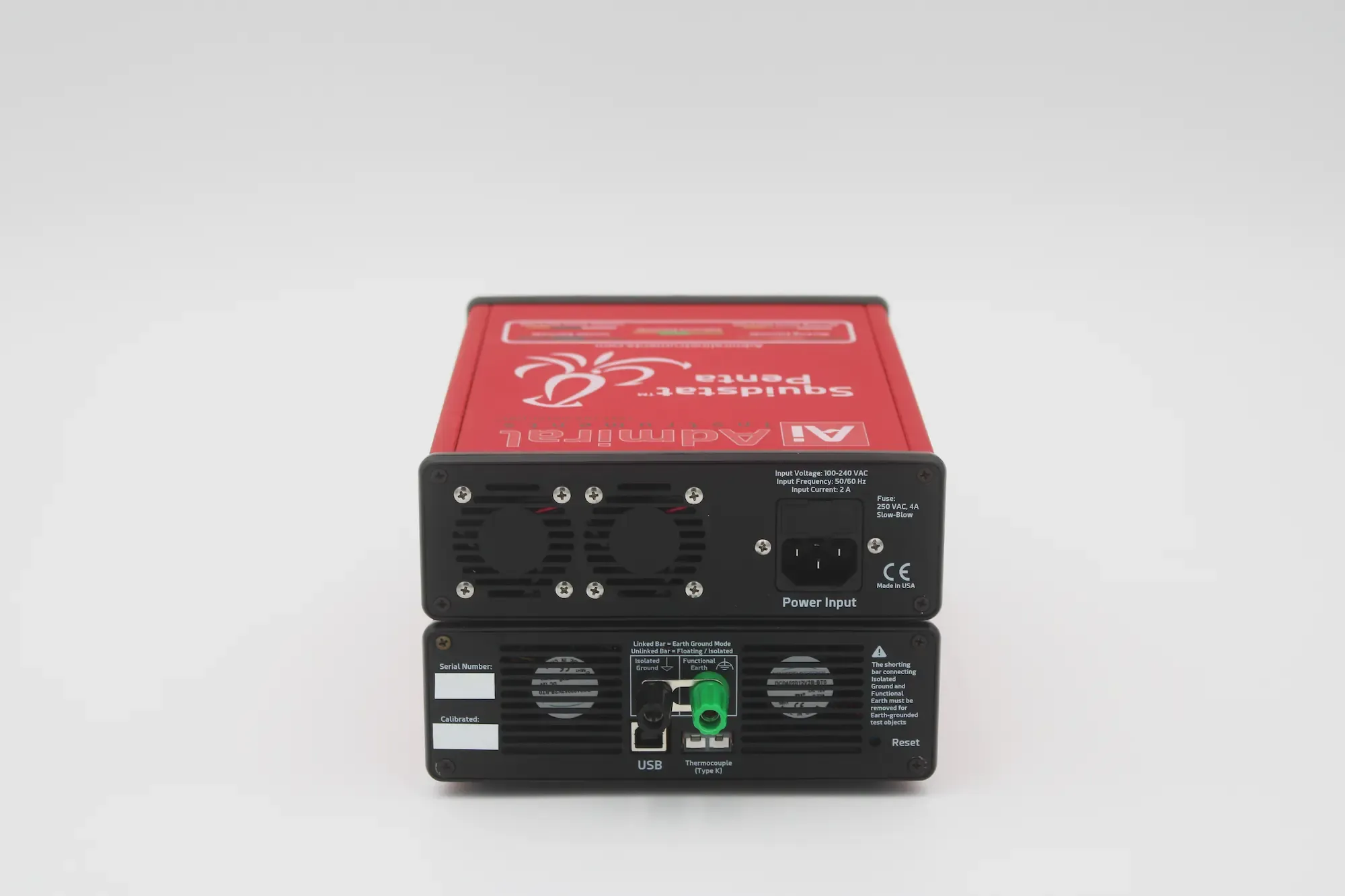

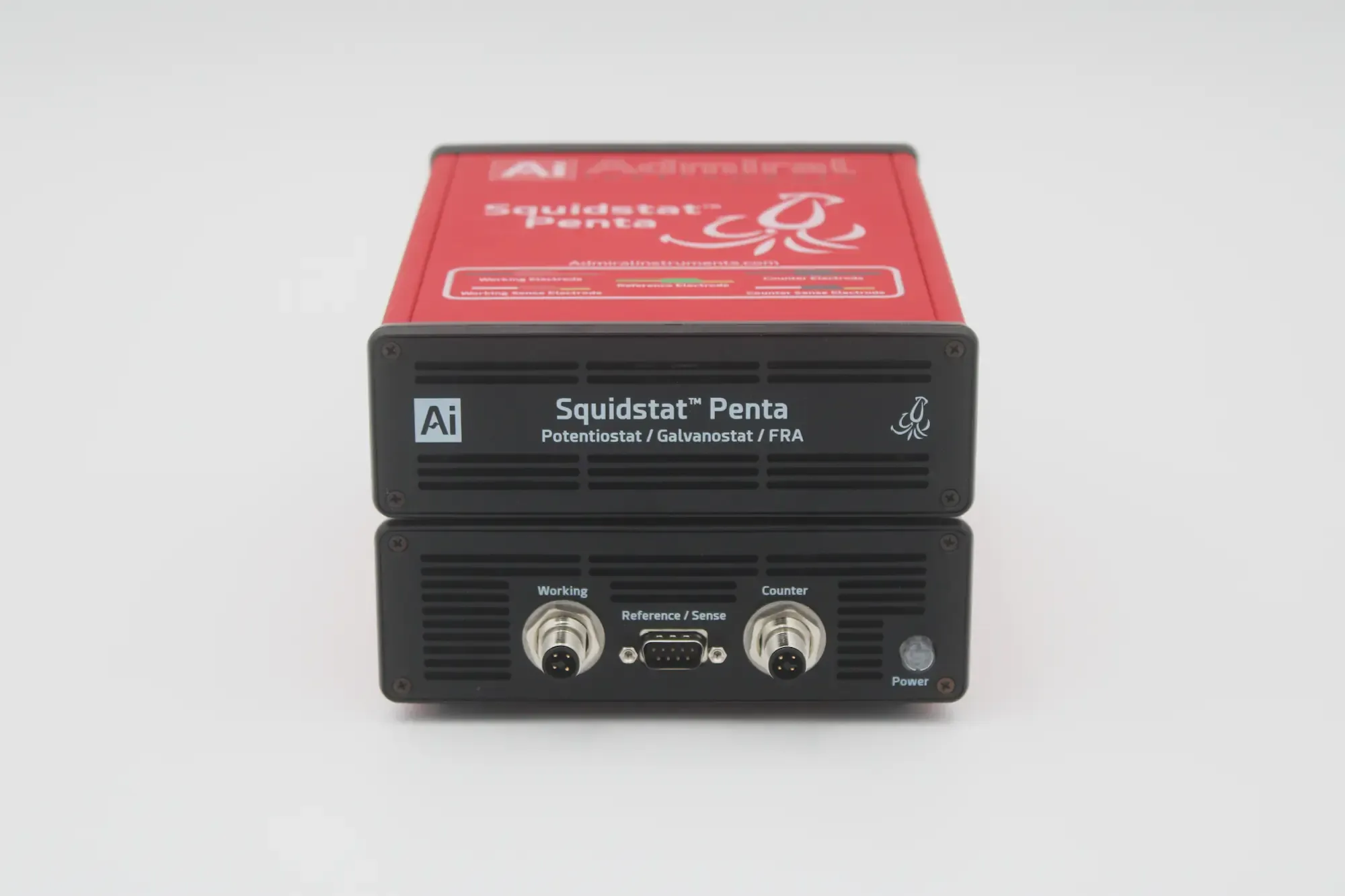

Squidstat Penta
Price: On Request
Description
Squidstat Penta Complete Setup:
Single-channel potentiostat/galvanostat with FRA
- Current range: ±5 A max
- EIS frequency range: 10 μHz - 2 MHz
- Voltage scan range: ±10 V
- Compatible with Windows, MacOS, and Ubuntu via the Squidstat User
- Interface software and Application Programming Interface
- Onboard memory (16 GB) automatically backs up all channel data for future recovery
- Multiple units can run simultaneously with other Squidstat models
- Made in USA
This system supports multiple electrochemical experiments. Please contact the vendor for the complete and up-to-date list of supported experiments.
Included:
- One 1-meter Squidstat Advanced Cable Set - Boosted
- One Power Source Cable (Country based)
- One USB Cable
- One Squidstat InkBoard with Grounding Strap
- Two Alligator Clips – 2 mm – Red
- Two Alligator Clips – 2 mm – Black
- One Alligator Clips – 2 mm – Green
- One Alligator Clips – 4 mm Small – Red
- One Alligator Clips – 4 mm Small – Black
Specifications
General
Type
Potentiostat/Galvanostat
Dimensions - WxDxH / cm
17 x 24 x 13
Weight
3.5 kg
PC Interface
USB
Power supply
100 – 240 VAC, 50/60Hz
General Potentiostat
Form Factor
Benchtop / Lab
Channels
≥ 1
Cell connection
5 electrode, 3 electrode, 4 electrode
Potentiostat modes
Potentiostatic, Galvanostatic, ZRA, FRA
ADC resolution
16 bit
Ground reference
Floating/Ground Mode Both (Switchable)
Shortest DC data recording interval
200 μs
Shortest DC data hardware sampling interval
7.5 μs
Memory
16 Gb
Ambient temperature when measuring
0 °C to +40 °C
Channel Cable Length
1 m
Input impedance
10 Tera-Ω (typical)
Input Bias Current
10 pA (typical)
Potentiostatic
Max. Potential range (±) / V
10
Voltage resolution (output)
0.003% (30.52 ppm) of range, 15 μV min
Min. Voltage resolution (output) / μV
15
Accuracy voltage (output)
0.1% of setpoint, 1 mV min
Min. Accuracy voltage (output) / mV
1
Compliance voltage / ±V
11.5
Voltage resolution (input)
0.003% (30.52 ppm) of range, 15 μV min
Min. Voltage resolution (input) / μV
15
Accuracy voltage (input)
0.1% of measured, 1 mV min
Min. Accuracy voltage (input) / mV
1
Voltage Ranges
4 ranges, [±10 V, ±5 V, ±1 V, ±0.5 V]
Number of Voltage Ranges
4
Slew rate
1 MV/s (-1 V to +1V) - (1 kΩ load)
Min/Max Scan Rate
15 μV/s minimum & 25 V/s maximum with 10 mV sampling
Smallest Potential Step for Sweep Voltammetry
0.003% (30.52 ppm) of range, 15 μV min
Smallest Pulse Width
375 μs
Square Wave Voltammetry Max Frequency
2 kHz (-1 V to +1V)
Time Resolution
10 ns
iR Compensation Limits
12% of range, 1.2 V max
Potential Range Required (±) / V
±1 V or higher, ±4 V or higher, ±10 V or higher
Required Compliance Voltage
≥ 10 V, ≥ 5 V, ≥ 2 V
Galvanostatic
Max. current (output) / A
±5 A
Current range
8 ranges, [1 μA to 5 A]
Number of current ranges
8
Current Resolution (output)
0.003% (30.52 ppm) of range, 30 pA min
Min. Current Resolution (output) / pA
30
Current Accuracy (output)
0.1% of range, 1 nA min
Min. Current Accuracy (output) / nA
1
Current Resolution (input)
0.003% (30.52 ppm) of range, 30 pA min
Min. Current Resolution (input) / pA
30
Current Accuracy (input)
0.1% of range, 1 nA min
Min. Current Accuracy (input) / nA
1
Max. Current
≥ 1 A, ≥ 250 mA, ≥ 100 mA, ≥ 1 mA
Impedance
EIS Capability
Yes
EIS frequency range
10 µHz to 2 MHz
Max. EIS frequency range / MHz
2
Min. EIS frequency range / µHz
10

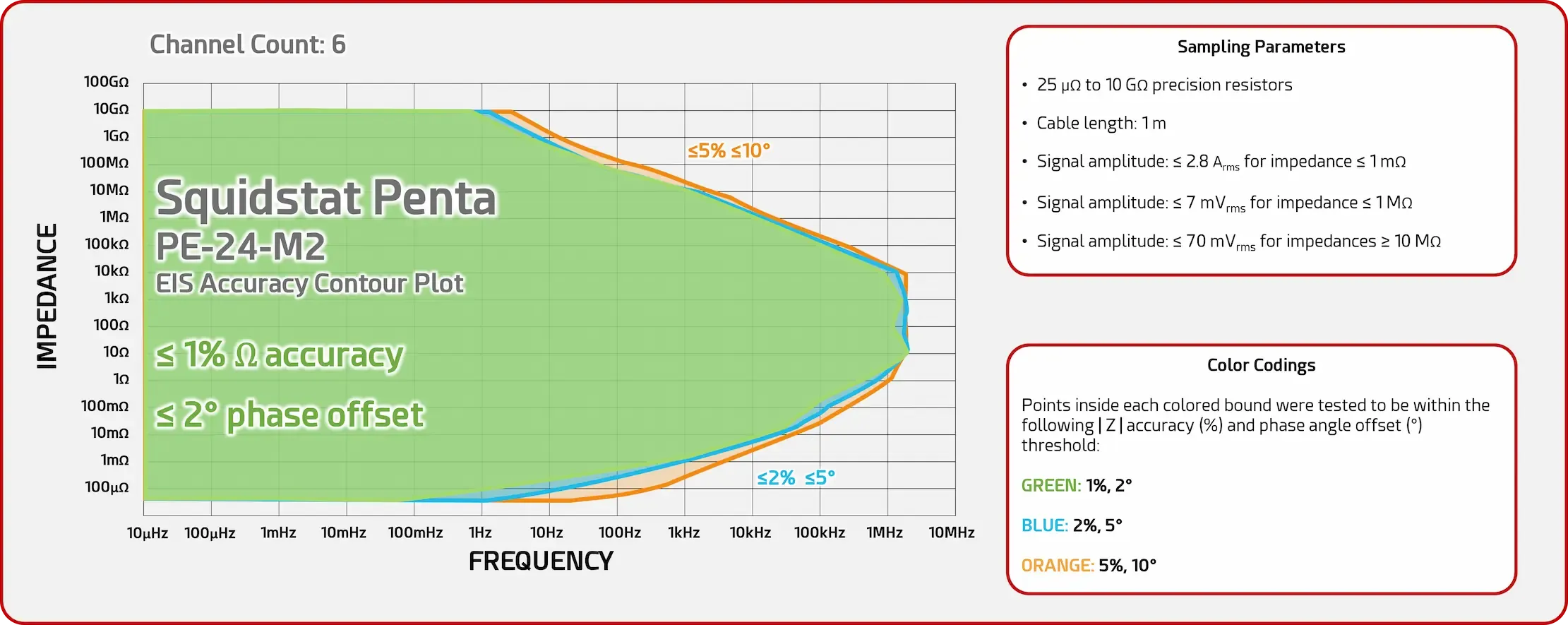

Accuracy Contour Plot
See images
EIS Amplitude resolution
24-bit resolution
AC frequency accuracy
0.005% (50 ppm) or better
AC frequency resolution
18-bit, 0.0004% (3.81 ppm), 3 μHz min
Potentiostatic EIS Amplitude
≤ 100% of range, 10 V max
Potentiostatic EIS Amplitude Resolution
600 nV
Galvanostatic EIS Amplitude
≤ 100% of range, 5 A max
Galvanostatic EIS Amplitude Resolution
0.0006% (6 ppm) of range
Max. EIS Frequency range
≥ 1 MHz, ≥ 1 kHz
Min. EIS Frequency range
≤ 100 Hz, ≤ 10 Hz, 10 mHz
