Electrolysis Cells

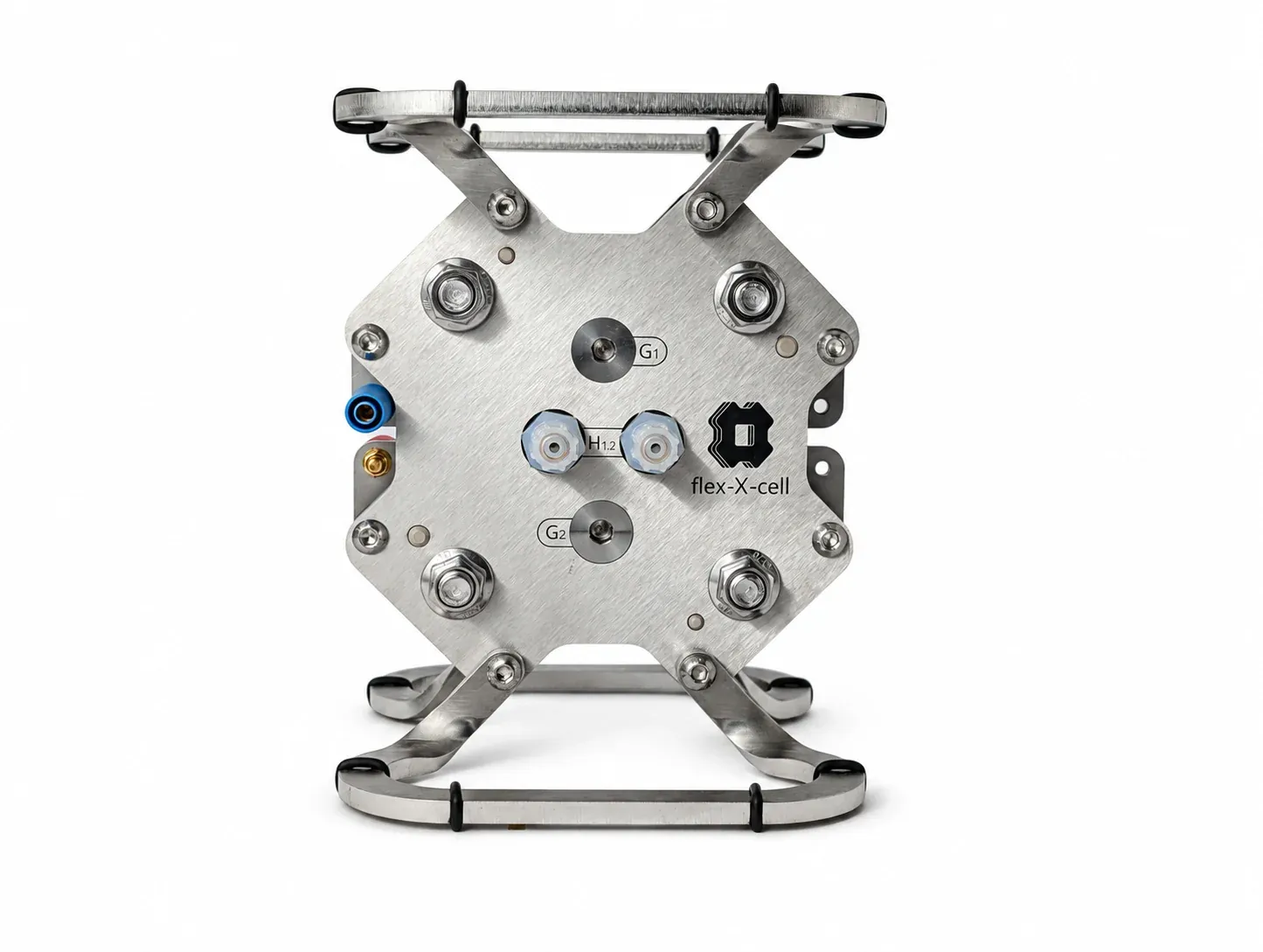

X-Cell – with ports for reference electrodes
Price: from 3390 EUR
A modular alkaline electrolysis test cell for electrode and catalyst development, separator testing and investigation of electrolyte composition and concentration. The configurable flow-cell assembly accommodates sheet, mesh and foam electrodes for comparative research.
Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.
Applications
Alkaline Water Electrolysis
Optional accessories
Reference electrode integration (on request), Integrated thermostat channel (on request)
Customizable Parameters
Geometry, Thickness, Fluid connector size, Fluid connector material, O-ring material, Materials, Coatings
Typical Lead Time
1–3 months (indicative / configuration-dependent)
Active Area Cell
5 cm²
Chamber Configuration
2 channels
Anode Current Collector / Electrode
Ni sheet (standard), Ni sheet + welded Ni mesh (on request)
Cathode Current Collector / Electrode
Ni sheet (standard), Ni sheet + welded Ni mesh (on request)
Max. Operation Pressure
Unpressurized operation / <0.5 bar (gauge)
Maximum Operating Temperature
80 °C
Cell External Dimensions
Approx. 145 × 170 × 190 mm (W × D × H)
Electrical contact
4 mm banana socket, or bolted cable lug directly to the current collector
Fittings and Tubing Connection
For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request
Fluid Connector Material
PFA (standard) / PTFE (on request)
Sealing O-ring material
FEP-encapsulated (alternatives on request: EPDM or FFKM)
End Plates Material
Stainless Steel
Anode Flow Frame Thickness
2.0 mm (standard), Custom configuration (on request)
Anode Flow Frame Material
PTFE
Cathode Flow Frame Thickness
2.0 mm (standard), Custom configuration (on request)
Cathode Flow Frame Material
PTFE
Membrane Frame Thickness
250 µm (standard), 50 µm (on request), 100 µm (on request), 500 µm (on request), Custom thickness (on request)
Membrane Frame Material
PTFE (where a membrane frame is selected)
Included Accessories
Fittings, O-rings, Positioning pins, Screws, Handles
Not Included
Membranes, Electrodes
Wetted Materials
Nickel, PTFE, selected electrode, PFA fluid connectors, and selected O-ring materials
Electrical insulation
Insulation layers
