Selected Product

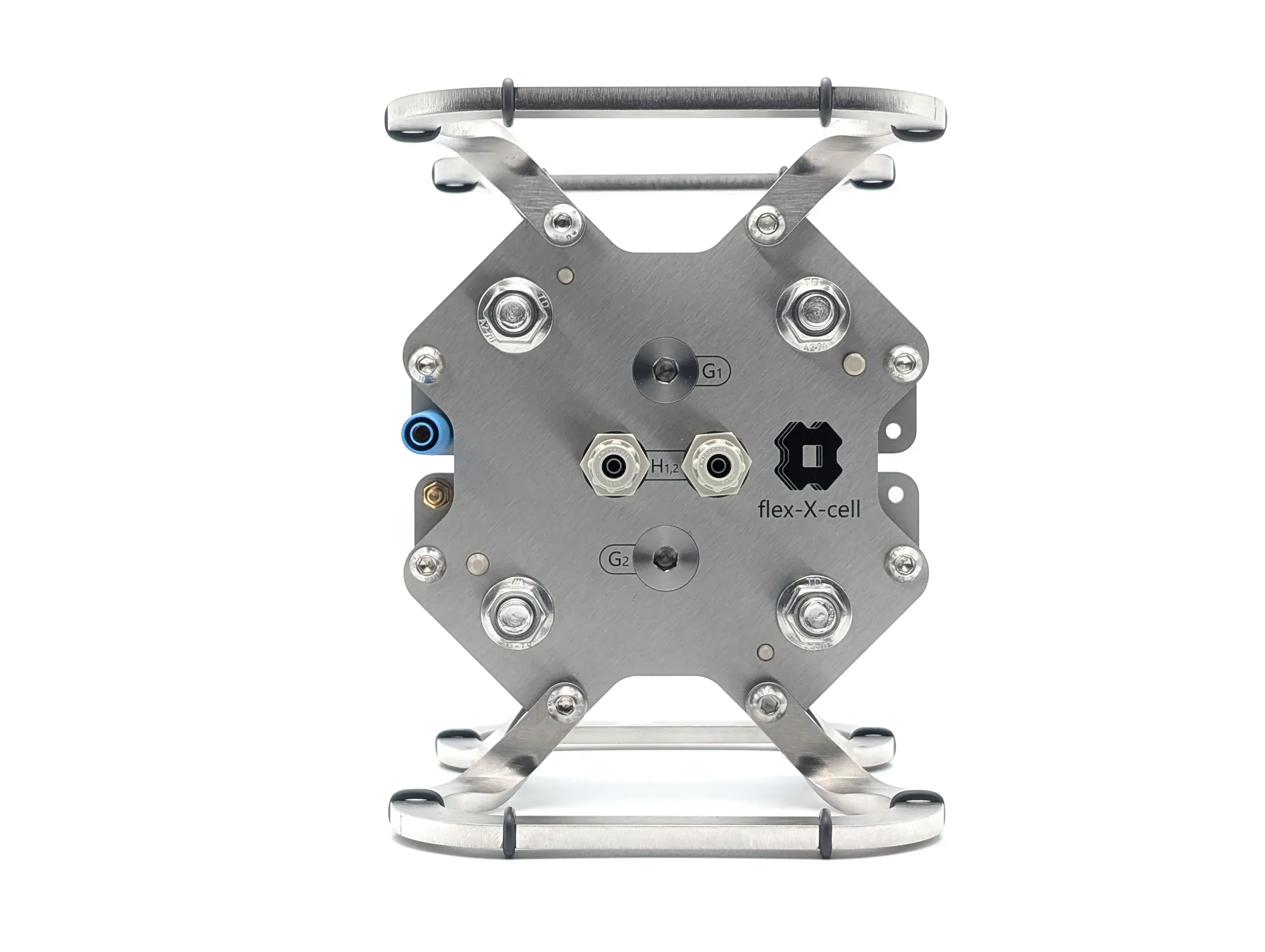

Thumbnail 1Thumbnail 2Thumbnail 3
Get Quote/Info

flex-X-cell S for CO₂ electrolysis (GDE)

See all products by FXC Engineering
Price: From €3,330 (excl. taxes)

Description

A modular gas-diffusion-electrode cell for carbon dioxide electrolysis research. It supports gas-diffusion electrode and catalyst-layer studies, investigation of catholyte effects, and mass-transport and selectivity studies. Configurable anode and cathode assemblies allow researchers to adapt the cell to acidic or alkaline experiments as specified in the selected configuration.

Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.

Specifications

General Cells

Not Included

Membranes, Electrodes

Anode Current Collector / Electrode

Ni sheet (on request), Ti sheet + welded Ir-MMO Ti mesh (standard), Ni sheet + welded Ni mesh (on request), Ti sheet with Ir-MMO coating (on request)

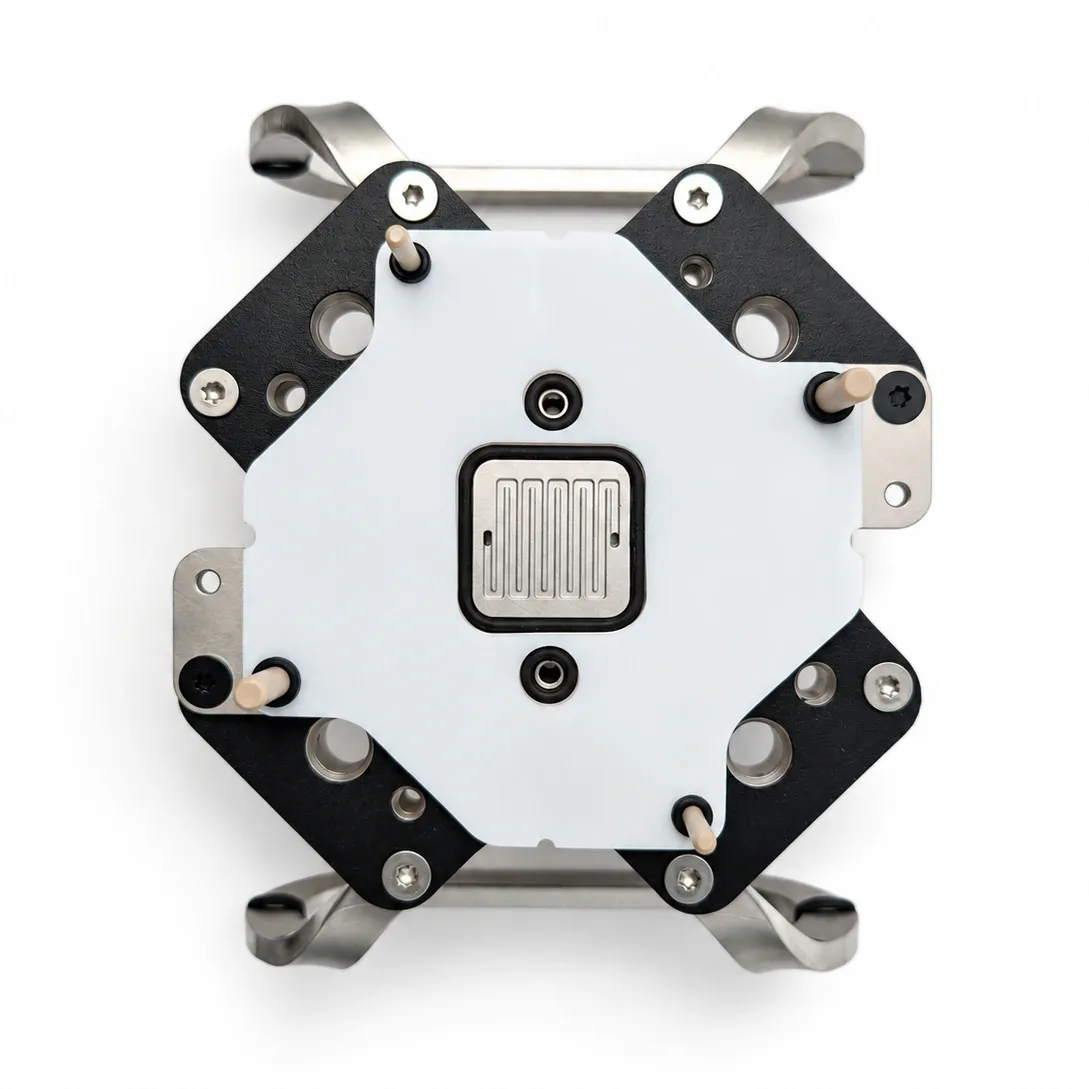

Flow Fields

Parallel-channel (on request), Interdigitated (on request), Serpentine

Max. Operation Pressure

Unpressurized operation / <0.5 bar (gauge)

Included Accessories

Fittings, Positioning pins, Screws, Handles, O-rings

Fittings and Tubing Connection

For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request

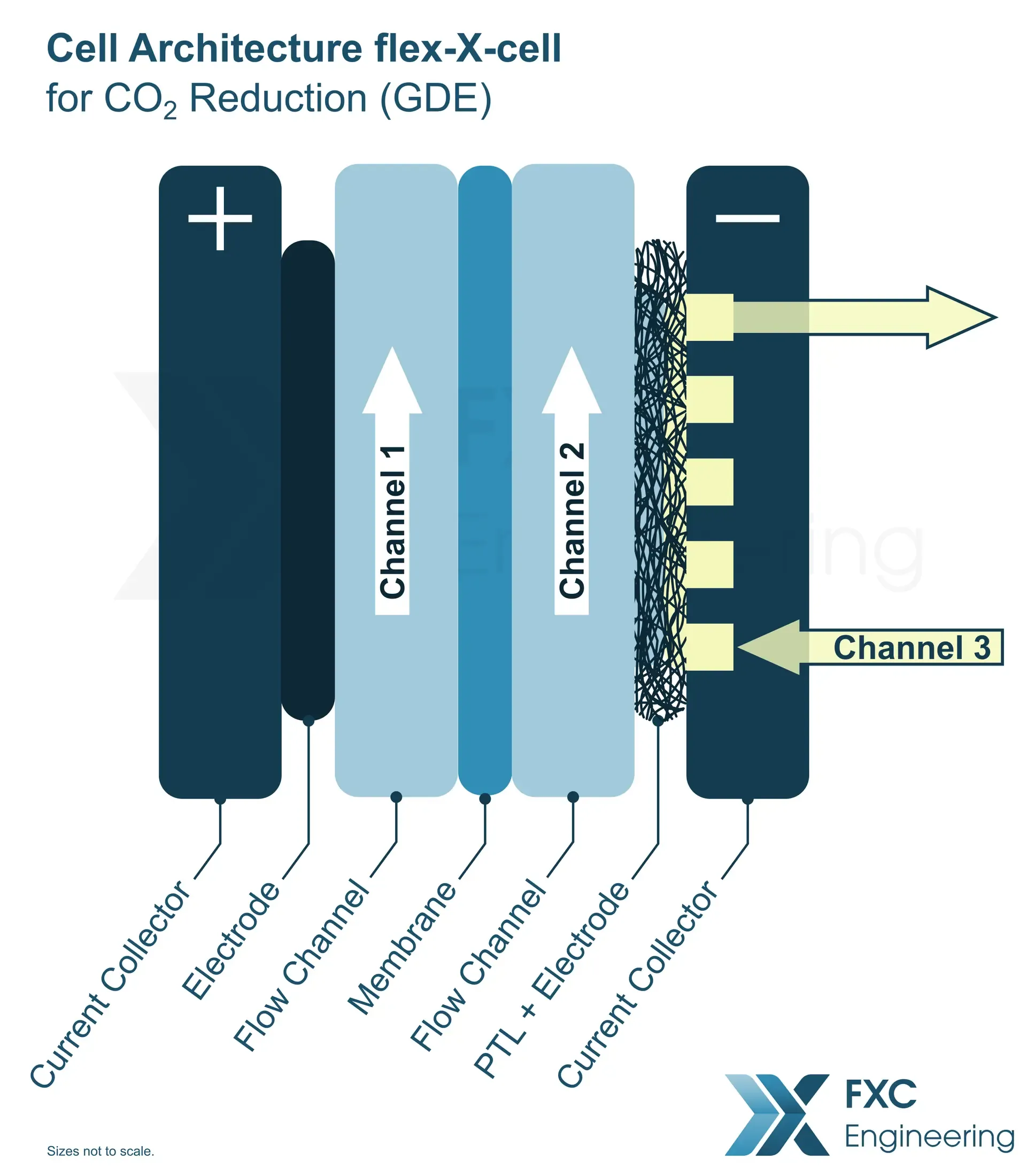

Chamber Configuration

3 channels

Cathode Flow Frame Thickness

2.0 mm (standard / custom thickness on request)

Active Area Cell

5 cm²

Electrical contact

4 mm banana socket, or bolted cable lug directly to the current collector

Cathode Current Collector / Electrode

Ti with serpentine flow field (on request), Graphite with serpentine flow field (on request), Stainless steel with serpentine flow field (standard)

Cathode PTL / Electrode Frame Thickness

200 µm (standard), Custom thickness (on request), 100 µm (on request), 250 µm (on request)

Fluid Connector Material

PP (standard) / PFA or PTFE (on request)

End Plates Material

Stainless Steel

Cathode PTL / Electrode Frame Material

PTFE

Anode Flow Frame Thickness

2.0 mm (standard / custom thickness on request)

Membrane Frame Thickness

100 µm (standard), 50 µm (on request), No membrane frame (on request), 25 µm (on request), Custom thickness (on request)

Anode Flow Frame Material

PP/EPDM

Sealing O-ring material

EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)

Cathode Flow Frame Material

PP/EPDM

Membrane Frame Material

PTFE (where a membrane frame is selected)

Accessories

Wetted Materials

PP/EPDM, PTFE, selected current-collector/electrode (default: Ti/Ir-MMO anode and stainless-steel cathode), PP fluid connectors, and selected O-ring materials

General

Customizable Parameters

Geometry, Fluid connector size, Fluid connector material, Coatings, O-ring material, Thickness, Materials

Applications

CO₂ Electrolysis

Optional accessories

Integrated thermostat channel (on request), Reference electrode integration (on request)

Typical Lead Time

1–3 months (indicative / configuration-dependent)

Dimensions

Approx. 145 × 170 × 190 mm (W × D × H)

Operating temperature

Max. 80 °C

Battery testing

Electrical insulation

Insulation layers

Loading publications...
Loading reviews...

Get Official Quote

Get pricing and product details from FXC Engineering.

Customer Reviews

0.0 out of 5

0 global ratings

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Verified Identity

Every review undergoes an email verification process to ensure it originates from a verified industry professional.

Verified Purchase

We manually validate "Verified Purchase" claims by cross-referencing with supplier records or identifying the equipment in peer-reviewed scientific publications.

Transparent Publishing

All verified reviews, whether positive or negative, are published without bias as long as they comply with our community guidelines.

No reviews yet. Be the first to share your thoughts!

Write a Review

Share your experience with this product.

Quantity
1

Electroseek will research similar products for you.

References

Help the scientific community by sharing research papers that utilize this equipment.
Contact us to add your research.

Related Products

Redox-Flow
X-Stack: Electrochemical Stack Platform
Electrolysis Cells

X-Stack: Electrochemical Stack Platform

Price: from 3395 EUR

FXC Engineering

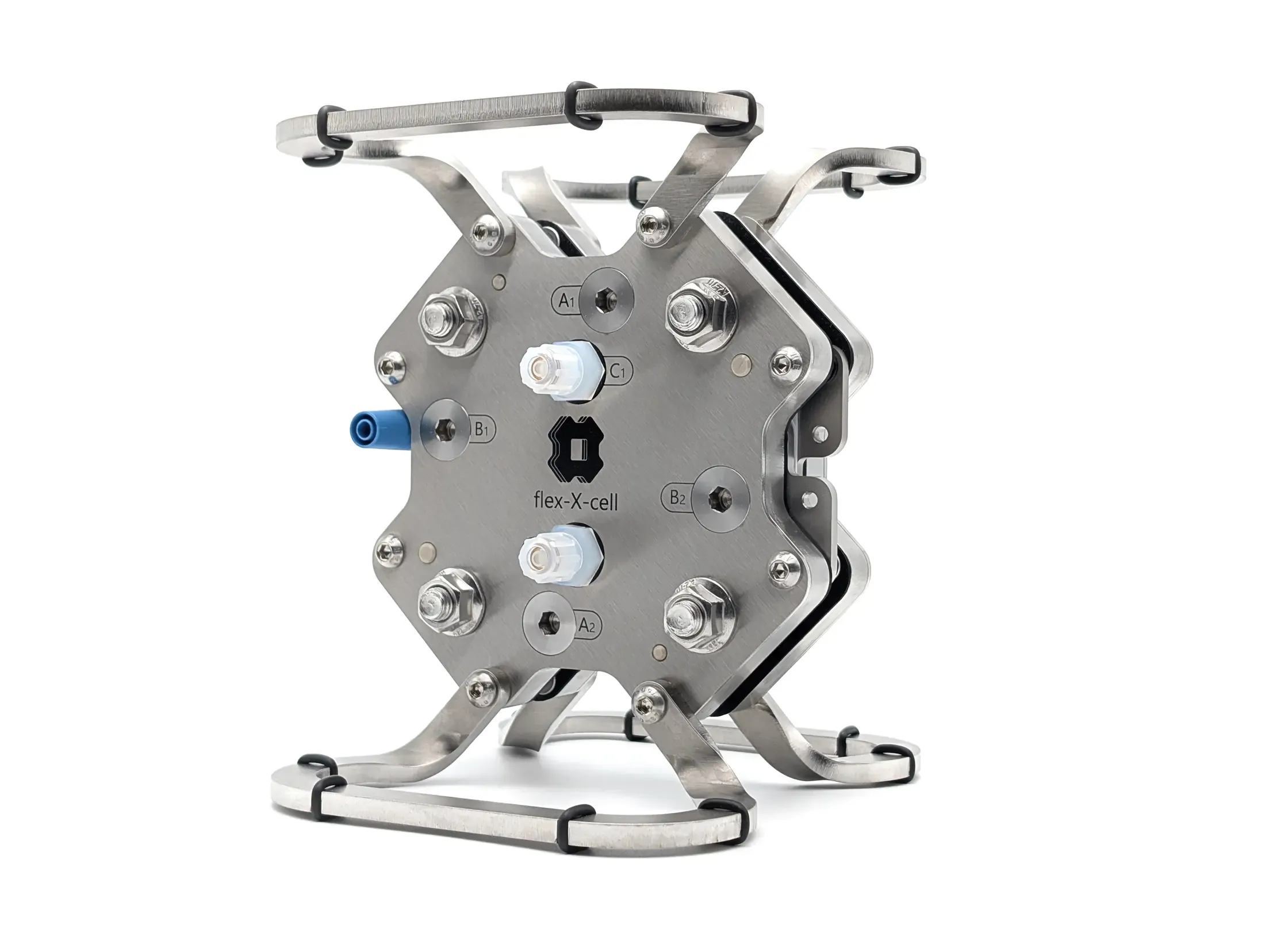

flex-X-cell M for alkaline electrolysis
Electrolysis Cells

flex-X-cell M for alkaline electrolysis

Price: From €4,180 (excl. taxes)

Redox-Flow
X-Stack w. FF: Thin Electrode Advanced Flow Field Stack System
Electrolysis Cells

X-Stack w. FF: Thin Electrode Advanced Flow Field Stack System

Price: from 4151 EUR

Redox-Flow
M-Cell Full Cell
Electrolysis Cells

M-Cell Full Cell

Price: On request

FXC Engineering
flex-X-cell M for CO₂ electrolysis (GDE)
Electrolysis Cells

flex-X-cell M for CO₂ electrolysis (GDE)

Price: From €3,580 (excl. taxes)

Redox-Flow
M-Cell Half Cell
Electrolysis Cells

M-Cell Half Cell

Price: On request

FXC Engineering
flex-X-cell S for CO₂ electrolysis (zero-gap)
Electrolysis Cells

flex-X-cell S for CO₂ electrolysis (zero-gap)

Price: From €3,230 (excl. taxes)

FXC Engineering

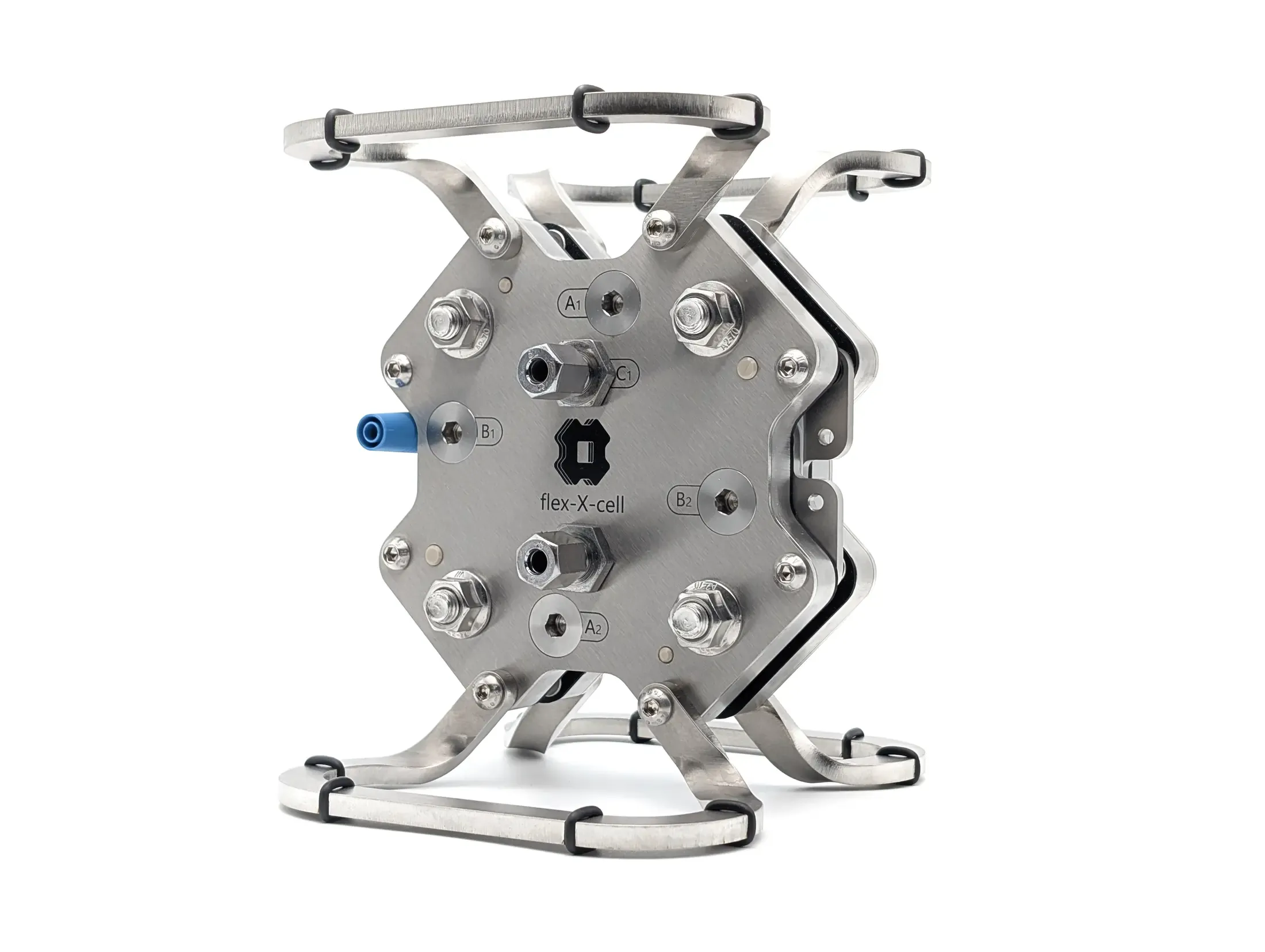

flex-X-cell M for CO₂ electrolysis (zero-gap)
Electrolysis Cells

flex-X-cell M for CO₂ electrolysis (zero-gap)

Price: From €3,570 (excl. taxes)

FXC Engineering

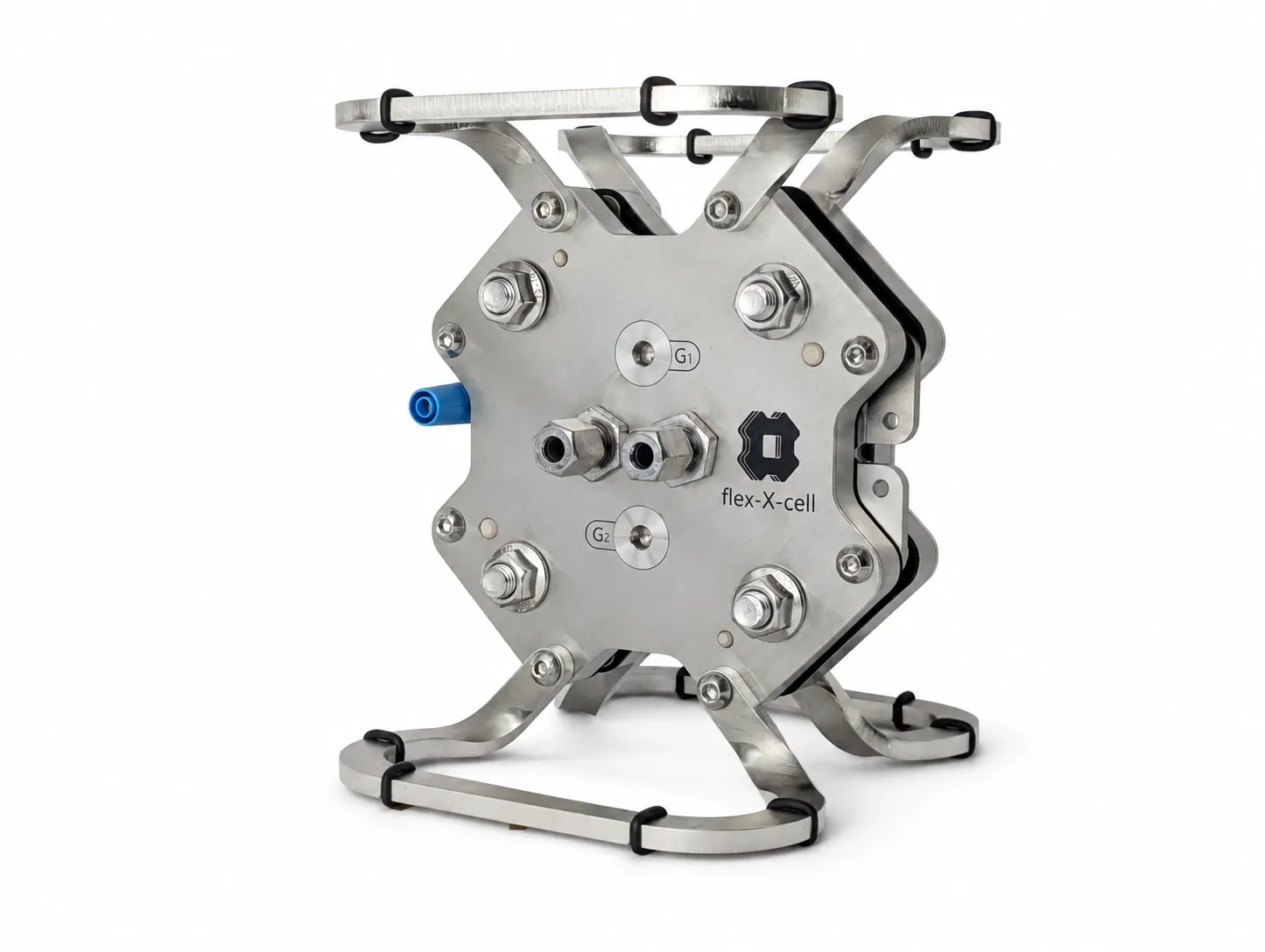

flex-X-cell S for PEM electrolysis
