PEM electrolytic water testing fixture
Momenta Energy

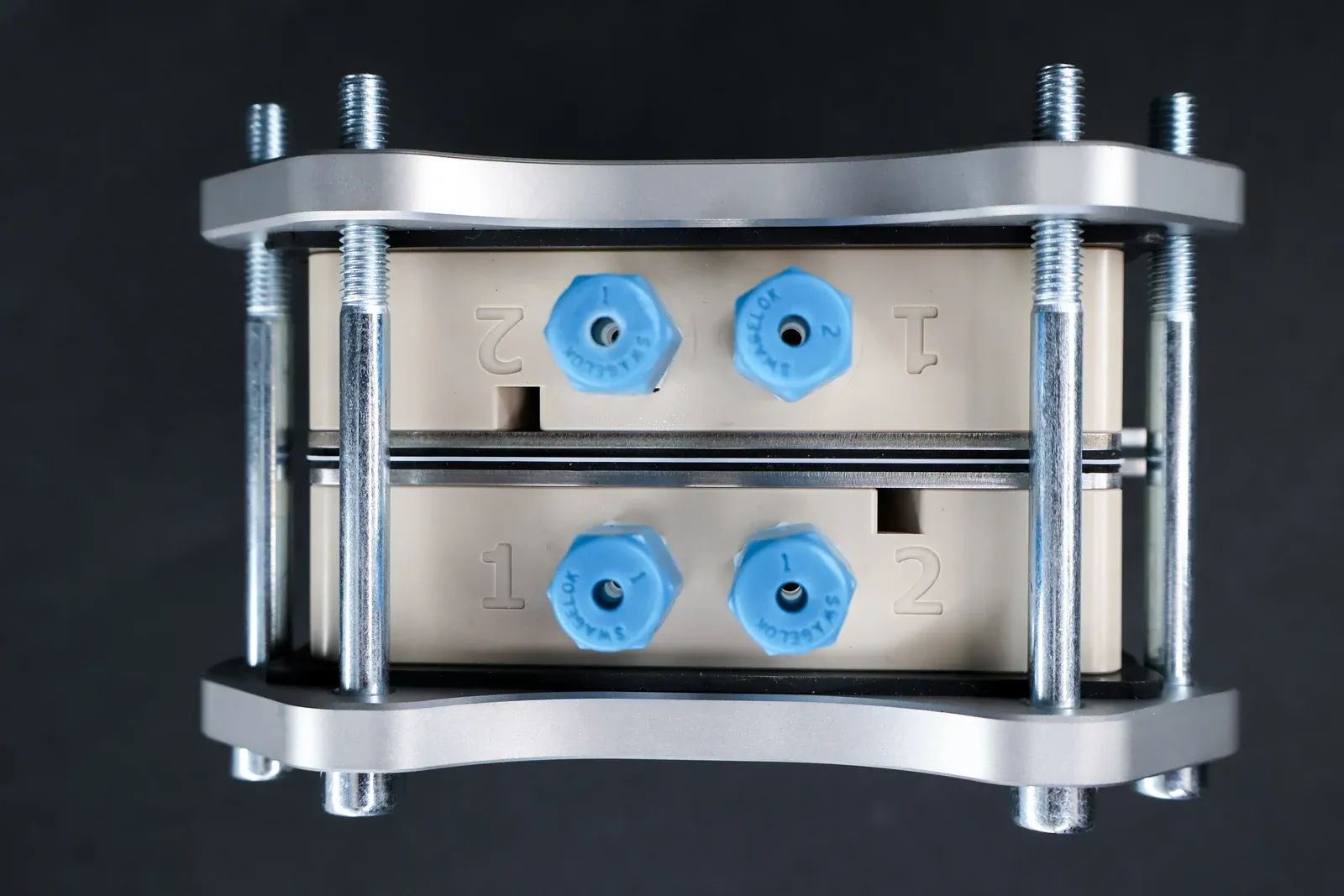

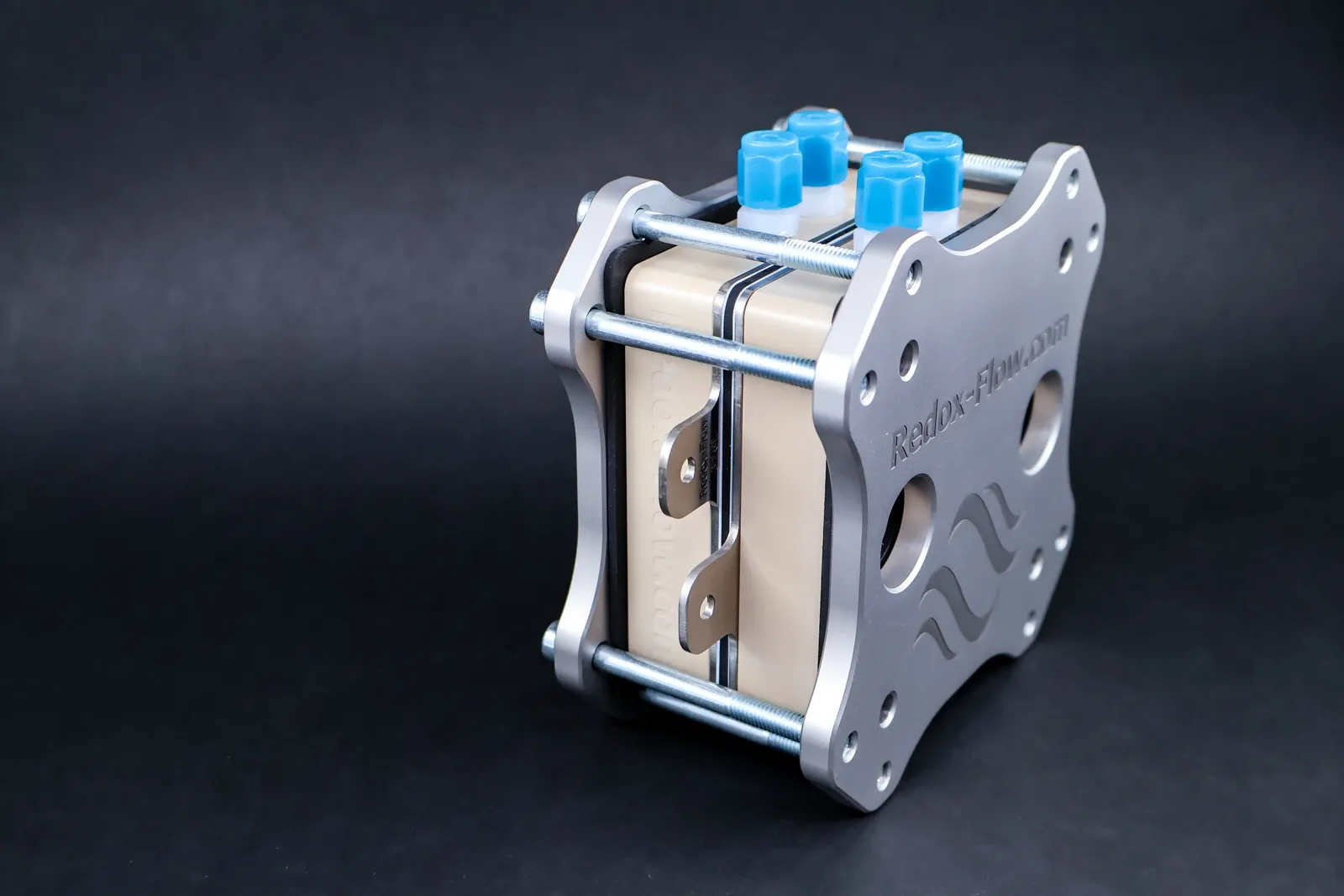

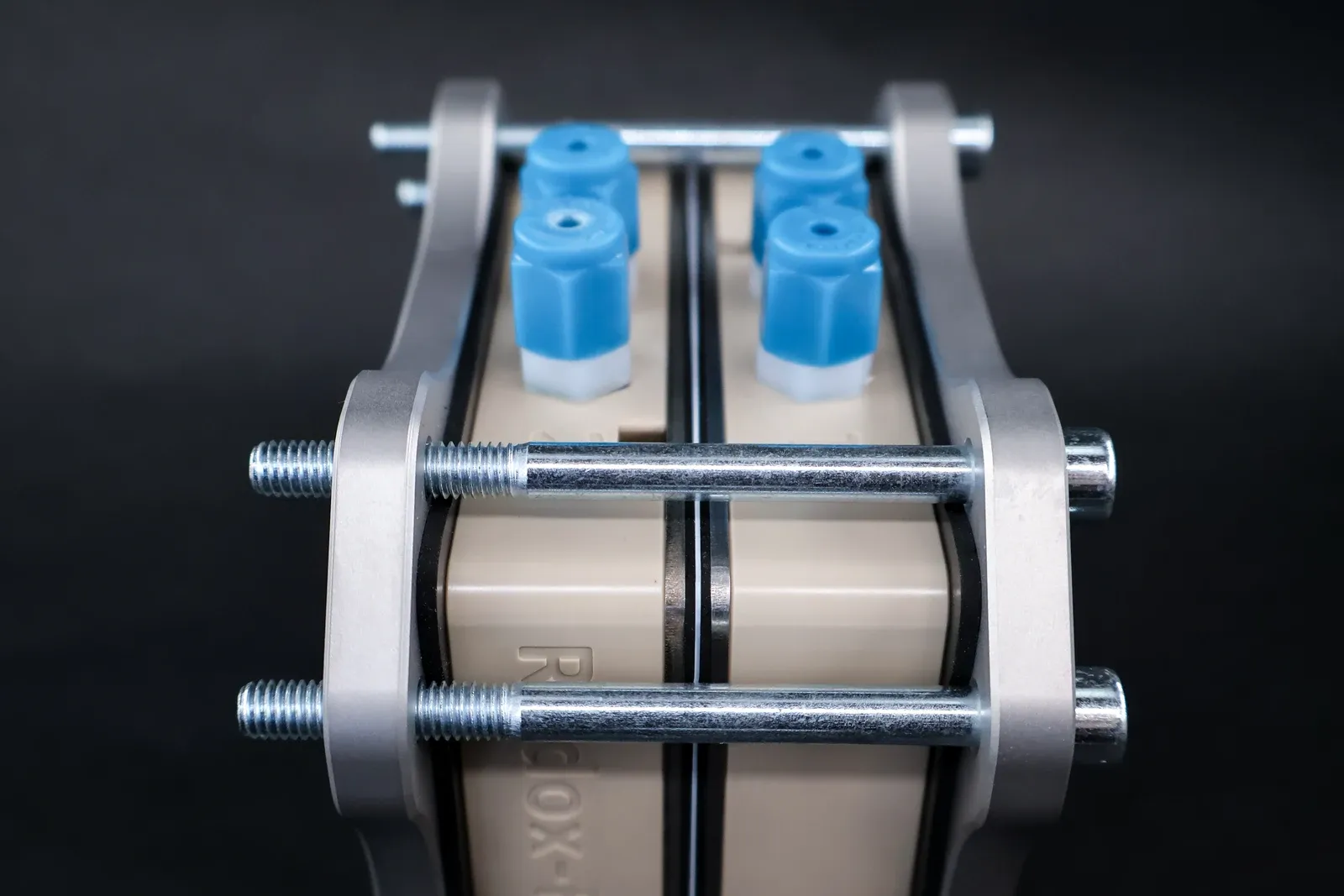

X-Cell for Electrolysis Studies
Price: from 2896 EUR
Description
The X-Cell is a configurable electrochemical flow cell developed to support efficient and precise electrochemical research and development work across a wide range of electrolysis studies, including CO2 electrolysis. Its modular architecture allows researchers to tailor the cell to specific experimental needs, reducing setup time while maintaining high control over operating conditions.
- Interchangeable current collectors and multiple active-area options for rapid adaptation between projects
- Compatible with PEM, AEM, alkaline, and non-aqueous electrolysis systems
- Designed for straightforward assembly and reliable operation across wide temperature and pH ranges (pH 0-14)
- Chemically resistant materials minimize leaching and preserve catalyst integrity
- Prepared for integrated temperature measurement and control for precise, repeatable testing
Specifications
General
Dimensions
14 cm x 14 cm x 8 cm and up (thickness depends on configuration)
Max. Operation Temperature
Up to 95 °C
General Cells
Flow Body Material
PEEK (recommended for most operations) or PTFE
Current Collector Material
Copper, Gold-coated Titanium, Nickel, Platinum-coated Titanium, Stainless Steel (316L)
Active Area Cell
2.5 cm x 2.5 cm, 5 cm x 5 cm
Flow Fields
Flat Current Collectors, Interdigitated Flow Field, Serpentine Flow Field, Custom Flow Fields on request
Sealing gaskets material
PTFE, Ethylene propylene diene monomer (EPDM), Viton®
Available Gaskets Thickness (mm)
0.05 (PTFE)
End Plates Material
Stainless Steel
Chemical Resistance (pH Range)
Full pH range – depending on current collector and gasket materials
Fittings and Tubing Connection
Tight Swagelok fittings for 1/8” or ¼” tubing
