Electrolysis Cells
flex-X-cell M for alkaline electrolysis
Price: From €4,180 (excl. taxes)
A modular anion exchange membrane electrolysis test cell for catalyst and electrode screening, membrane testing and porous transport layer evaluation. The configurable assembly supports comparative laboratory studies and adaptation to the materials under investigation.
Membranes and electrodes are supplied separately unless explicitly included in the selected configuration or added to the quotation. Optional configurations and the final scope of supply are confirmed with the quotation.
Applications
AEM Water Electrolysis
Optional accessories
Reference electrode integration (on request), Integrated thermostat channel (on request)
Customizable Parameters
Geometry, Thickness, Fluid connector size, Fluid connector material, O-ring material, Materials, Coatings
Typical Lead Time
1–3 months (indicative / configuration-dependent)
Active Area Cell
5 cm²

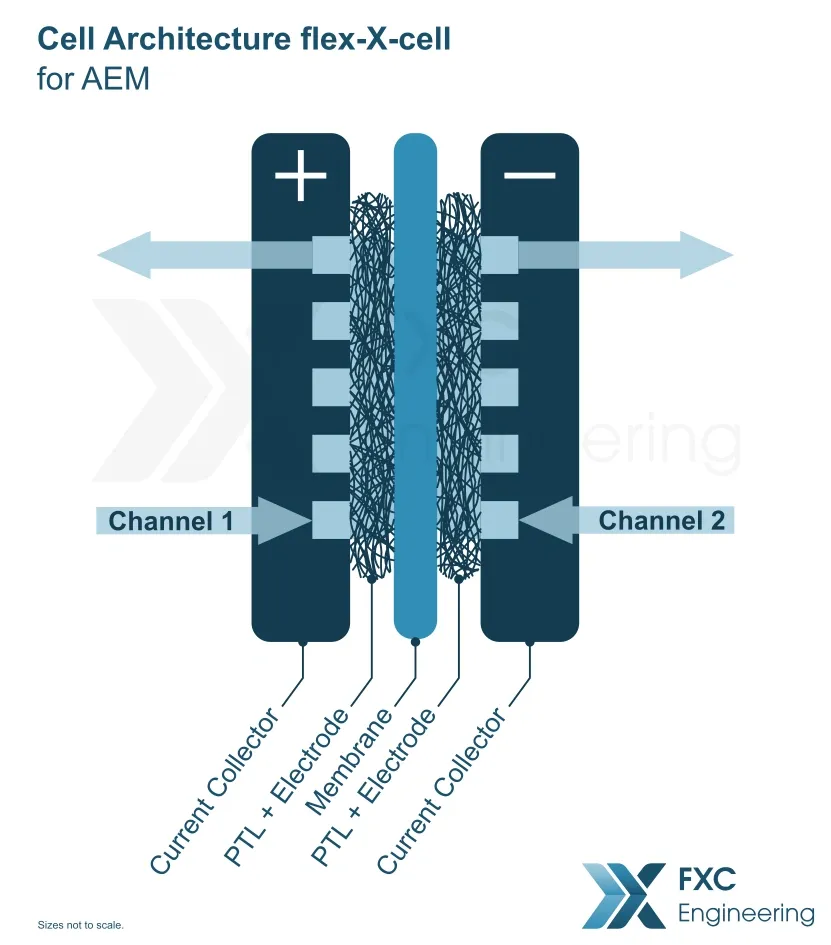

Chamber Configuration
2 channels
Anode Current Collector / Electrode
Ni with serpentine flow field
Cathode Current Collector / Electrode
Ni with serpentine flow field
Max. Operation Pressure
3 bar (gauge)
Maximum Operating Temperature
100 °C
Cell External Dimensions
Approx. 145 × 170 × 190 mm (W × D × H)
Electrical contact
4 mm banana socket, or bolted cable lug directly to the current collector
Fittings and Tubing Connection
For 6 × 4 mm (OD × ID) tubing / other tubing sizes on request
Fluid Connector Material
Stainless steel (1.4571) (standard) / PFA or PTFE (on request)
Sealing O-ring material
EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)
End Plates Material
Stainless Steel
Flow Fields
Serpentine, Interdigitated (on request), Parallel-channel (on request)
Anode Flow Frame Thickness
250 µm (standard), 100 µm (on request), 200 µm (on request), Custom thickness (on request)
Anode Flow Frame Material
PTFE
Cathode Flow Frame Thickness
200 µm (standard), 100 µm (on request), 250 µm (on request), Custom thickness (on request)
Cathode Flow Frame Material
PTFE
Membrane Frame Thickness
100 µm (standard), 25 µm (on request), 50 µm (on request), No membrane frame (on request), Custom thickness (on request)
Membrane Frame Material
PTFE (where a membrane frame is selected)
Included Accessories
Fittings, O-rings, Positioning pins, Screws, Handles
Not Included
Membranes, Electrodes
Wetted Materials
Nickel, PTFE, stainless steel 1.4571 fluid connectors, and selected O-ring materials
Electrical insulation
Insulation layers
