Screen Printed Carbon Electrode (Flexible)
Price on request
Get pricing and product details from General Graphene.





Our C3 Electrode is a disposable sensing platform developed using a uniform and pure carbon film deposited directly onto alumina substrates via chemical vapor deposition (CVD). The device consists of a pristine carbon-based working and counter electrode, and an Ag/AgCl reference electrode.
The capabilities of our C3 electrode include high chemical stability to support use with aqueous solvents, no pretreatment requirements, scratch resistance, low electrical resistance, wide electrochemical potential window, biocompatibility, and chemical inertness.
Compared to traditional screen-printed carbon electrodes that contain binders or additives, our C3 electrode consists solely of a pristine carbon layer as its active sensing surface – making them highly sensitive, stable, and reproducible in diverse electrolyte environments.
Quality Control
Raman, 4-Point Probe, SEM
Surface Area (% of additional relative to geometric)
0.46 ± 0.02
Conductivity (S/m)
7x10^4
Composition (EDS)
> 99% C (No Binders)
WE Material
Carbon (pristine)
Substrate Material
Alumina
CE Material
Carbon (pristine)
WE Form
Circular
Growth Method
Chemical Vapor Deposition (CVD)
Sheet Resistance (ohms/sq)
7.3 ± 0.6
Substrate Thickness (um)
500
WE geometric area (mm^2)
12.56
RE Material
Ag/AgCl
Carbon Thickness (µm)
2.3 ± 0.2

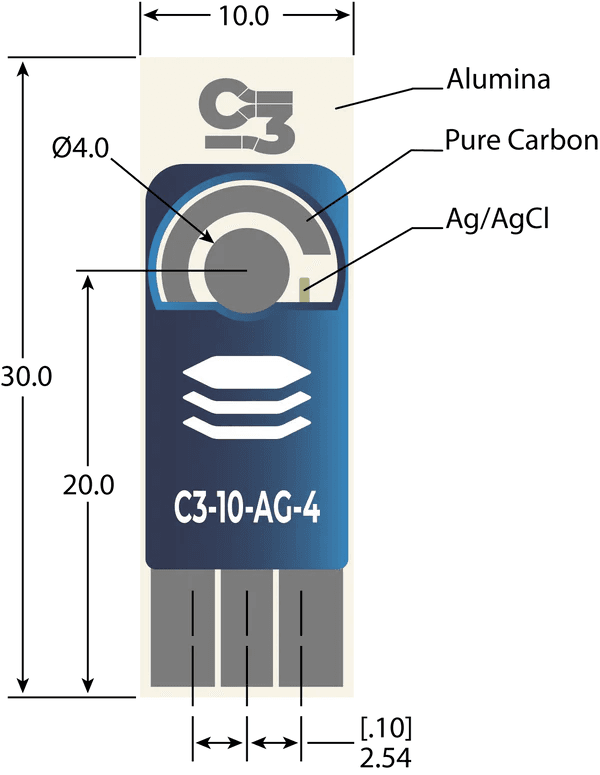

Dimensions
10 mm × 30 mm × 0.50 mm
Chemical Stability
Binder free, high for most solvents
Applications
Biosensing
Active Area Disk Diameter
4 mm (WE)
Electrode Type / Role
Miniaturized Electrochemical Platform
