Single Junction Ag/Ag2SO4 - Glass-bodied
Ionode

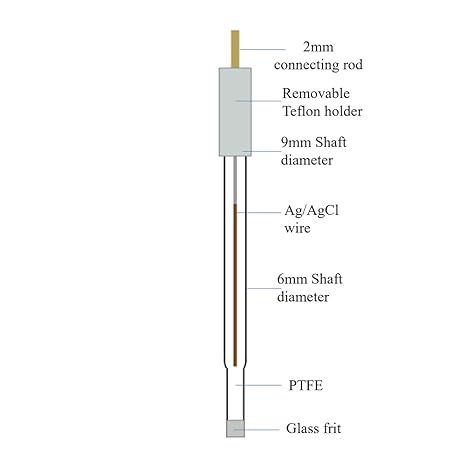

The Ag/AgCl reference electrode with a Ceramic porous frit provides accurate Electrochemical measurements in neutral and slightly acidic environments. Its strong construction and use of high-quality materials assure long-term durability and minimum potential drift. The 3M KCl electrolyte filling, along with the ability to easily refill with specific concentrations, provides researchers with unparalleled flexibility for tailored experimental conditions. The PTFE holder adds mechanical stability, reducing the risk of breakage during handling. Its non-stick nature facilitates easy cleaning, preventing contamination between experiments. Compatible with the standard borosilicate glass body 6mm diameter. The gold-coated copper connecting rod helps to link the electrodes to potentiostat and galvanostat for precise control of potential and current.
Pack size
2 pcs
Electrode Type / Role
Reference Electrode (RE)
Reference Electrode Type
Ag/AgCl (3M KCl)

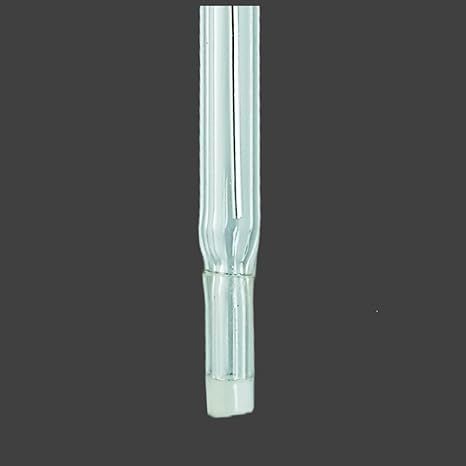

Junction/Frite Material (Reference Electrode)
Ceramic porous frit
Recommended pH (Reference Electrode)
Neutral, Slightly Alkaline
Refillable (Reference Electrode)
Yes
Electrode Body Material
Borosilicate Glass

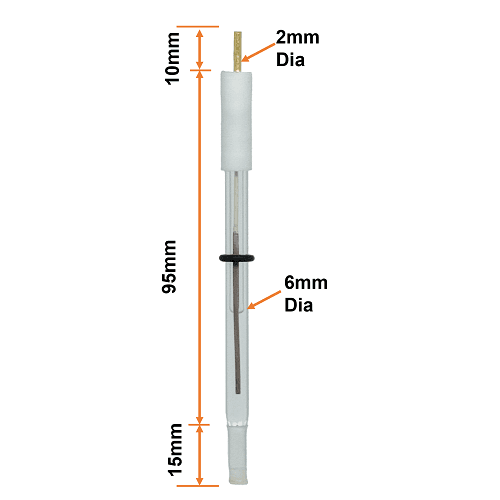

Body Diameter (lower)
6 mm
Electrode Body Length (mm)
120 mm
Sent directly to MTX Labs
Sent directly to MTX Labs
Electrode Connector Type
Copper connecting 2mm dia rod
Electrode Mount / Seat
6 mm rod (O-ring seat)
Reference Electrode System
Ag/AgCl
