Metal Electrode Silver
OrigaLys

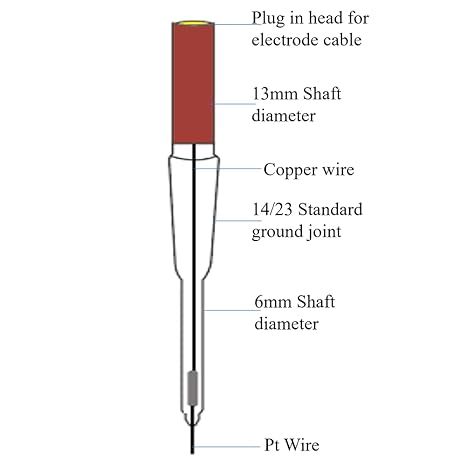

The electrode incorporates a platinum wire, renowned for its robust corrosion resistance and stability in the face of electrochemical reactions, ensuring precision in measurements. Its versatility shines as it adeptly transitions between roles, functioning as a working electrode for primary measurements or seamlessly assuming the role of an auxiliary/counter electrode to complete circuits in diverse experimental setups. Further enhancing its usability, the electrode features a standard ground joint (14/23), facilitating effortless integration with MTX electrochemical cell tops. This standardized connection not only streamlines assembly but also offers researchers an easily adaptable solution for a range of electrochemical experiments. Banana connector pin 4mm helps to link the electrodes to potentiostats and galvanostats for precise control of potential and current. The fused Pt with glass body increases the utility of electrode multiple times. Since the fused part airtight with Pt surface, it allows user to dip the electrode along with its lower glass body without any contamination.
Pack size
2 pcs
Electrode Type / Role
Counter Electrode (CE)
Electrode Body Material
Glass

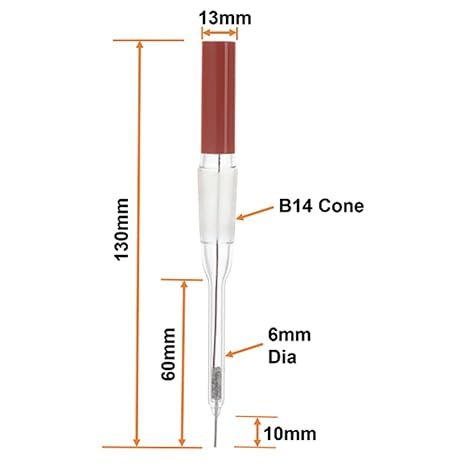

Body Diameter (lower)
6 mm
Electrode Body Length (mm)
120 mm
Electrode Connector Type
4 mm banana pin
Electrode Mount / Seat
B14 ground joint (14/23)
Active Area Geometry
Wire
Active Material Purity in %
99.95 %
Sent directly to MTX Labs
Sent directly to MTX Labs
Electrode Active Material (Working/Counter)
Platinum (Pt)
