Platinum (Pt) wire - 805/SPG/12
AMEL

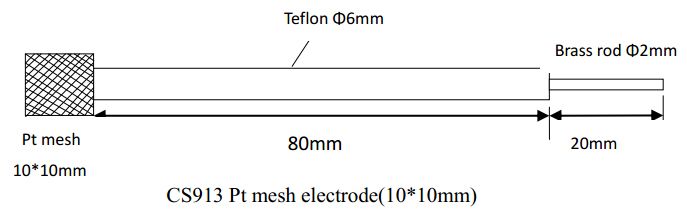

Platinum mesh electrode - 10x10mm
Platinum mesh electrode - 10x10mm
Description
- Platinum mesh electrode
- 10 x 10 mm
- Body diameter: 6 mm
- Total length: 120mm
Specifications
General Electrode
Electrode Type / Role
Counter Electrode (CE)
Electrode Body Material
PTFE (Teflon)
Body Diameter (lower)
6 mm
Electrode Body Length (mm)
110 mm
Electrode Connector Type
Brass 2mm dia pin
Active Area Geometry
Mesh
Geometric Area
10 mm x 10 mm
Electrode Mount / Seat
6 mm rod (O-ring seat)
Electrode Active Material (Working/Counter)
Platinum (Pt)
