Platinum mesh electrode - 20x20mm
Corrtest Instruments
Pt Foil/sheet/plate Electrode B10 (Pack of 2)
Pt Foil/sheet/plate Electrode B10 (Pack of 2)
Description

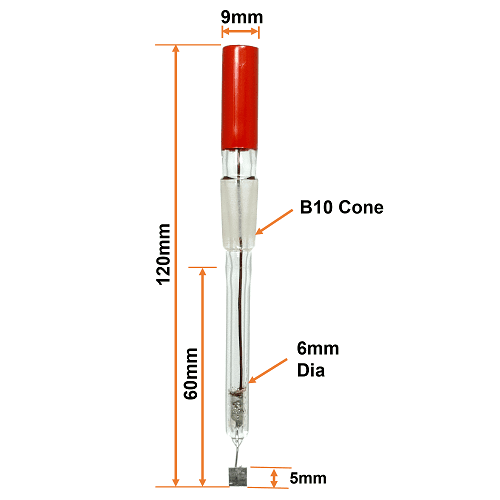

This electrode contains a thin square sheet of platinum mounted in a glass tube with a platinum wire. This electrode is used as a counter electrode in most of the electrochemical measurements. The standard ground joint 10/19 of the electrode, enables easy assembly with MTX electrochemical cell tops.
Specifications
General
Pack size
2 pcs
General Electrode
Electrode Type / Role
Counter Electrode (CE)
Electrode Body Material
Glass
Body Diameter (lower)
6 mm
Electrode Body Length (mm)
120 mm
Electrode Connector Type
4 mm banana pin
Electrode Mount / Seat
B10 ground joint (10/19)
Active Area Geometry
Sheet
Active Material Purity in %
99.95 %
