Silver/Silver ions (Ag/Ag+) Reference Electrode (Pack of 2 pcs)

See all products by MTX Labs
Price: 150 USD

Description

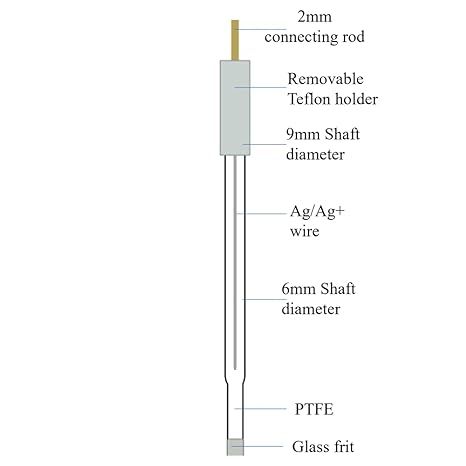

The Mini Ag/Ag+ ions reference electrode stands out for its accuracy in electrochemical measurements within non-aqueous mediums, featuring a Ceramic porous frit for optimal performance. Built with durability in mind and utilizing high-quality materials, it ensures long-term stability and minimal potential drift. Customizable to your experimental requirements, the electrode allows easy solution filling, catering to non-aqueous environments. The inclusion of a PTFE holder increases mechanical stability and lowers the chance of it breaking during handling. Its non-stick qualities also make cleaning easier and avoid contamination between tests. Compatible with a 6mm diameter standard borosilicate glass body, this electrode is further enhanced by a gold-coated copper connecting rod, enabling precise control of potential and current when connected to potentiostat and galvanostat instruments.

Specifications

General Electrode

Pack Size

2 pcs

Electrode Type / Role

Reference Electrode (RE)

Reference Electrode Type

Ag/Ag+

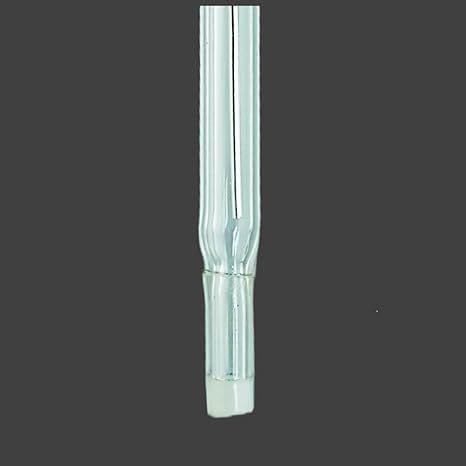

Junction/Frite Material (Reference Electrode)

Ceramic porous frit

Refillable (Reference Electrode)

Yes

Electrode Body Material

Borosilicate Glass

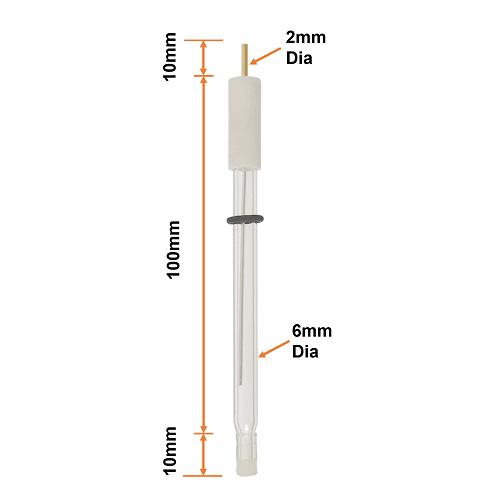

Body Diameter (lower)

6 mm

Electrode Body Length (mm)

120 mm

Electrode Connector Type

Gold-coated copper connecting 2mm dia rod, Pin/Rod

Electrode Mount / Seat

6 mm rod (O-ring seat)

Reference Electrode System

Ag/Ag+
