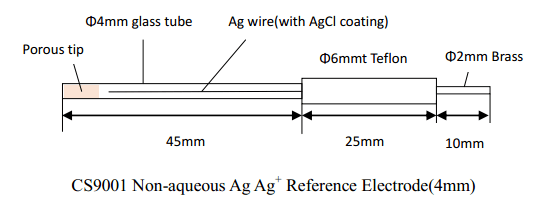

Non-aqueous Ag/Ag+ reference electrode
Non-aqueous Ag/Ag+ reference electrode
Description
- Non-aqueous Ag/Ag+
- Body diameter: 4 mm
- Total length: 80 mm
Specifications
General Electrode
Electrode Type / Role
Reference Electrode (RE)
Reference Electrode Type
Ag/Ag+
Junction/Frite Material (Reference Electrode)
Porous glass
Electrode Body Material
Glass
Body Diameter (lower)
4 mm
Electrode Body Length (mm)
80 mm
Electrode Connector Type
Brass 2mm dia pin
Electrode Mount / Seat
6 mm rod
Reference Electrode System
Ag/Ag+
