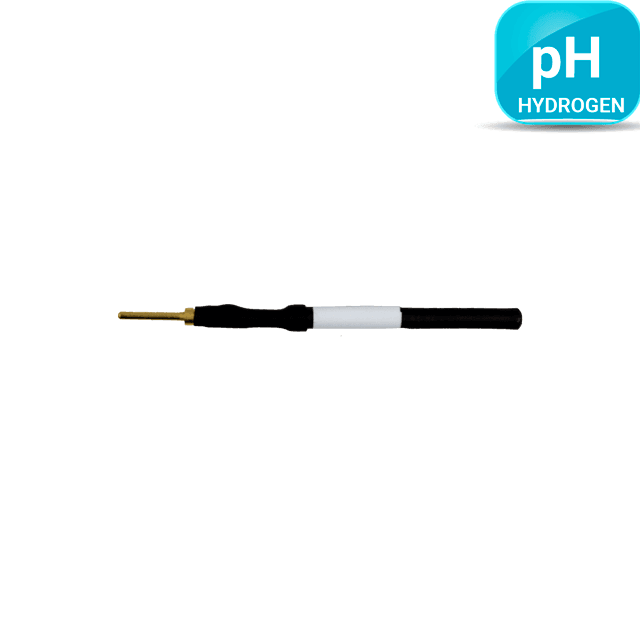

Nano ISE for pH (H⁺) — OD 2.5 mm
Nano ISE for pH (H⁺) — OD 2.5 mm
Description
Nano half-cell Ion Selective Electrode for pH (H⁺) measurement. Ultra-compact format with OD 2.5 mm, designed for use with the Nano ISE probe and Imacimus 2 analyser.
Key Specifications
- Electrode type: Nano ISE, half-cell
- Outer diameter: 2.5 mm
- Nernstian slope: -54 ± 5 mV/decade
- pH operating range: 2 – 9.5
- Response time: < 60 s
- Accuracy: ±4%
- Repeatability: ±10%
- Membrane type: Plastic pH membrane (non-glass applications suitable)
- Compatible with: Imacimus 2 meter, Nano ISE probe (CC-1BNC-SC2 cable required)
Specifications
Chemicals
Target Ion / Compound
Nitrite (NO2-)
Volume (mL)
250 mL
Ion-Selective Electrodes (ISE)
Measured Ion
pH (H⁺)
Electrode Format
Nano ISE (OD 2.5 mm)
Outer Diameter (mm)
2.5 mm
Nernstian Slope (mV/decade)
-54 ± 5
ISE pH Operating Range
2 – 9.5
Response Time (s)
< 60 s
ISE Accuracy
±4%
