Complete Redox-Flow Battery Setup

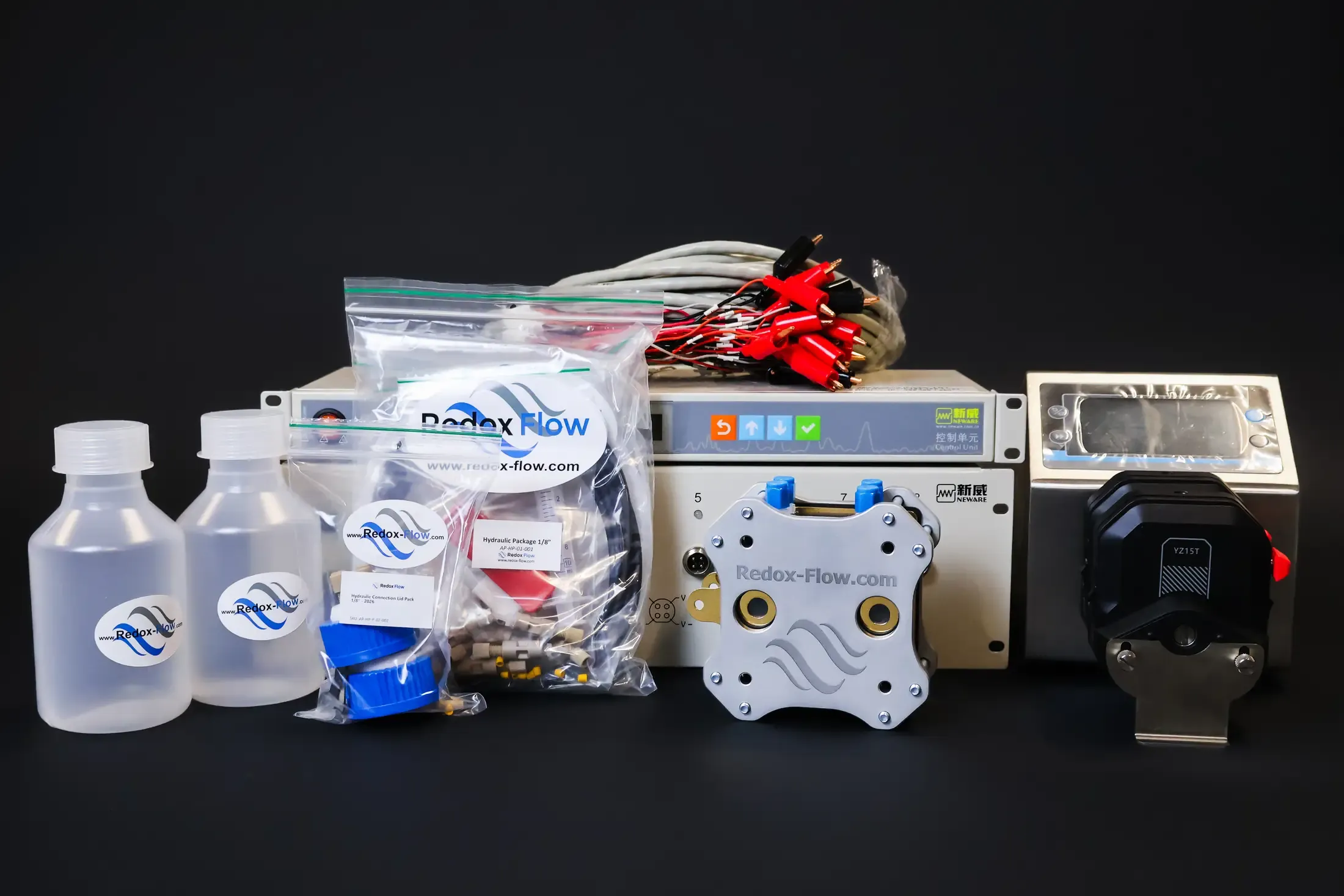

The Complete Redox-Flow Battery Setup bundles a full lab-scale RFB test rig around a choice of two proven cell geometries, so new flow battery programs can start cycling cells in days rather than weeks. Researchers select either the interdigitated A-Cell, suited to thin electrodes under roughly 1.5 mm, or the flat-surface S-Cell for thicker felt electrodes, both fixed at a 2.5 × 2.5 cm active area for direct comparability. An 8-channel battery tester with software, a 2-channel peristaltic pump, and a complete fluidic connection kit come pre-configured, leaving only electrodes, membranes, and electrolyte to be selected.

• Choice of Cell Geometry: A-Cell (interdigitated, thin electrodes) or S-Cell (flat, thick electrodes) to match the electrode format under test.
• Fixed Reference Active Area: 2.5 × 2.5 cm active area for consistent, comparable cycling data.
• Integrated Cycling Hardware: 8-channel battery tester with software included for immediate charge/discharge testing.
• Complete Fluidic Kit: 2-channel peristaltic pump, tubing, fittings, and reservoir flasks with specialized lids included.
• Predefined for Speed: Standardized components minimize setup decisions for labs starting their first RFB campaign.
• Additional add-on: Electrodes and membranes
