S-Stack – Redox Flow Battery Stack
Price: from 3410 EUR
Description

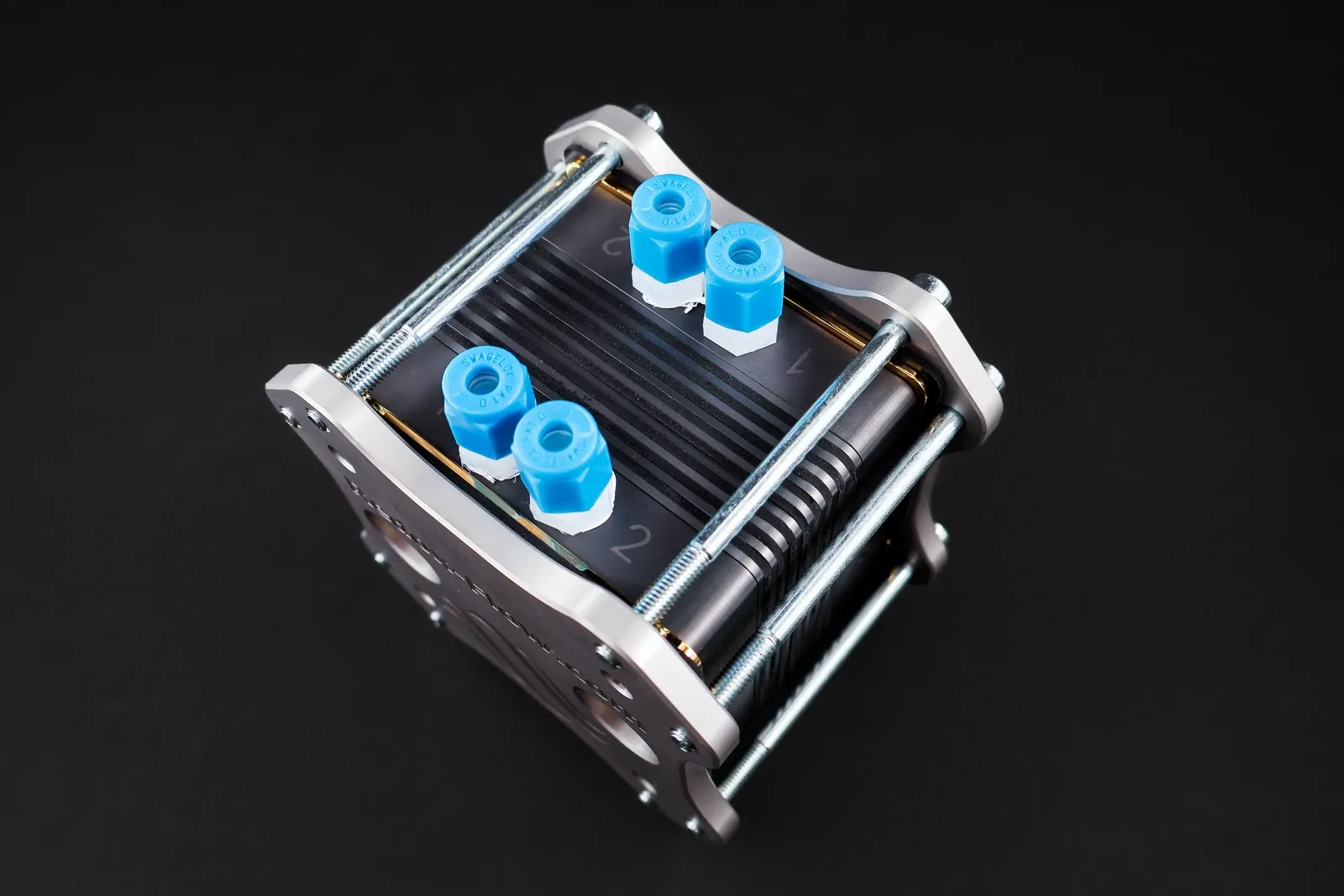

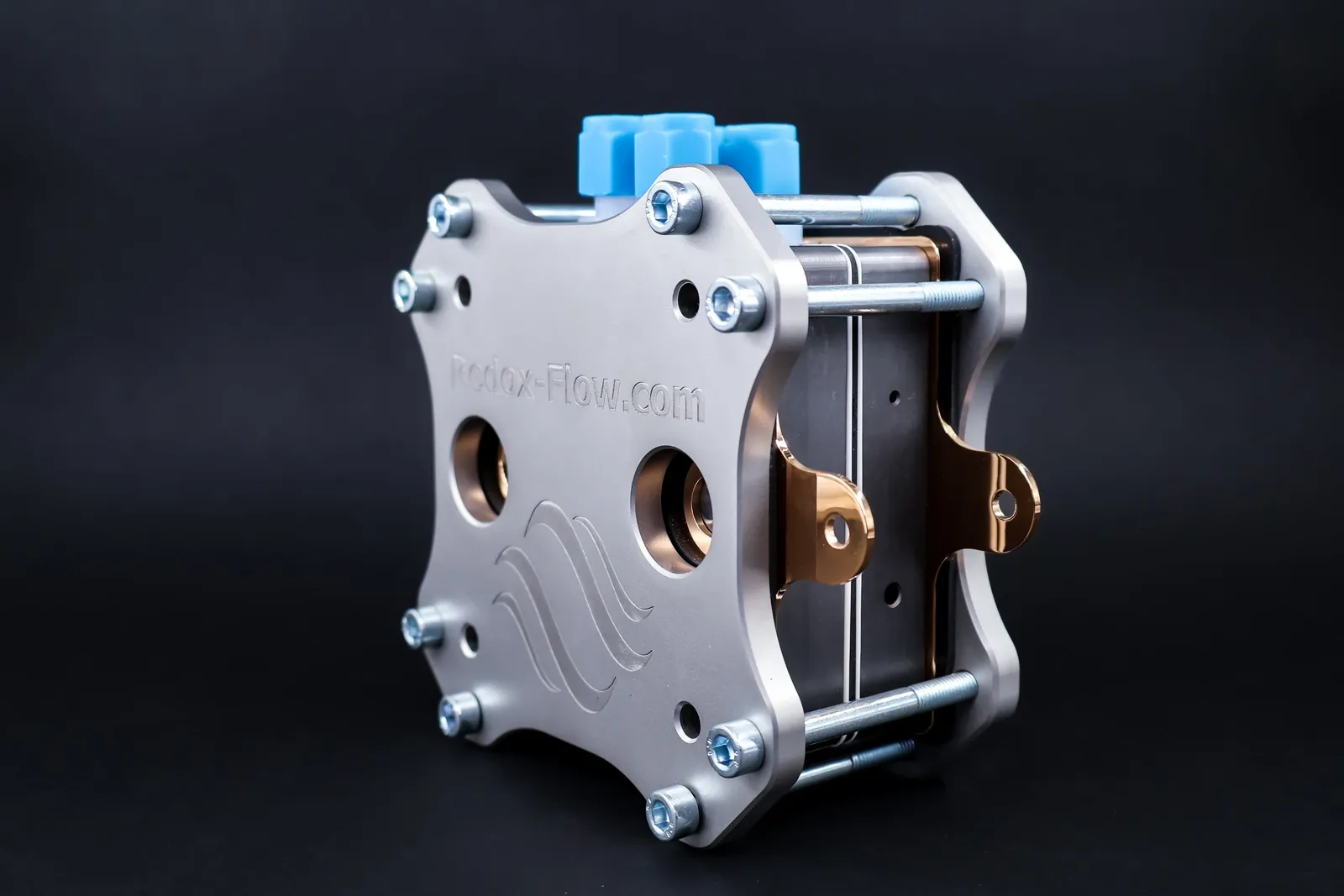

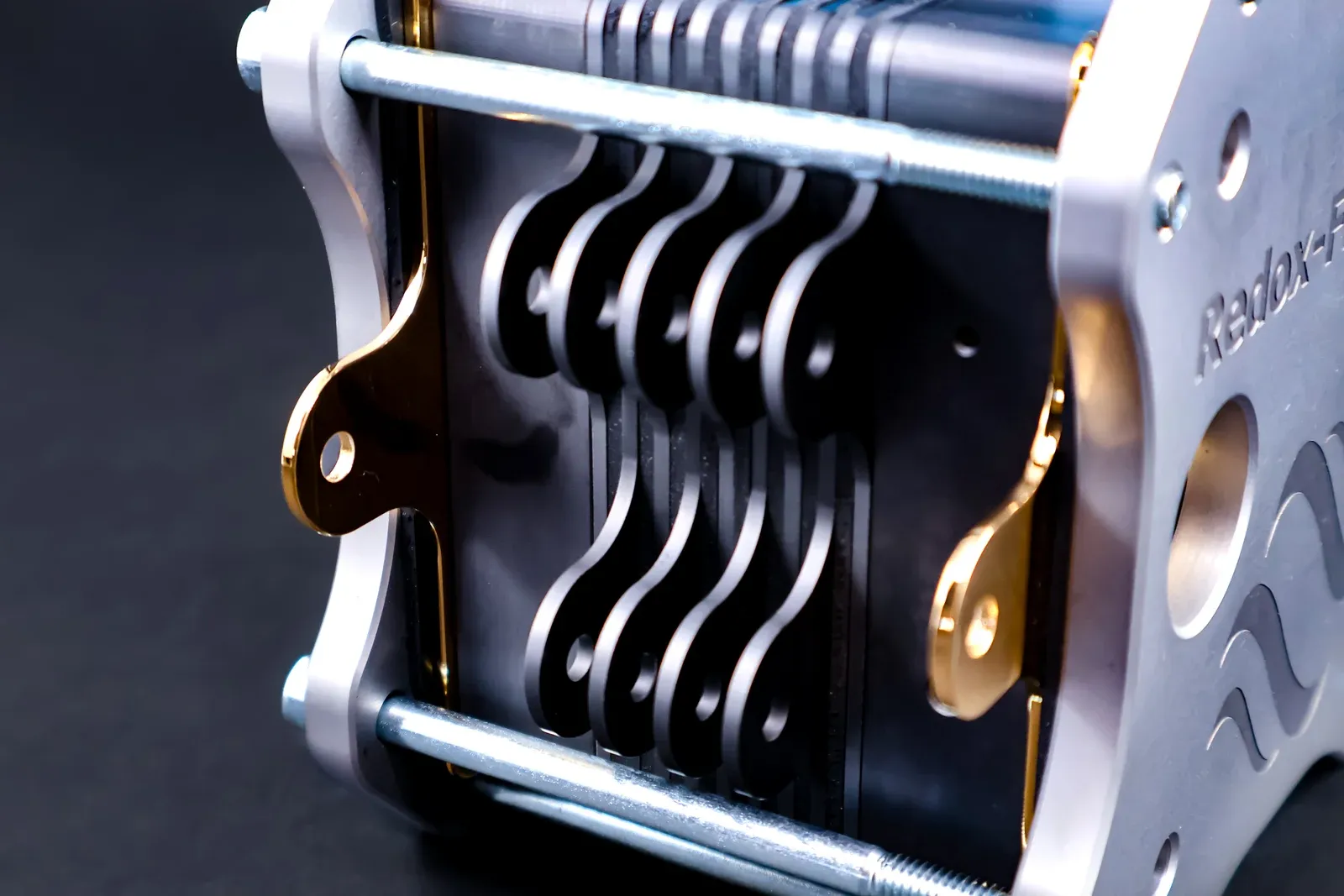

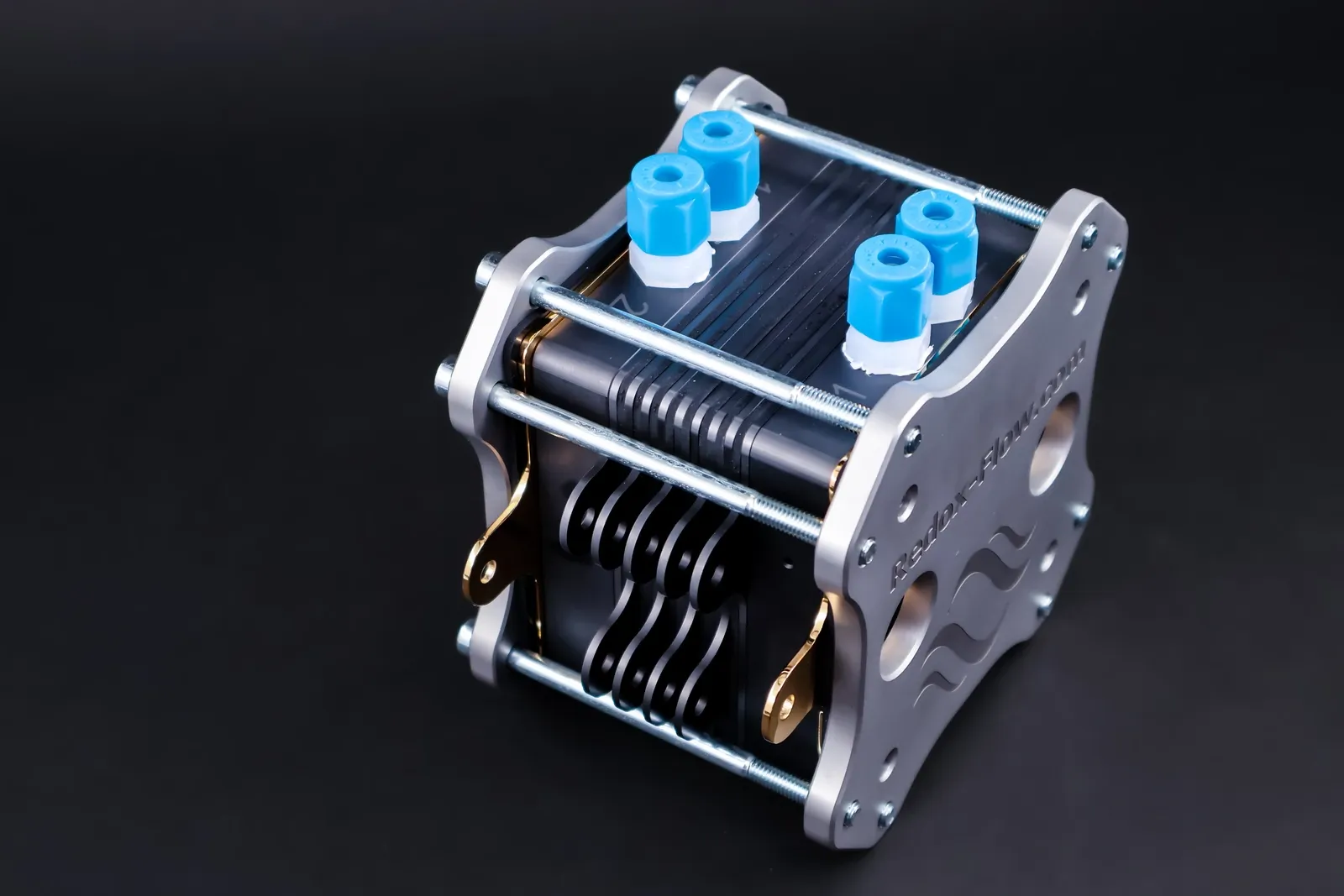

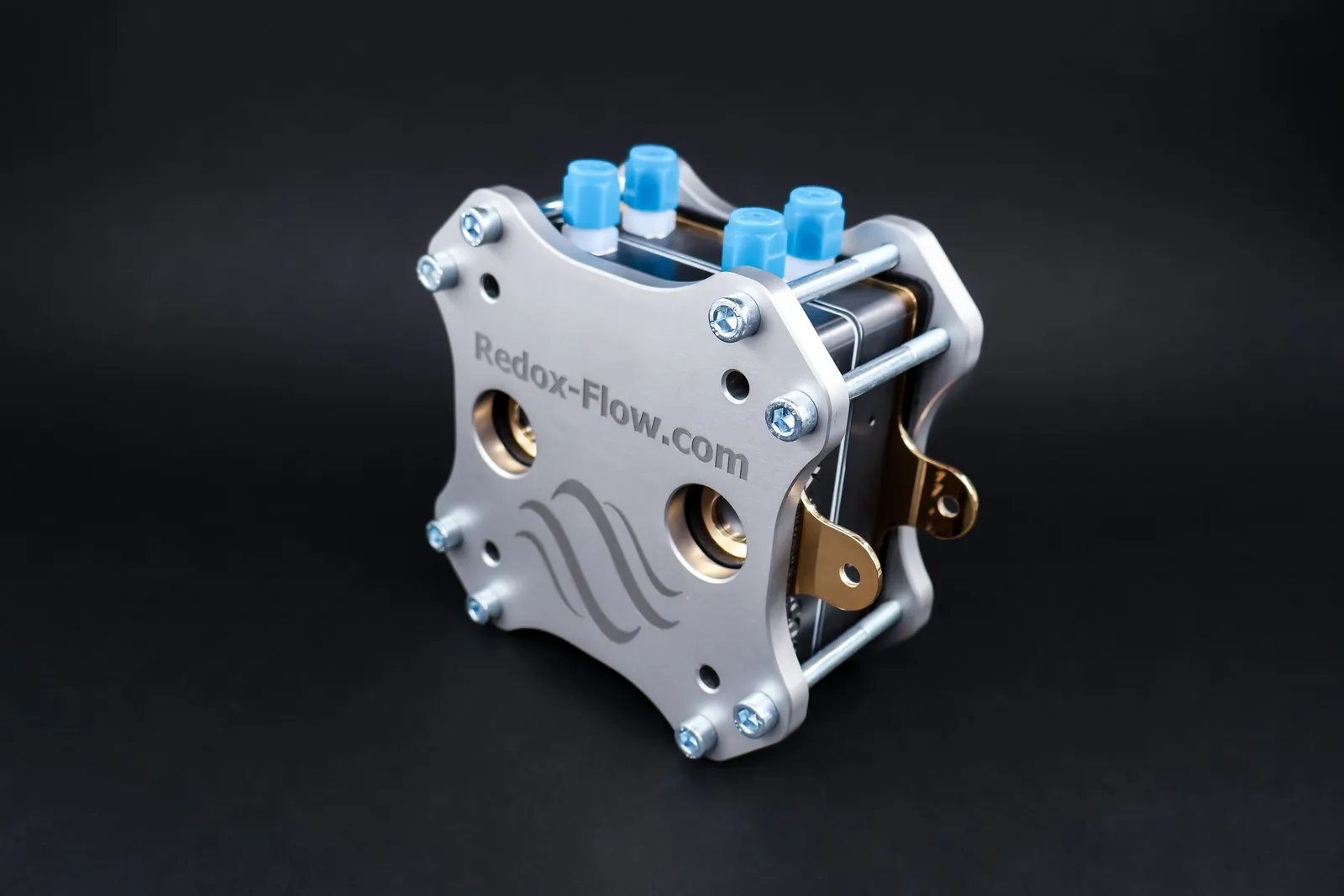

The S-Stack is a configurable flow battery research stack developed for controlled investigation of multi-cell behavior, component interactions, and scale-relevant performance in redox flow battery systems. Its flexible stack architecture enables researchers to bridge the gap between single-cell testing and stack-level validation without complex custom assemblies.
- Configurable from single-cell to nine-cell operation for systematic scale-up studies
- Supports thick, porous electrodes and adjustable compression for realistic battery conditions
- Allows for direct measurement of individual cell voltages on bipolar plates for accurate stack diagnostics
- Graphite-based flow components and chemically stable seals ensure compatibility across a wide pH range
- Stack design balances hydraulic pressure and shunt current control for reproducible multi-cell operation
Specifications
General
Dimensions
14 cm x 14 cm x 8 cm and up (thickness depends on configuration)
Max. Operation Temperature
Up to 95 °C
General Cells
Flow Body Material
Graphite
Current Collector Material
Gold-plated copper
Active Area Cell
5 cm x 5 cm
Flow Fields
Flat Current Collectors
Sealing gaskets material
PTFE, Ethylene propylene diene monomer (EPDM), Viton®
Available Gaskets Thickness (mm)
0.05 (PTFE)
End Plates Material
Stainless Steel
Chemical Resistance (pH Range)
Full pH range – depending on current collector and gasket materials
Fittings and Tubing Connection
Tight Swagelok fittings for 1/8” or ¼” tubing
