BM FC EC 15mL - Bottom Mount Front Contact Electrochemical Cell, 15mL

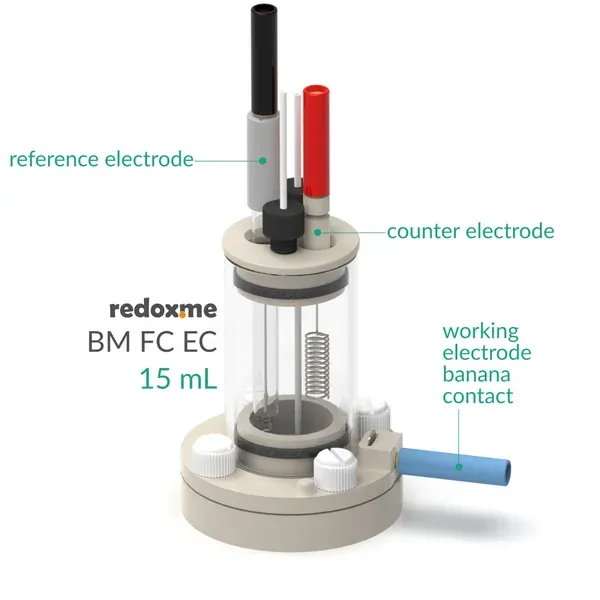

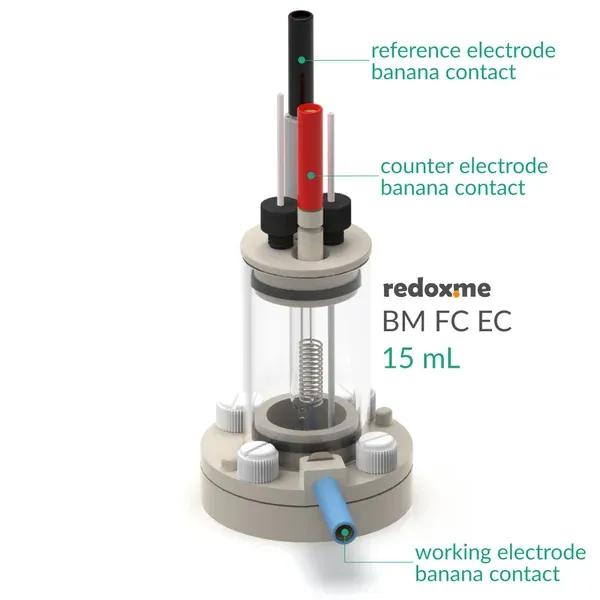

This is a static voltammetry cell with variants for different sample dimensions. The sample is loaded from the bottom via screw mount, while counter or/and reference electrodes are mounted in the lid as either 2-, or 3-electrode configuration. The cell is constructed with materials that are inert to the sample environment (glass and PEEK), and it can be used with FKM/EPDM O-rings or FFKM O-rings for aqueous or organic electrolyte requirements respectively. The construction is gas-tight and inert gas can be bubbled through the electrolyte to remove and exclude contaminants such as air or water. The cell is also available as a magnetic mount variant for applications where screw assembly is not preferred.

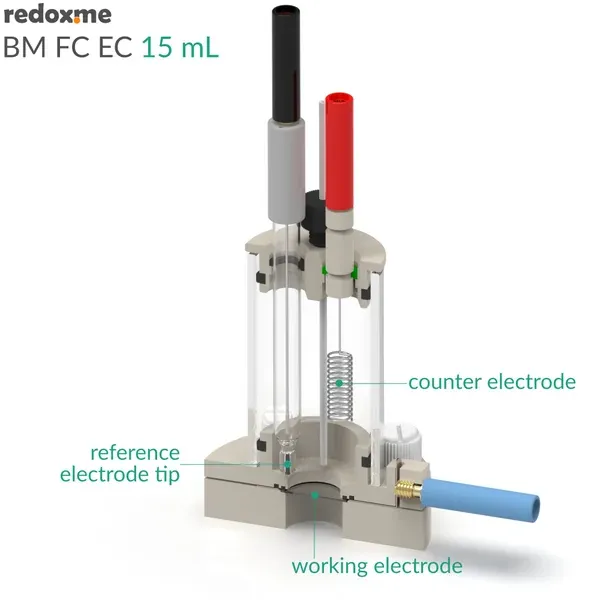

Application note The reference electrode tip should be placed close to the sample surface to ensure a negligible potential drop throughout the electrolyte solution during low-current experiments. Various auxiliary electrodes are suitable for this cell including metal wire, metal plate electrodes and carbon-based electrodes (graphite or glassy carbon). If a purge gas is used, stop the flow during experiments for better results.

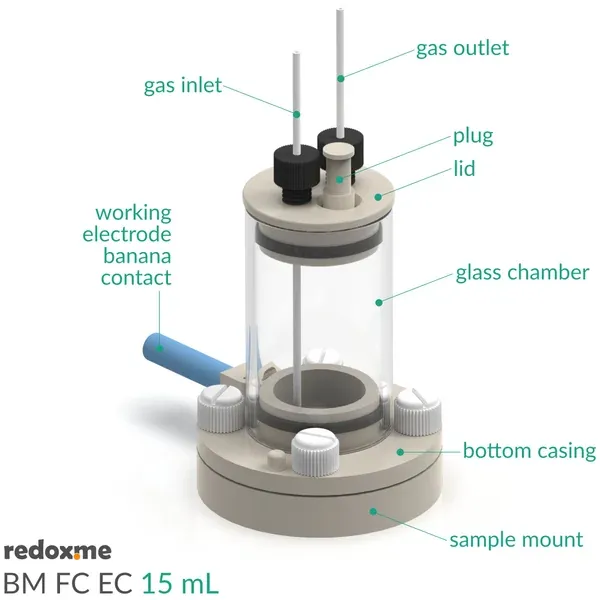

Product includes

• 1 x lid (0001CPEMA)
• 1 x glass chamber (0002PGLMA)
• 1 x bottom casing
• 1 x sample mount
• 1 x tantalum contact
• 1 x plug
• 1 x set of Nylon screws (0032PNYCM)
