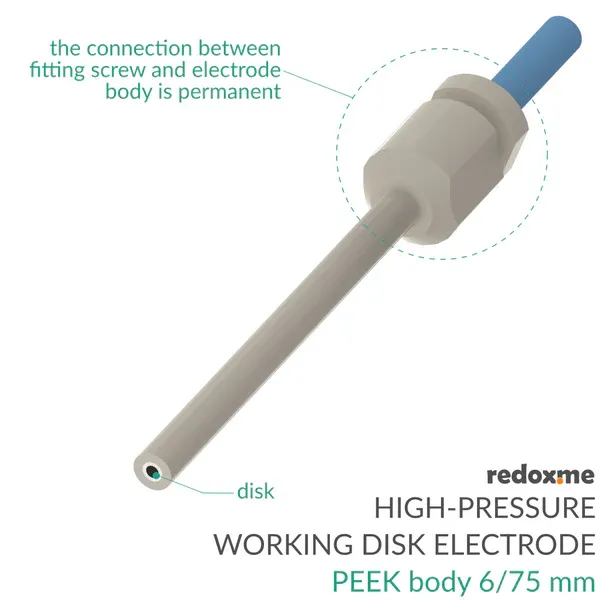

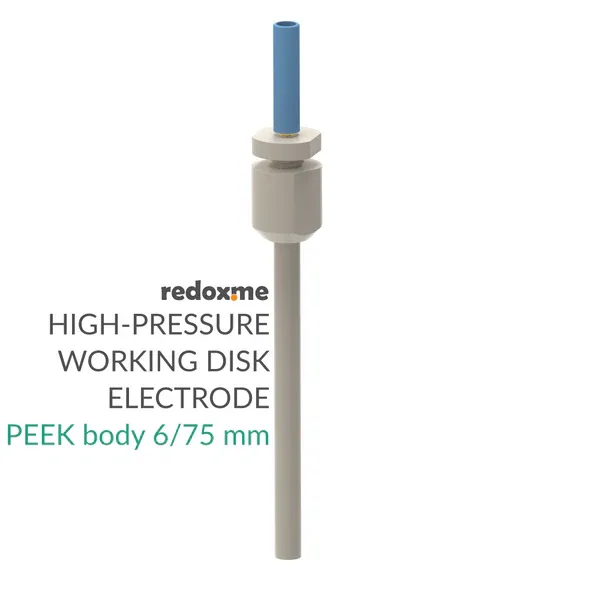

High-Pressure Working Disk Electrode - PEEK body 6/75 mm

See all products by Redoxme

Price: On Request

Description

This is a high-pressure standard working electrode in which a disk of electrode material (glassy carbon, gold, platinum, titanium, silver, palladium, copper or boron-doped diamond) is embedded into the PEEK body by a compressed PTFE/PEEK sleeve. It well fits aqueous and organic solvent electrolyte requirements.

Application note The high-pressure disk electrode is installed in the high-pressure cell lid to be immersed in the ion-conducting solution as a working electrode. An electric current is passed between the working electrode and the counter electrode for a certain amount of time. The high-pressure electrodes should be installed in the high-pressure cell using Swagelok electrode fitting 6 mm OD. After the experiment, the electrode should be washed several times with ethanol or isopropanol. If the disk electrode was used as a current collector with other electrode material, or when there are visible traces of material absorption, it should be polished down to the mirror surface after the experiment is completed. Instruction on maintenance is provided on the Electrode Polishing Kit product page.

Product includes 1x high-pressure working disk electrode 1x glass tube

Specifications

General Electrode

Active Area Disk Diameter

2 mm, 3 mm

Electrode Active Material

Boron-doped diamond (BDD), Glassy Carbon (GC), Titanium (Ti), Gold (Au), Silver (Ag), Platinum (Pt), Palladium (Pd), Copper (Cu)

Electrode Type / Role

Working Electrode (WE)

Active Area Geometry

Disk

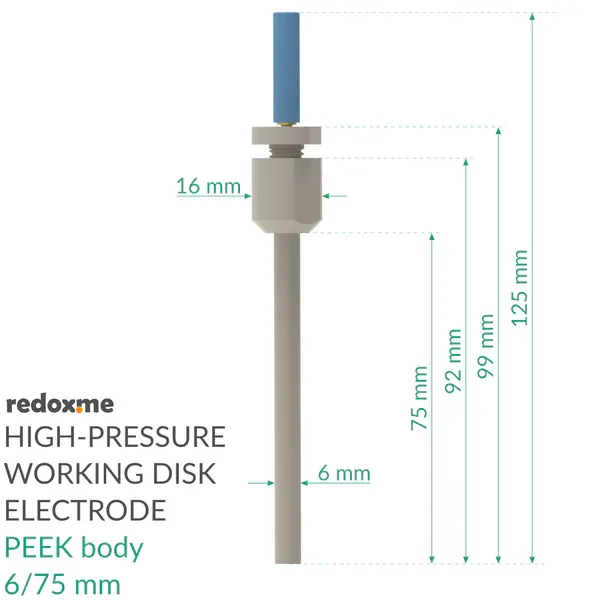

Body Diameter (lower)

6 mm

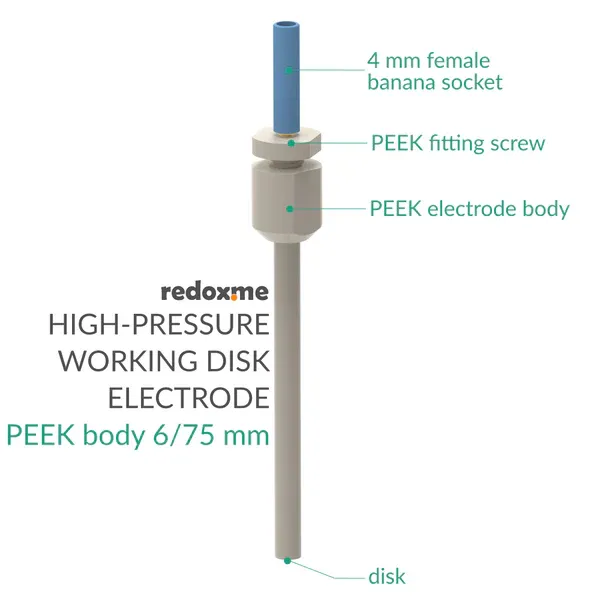

Electrode Connector Type

4 mm female banana socket

Electrode Body Length (mm)

125 mm

Electrode Body Material

PEEK with PTFE

General

Maximum pressure

50 bar

Maximum Temperature

240 °C (PEEK cup limitation)
