Operando XRD EC H-Cell, min 2theta of 5 deg

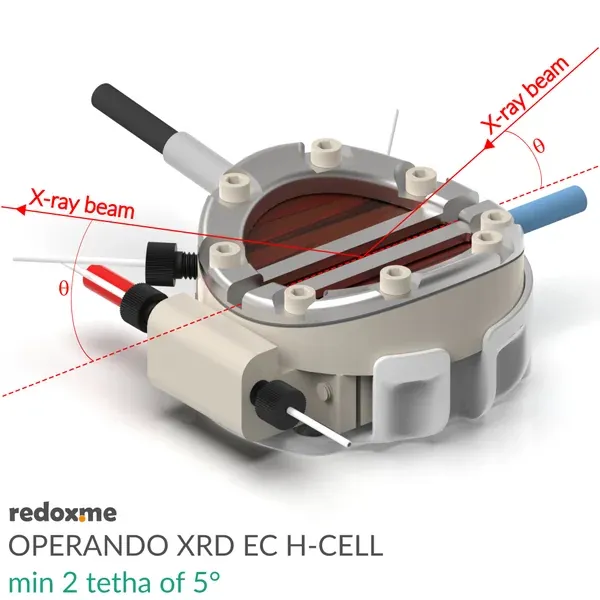

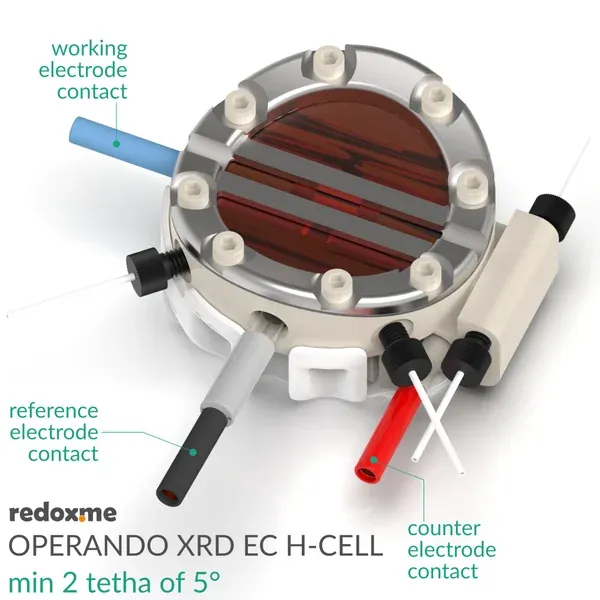

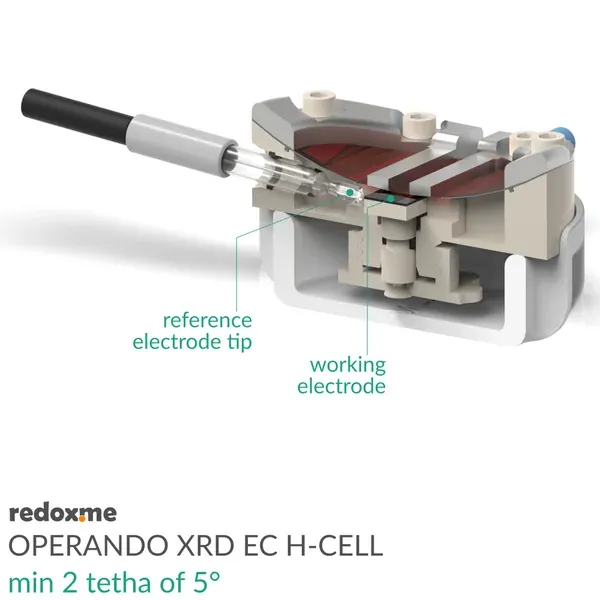

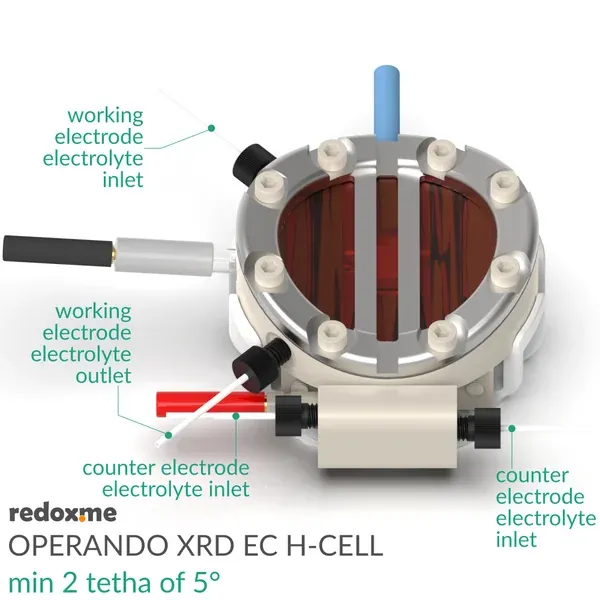

This is a vertically mounted electrochemical cell for operando goniometric X-Ray Diffraction (XRD) during electrochemical experiments. The cell can be used as a two-compartment H-cell with the working and counter electrodes separated by a membrane, or as a single-compartment cell without a membrane. The working electrode is mounted on a height-adjustable centre post and can accept samples up to 25 mm x 25 mm and up to 4 mm thick. Electrical contact to the working electrode is made via a "wet" tantalum foil which, with the Kapton foil window, determines the electrolyte thickness (standard 300 um), allowing lower-energy X-Ray sources and a minimum 2theta of 5 deg. The cell consists of a multipart PEEK body with a separable counter electrode compartment. Both compartments are fitted with tubing for independent electrolyte filling and recirculation. It accepts standard 6 mm reference electrodes and 6 mm diameter rod or helix counter electrodes. Available in two variants for aqueous or organic electrolytes.

Application note This XRD EC H-cell is optimised for demanding operando electrochemical and XRD experiments. The minimum electrolyte thickness and geometry allow for real-time measurements of ion intercalation in electrochemically active materials or monitoring of electrochemical processing (deposition etc.) using either low or high energy X-ray sources with a minimum 2theta value of 5 deg. It is compatible with most goniometric XRD instruments and can be customised on request.

Product includes

• 1 x WE chamber, 1 x CE chamber, 1 x clamp screw, 1 x sample size adapter
• 1 x WE plunger, 1 x SS16L window holder, 1 x set of SS16L screws
• 1 x set of PEEK screws (WE/CE compartment), 1 x set of Nylon screws (cell holder)
• 1 x tantalum wet contact, 1 x set of Kapton windows (5 pcs)
• 1 x cell holder (variant dependent), 1 x set of O-Rings, 1 x window gasket, 1 x plug
• 1 x Metal Wire Auxiliary Electrode (35HX15 0.6/235 mm)
• 1 x Ag/AgCl or Ag/Ag+ reference electrode
