ComPrep
Price: On Request
Description

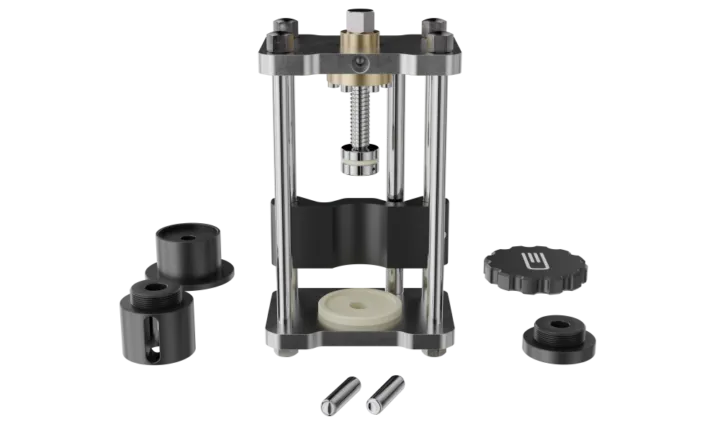

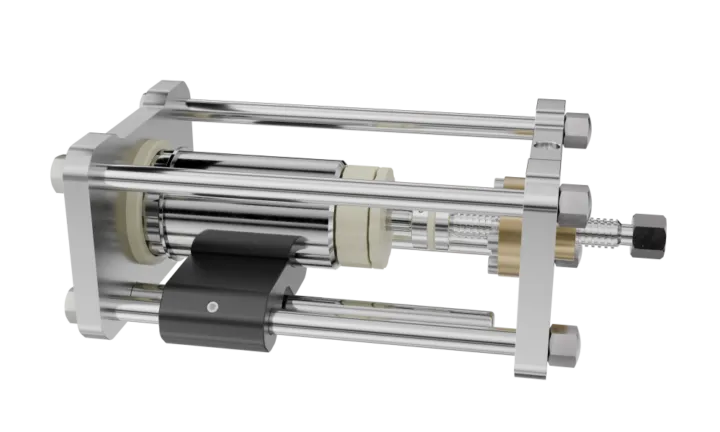

The ComPrep can be used to operate cylindrical CompreCells under pressure, for sample pre-pressing in CompreCells and for sample removal if necessary.
- Compatible with all types of cylindrical CompreCells
- Torque-based force application
- Electrically insulates the test cell, offers 2 mm and 4 mm female connectors.
- Small and cost-efficient solution to operate CompreCells in temperature chambers.
- Parallelize your measurements
Typical applications
Load or unload your CompreCells for use in CompreDrive or CompreFrame, or use the ComPrep directly as preparation and pressure frame. Directly connect a potentiostat.
- Pre-pressing of powder materials in CompreCells in a glove box
- Easy and reliable removal of pressed pellets from CompreCells
- EIS or cycling of CompreCells under pressure in temperature chambers
Specifications
General
Applications
Pressure frame
Storage conditions
Storage +10 to +40 °C, RH 0–80% (non-condensing), Non-corrosive atmosphere
Dimensions
25 cm x 14 cm x 10 cm (LxWxH), 30 cm x 14 cm x 27 cm (with lever & spindle)
Operating temperature
−40 to +100 °C (in climate chamber)
Battery testing
Product type (battery)
Pressure frame
Connectors
2 mm & 4 mm female banana connectors
Max. Applicable force
23 kN
Torque needed
40 Nm (for max force)
Lever force
200 N at lever (for max force)
Force application
Torque-based force application
Electrical insulation
Electrically insulated (2 mm & 4 mm connectors)
Stackable
Stackable (vertical & horizontal)
Form factor compatibility
Coin
