Pouch Cell Holder
Price: On Request
Description
Designed for researchers and engineers in the battery industry, our Pouch Cell Holder offers a reliable, versatile, and cost-effective solution for testing pouch cells. This robust fixture combines precision engineering with user-friendly features to streamline your battery testing process.
What's included
- Base with electrical contacts (4 mm banana sockets)
- Top frame
- 2x Force transfer plate
- 2x soft pad
- 3 sets of 5 springs with different spring rates (k):
- k = 18 N/mm (max. force = 925 N)
- k = 58.5 N/mm (max. force = 1815 N)
- k = 288 N/mm (max. force = 5400 N)
- sets of screws
Specifications
General
Dimensions
110 x 110 x 32 mm (h = 52 mm with springs)
Weight
1.5 kg
Battery testing
Form factor compatibility
Pouch
Product type (battery)
Pouch cell fixture
Connections

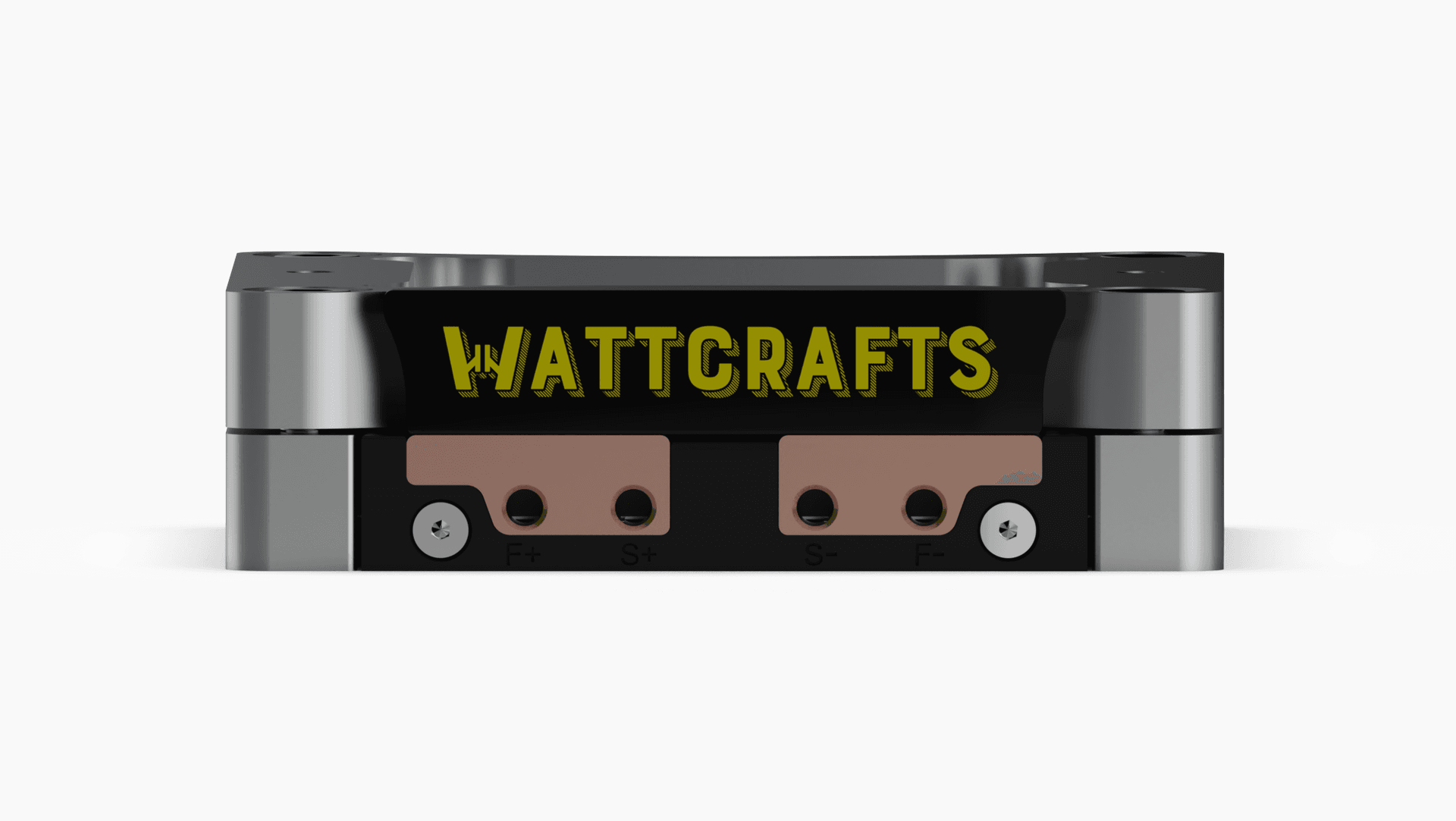

Pouch Cell Holder: 4-point (Kelvin) tabs clamp with banana connection (4 mm)
Max. Applicable force
5kN
Max. Electrode Size
80 x 80 mm
Allowed tab spacing range
12 mm - 60 mm (same side)
