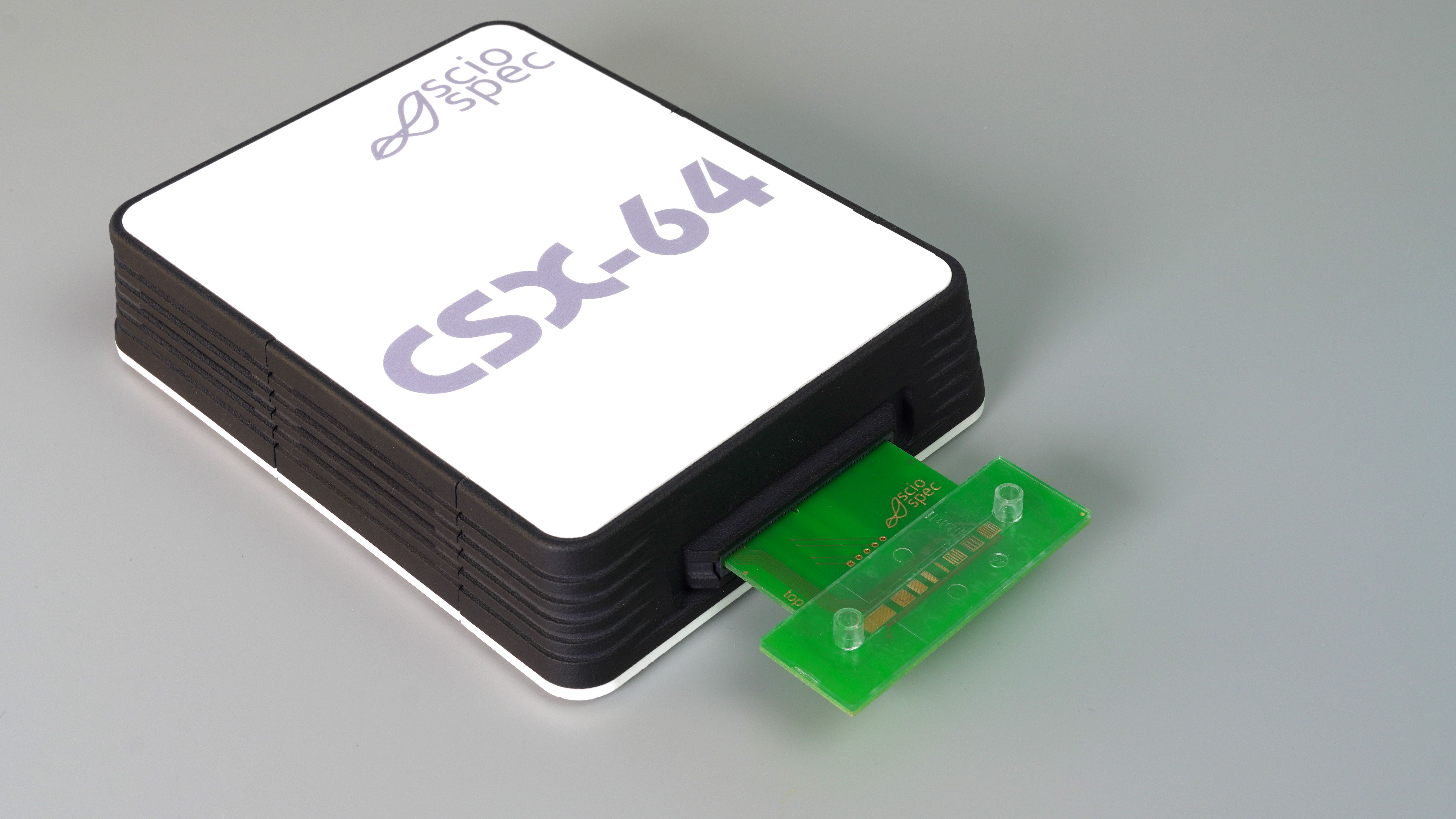

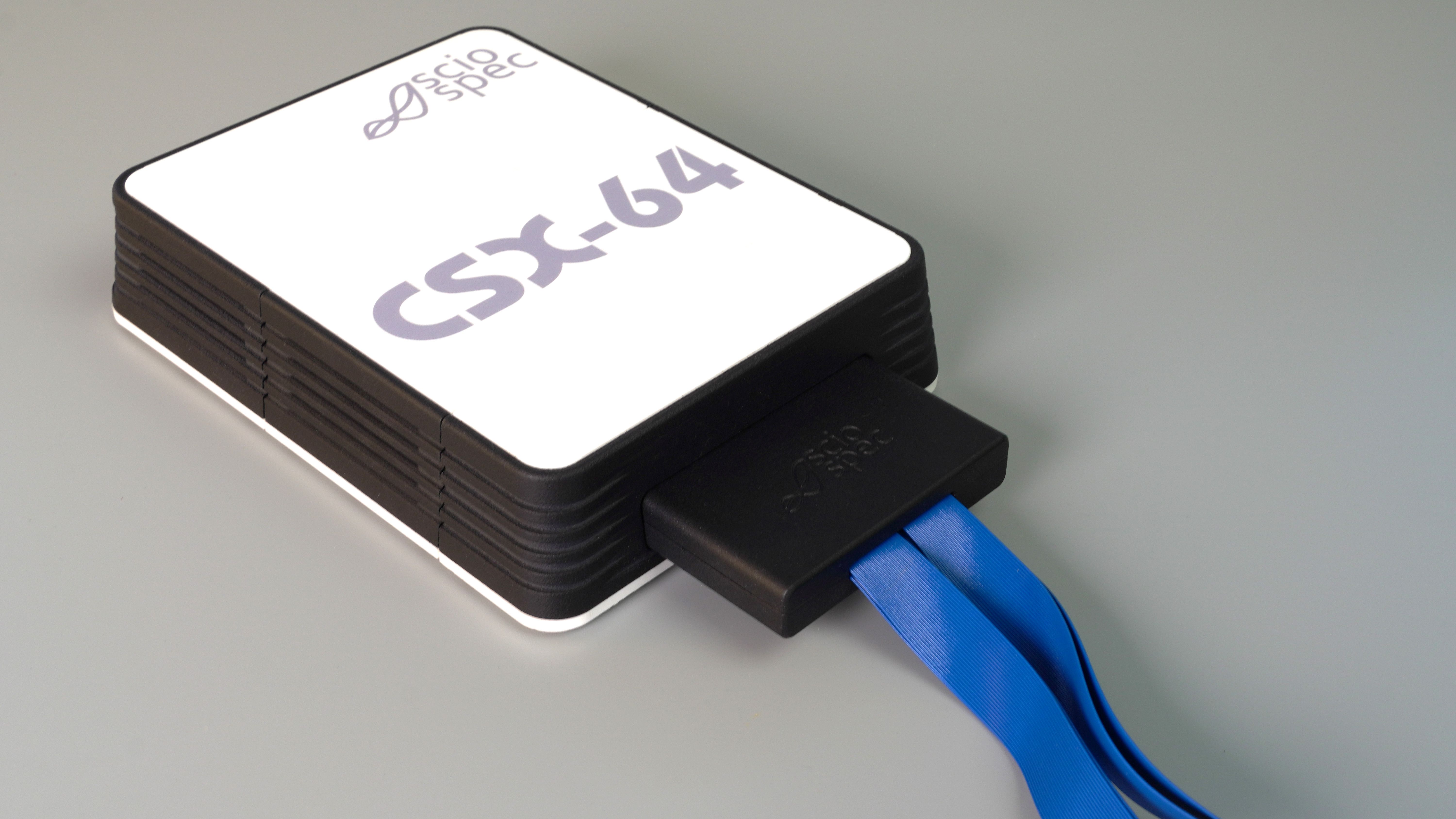

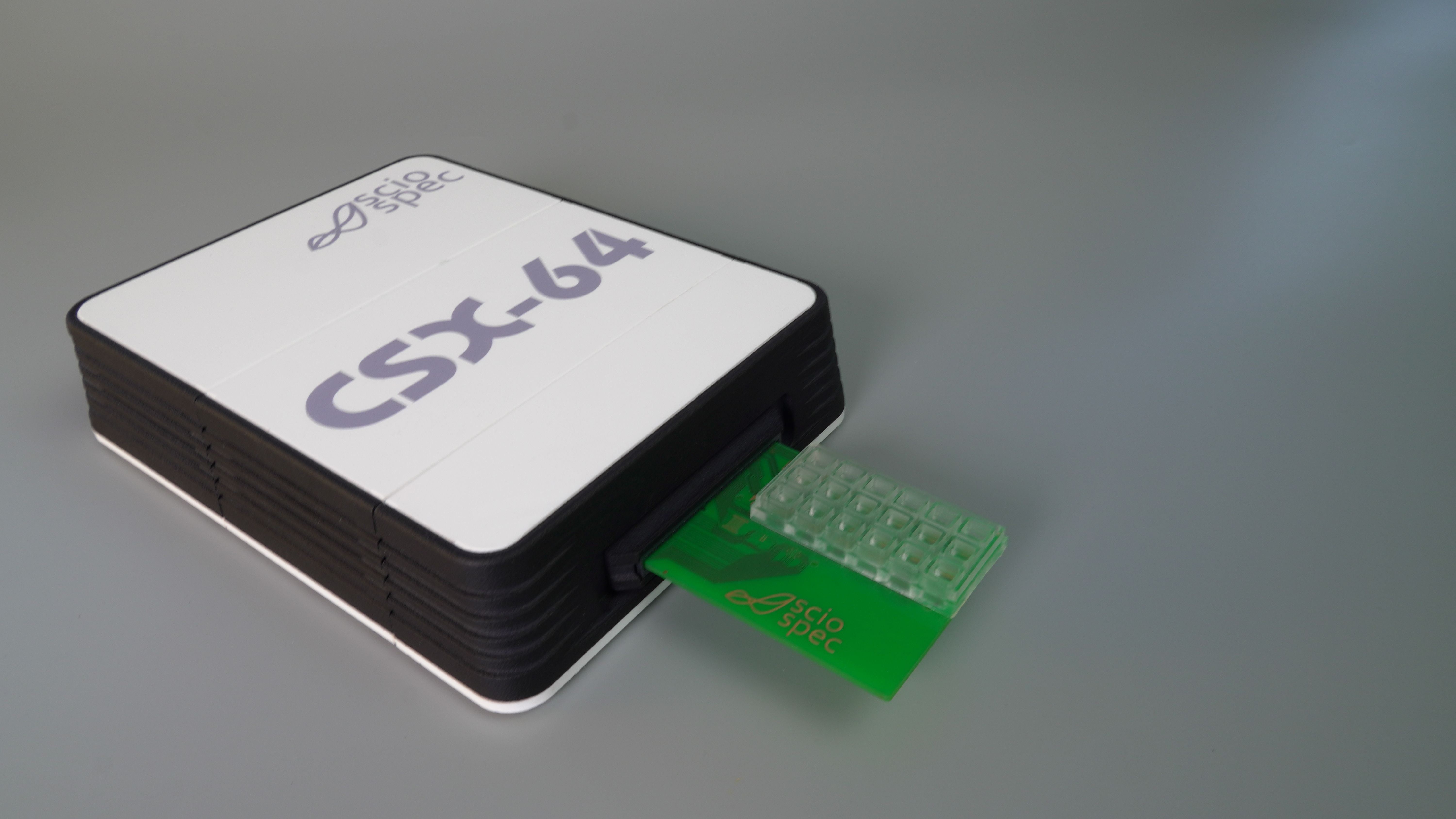

CSX-64

Compact multichannel potentiostat and impedance spectroscopy platform. Built for biosensors, electrochemical sensors, and diagnostic innovation.

Key Features

highly flexible, analog 8 bank multipotentiostat/-galvanostat with impedance measurement capabilities
integrated multiplexing option for highly flexible, advanced channel mapping
individual current and voltage measurement ranges per bank (1 nA ... 10 mA, 10 mV ... 10 V)
complex setpoint generation for shared or individual setpoints at each bank
compliance voltage: ± 11 V
compliance current: 30 mA
single sine excitation for EIS measurements at a wide frequency range of 10 mHz ... 1 MHz

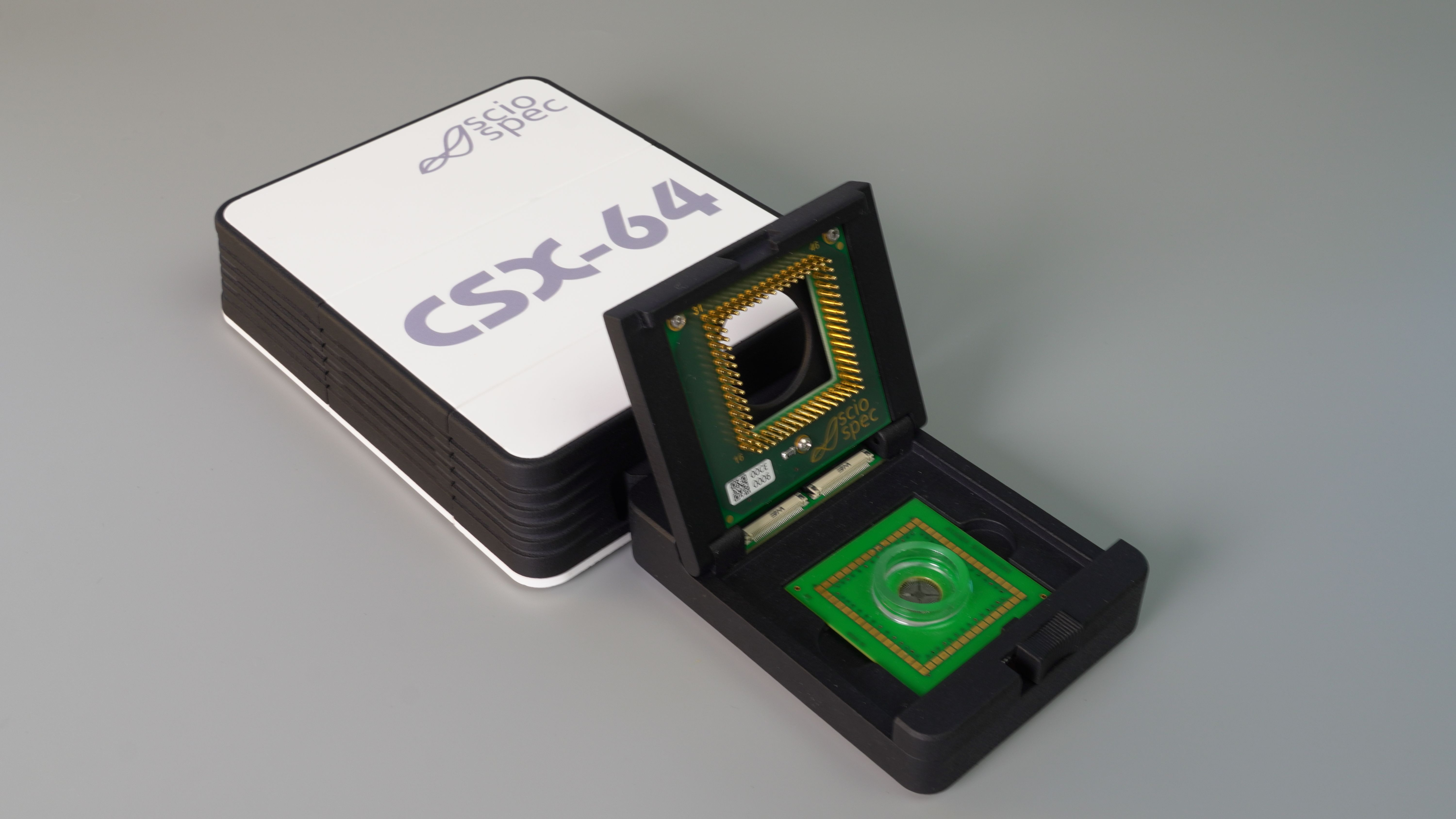

compatible with adapters for common sensor platforms
intuitive software for running common applications such as CV, CA, EIS and more
full speed USB interface
ultra compact form factor

Typical Fields of Applications

Type	Potentiostat/Galvanostat
Connector type	98 pin 1mm pitch edge-card connector (MEC1-150-02-F-DEM2)

Form Factor	Benchtop / Lab
PC interface	USB, Ethernet
Power supply	12 V DC (typ.), 15 W (max.), connector DC jack (type: Switchcraft PN: 712A)
Ambient temperature when measuring	0 °C to +40 °C

Dimensions - WxDxH / cm	13.5 x 17.5 x 4
Weight / kg	0.75

Max. Potential range (±) / V	10
Voltage resolution (output)	high resolution DAC: 0.0001% of applied measurement range / high speed DAC: 0.002% of applied measurement range
Compliance voltage / ±V	11
Voltage resolution (input)	0.002% of applied measurement range
Voltage Ranges	4 ranges, [±10 V, ±1 V, ±100 mV, ±10 mV]
Number of Voltage Ranges	4
Required Compliance Voltage	≥ 10 V, ≥ 5 V, ≥ 2 V

Max. current (output) / A	±10 mA
Current range	8 ranges, ±1 nA to ±10 mA
Number of current ranges	8
Current Resolution (output)	high resolution DAC: 0.0001% of applied measurement range / high speed DAC: 0.002% of applied measurement range
Current Resolution (input)	0.002% of applied measurement range
Compliance current	±30 mA

Description

EIS Capability	Yes
EIS frequency range	10 mHz to 1 MHz
Max. EIS frequency range / MHz	1
Min. EIS frequency range / µHz	10000
AC frequency accuracy	± 100 ppm (@ 25 °C) additional ± 10 ppm over temperature range additional ± 5 ppm during first year
Potentiostatic EIS Amplitude	0.01%...9.5% (peak amplitude) of selected potential range in potentiosat mode
Galvanostatic EIS Amplitude	0.01%...9.5% (peak amplitude) of selected current range in galvanostatic mode
