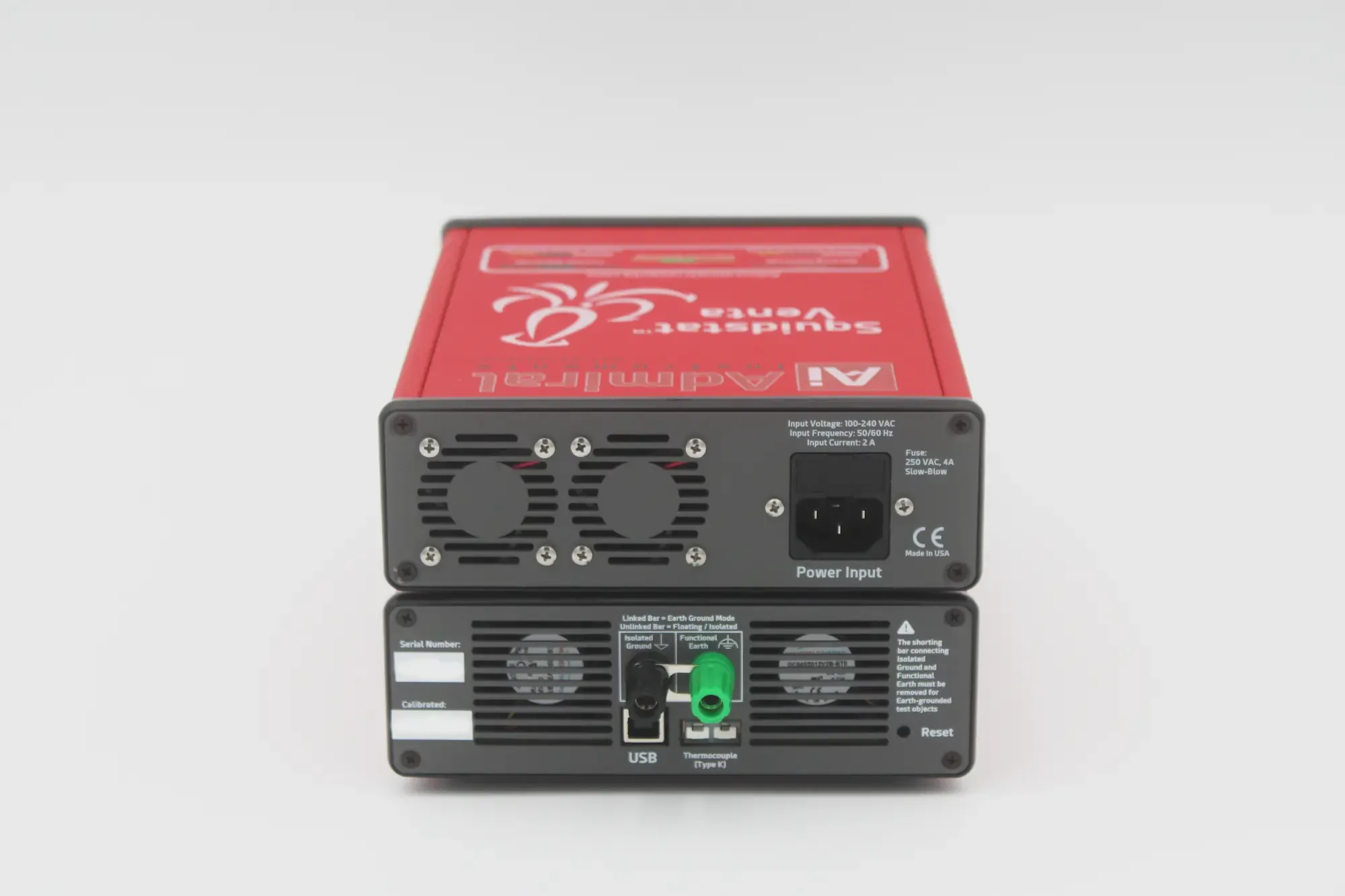

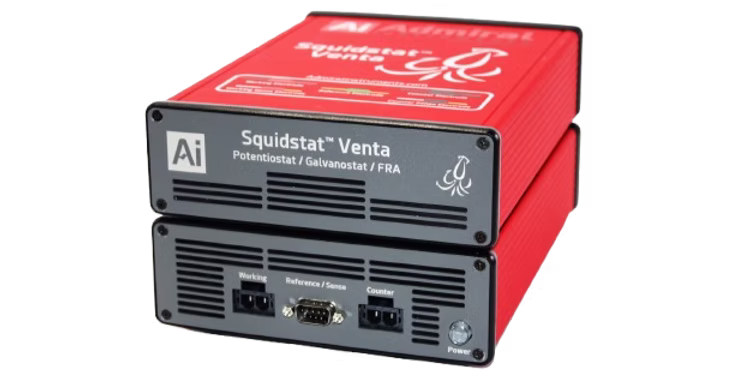

Max. Potential range (±) / V

6

Voltage resolution (output)

0.003% (30.52 ppm) of range, 15 μV min

Min. Voltage resolution (output) / μV

15

Accuracy voltage (output)

0.1% of setpoint, 1 mV min

Min. Accuracy voltage (output) / mV

1

Compliance voltage / ±V

6

Voltage resolution (input)

0.003% (30.52 ppm) of range, 15 μV min

Min. Voltage resolution (input) / μV

15

Accuracy voltage (input)

0.1% of measured, 1 mV min

Min. Accuracy voltage (input) / mV

1

Voltage Ranges

4 ranges, [±6 V, ±5 V, ±1 V, ±0.5 V]

Number of Voltage Ranges

4

Slew rate

1 MV/s (-1 V to +1V) - (1 kΩ load)

Min/Max Scan Rate

15 μV/s minimum & 25 V/s maximum with 10 mV sampling

Smallest Potential Step for Sweep Voltammetry

0.003% (30.52 ppm) of range, 15 μV min

Smallest Pulse Width

375 μs

Square Wave Voltammetry Max Frequency

2 kHz (-1 V to +1V)

Time Resolution

10 ns

iR Compensation Limits

1 V

Required Compliance Voltage

≥ 5 V, ≥ 2 V

Max. current (output) / A

±20 A

Current range

9 ranges, [1 μA to 20 A]

Number of current ranges

9

Current Resolution (output)

0.003% (30.52 ppm) of range, 30 pA min

Min. Current Resolution (output) / pA

30

Current Accuracy (output)

0.1% of range ≤ 10 A, 0.2% > 10 A

Min. Current Accuracy (output) / nA

1

Current Resolution (input)

0.003% (30.52 ppm) of range, 30 pA min

Min. Current Resolution (input) / pA

30

Current Accuracy (input)

0.1% of range, 1 nA min

Min. Current Accuracy (input) / nA

1

EIS Capability

Yes

EIS frequency range

10 µHz to 2 MHz

Max. EIS frequency range / MHz

2

Min. EIS frequency range / µHz

10

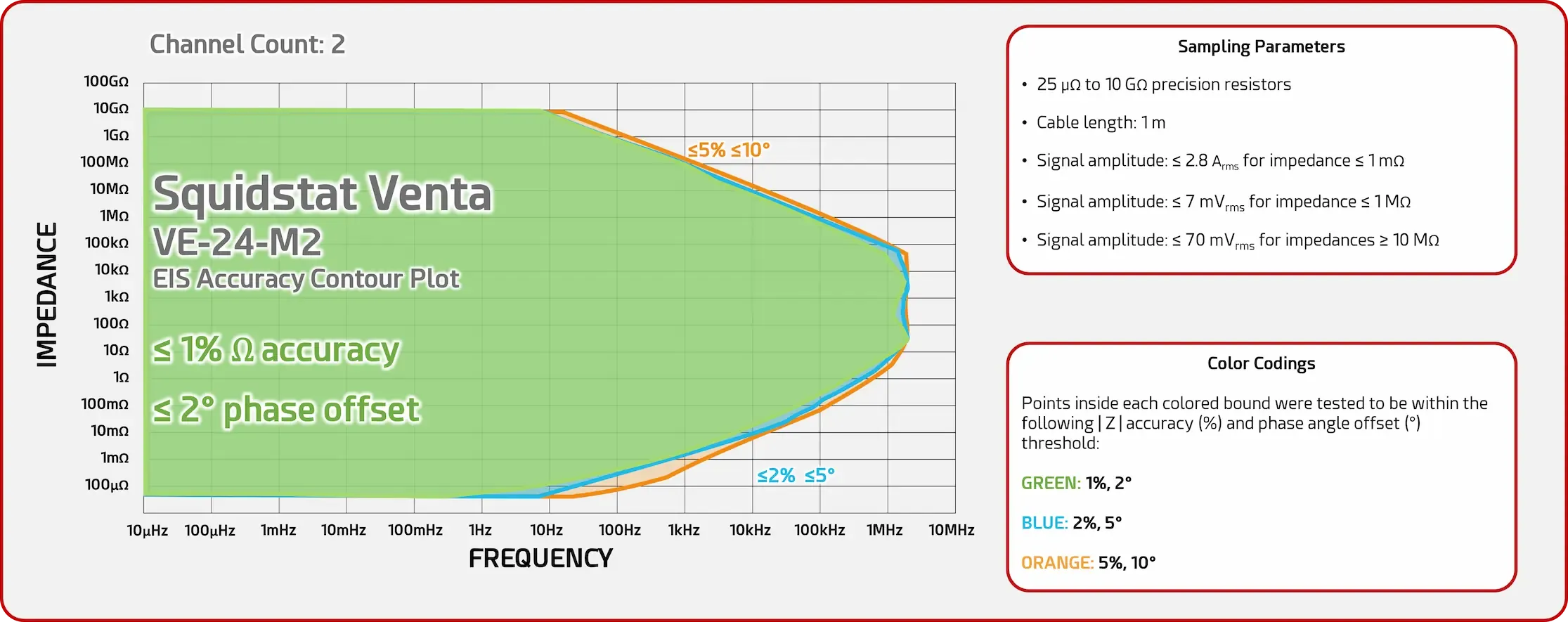

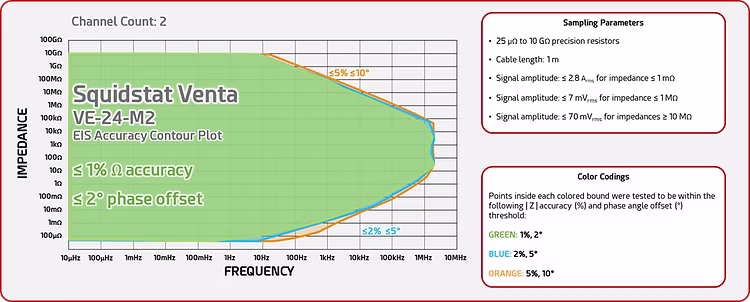

Accuracy Contour Plot

See images

EIS Amplitude resolution

24-bit resolution

AC frequency accuracy

0.005% (50 ppm) or better

AC frequency resolution

18-bit, 0.0004% (3.81 ppm), 3 μHz min

Potentiostatic EIS Amplitude

≤ 100% of range, 6 V max

Potentiostatic EIS Amplitude Resolution

0.000012% (0.12 ppm) of setpoint/measured

Galvanostatic EIS Amplitude

≤ 100% of range, 20 A max

Galvanostatic EIS Amplitude Resolution

0.000012% (0.12 ppm) of range
