Corrtest Instruments

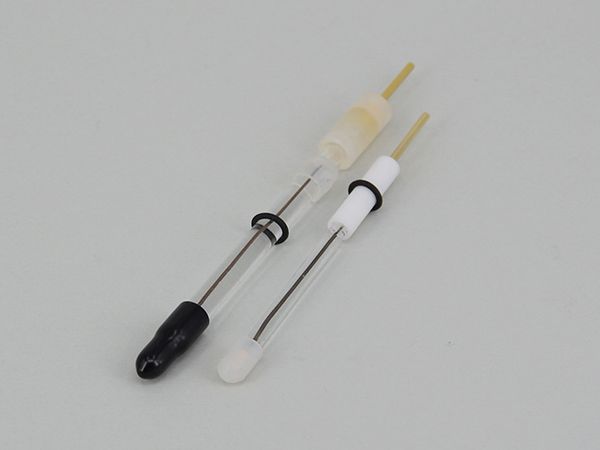

• Ag/AgCl 3.5M reference electrode
• Refillable
• Body diameter: 4 mm
• Total length: 95 mm

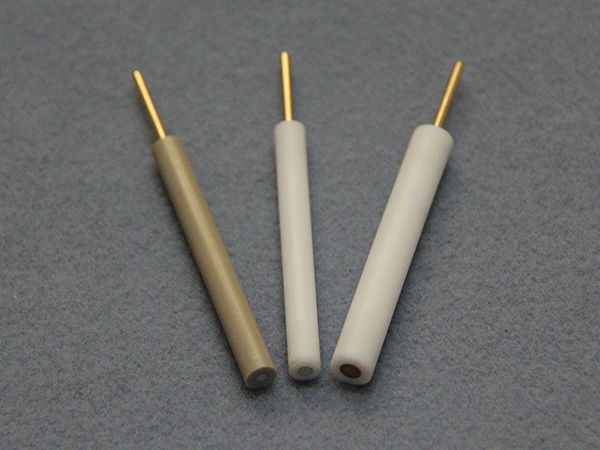

• Al working electrode
• Active area: 2 mm dia disk

• Al working electrode
• Active area: 3 mm dia disk

• Voltage control range: ±10V
• EIS frequency range: 10μHz~1MHz
• Max, current output: ±100mA

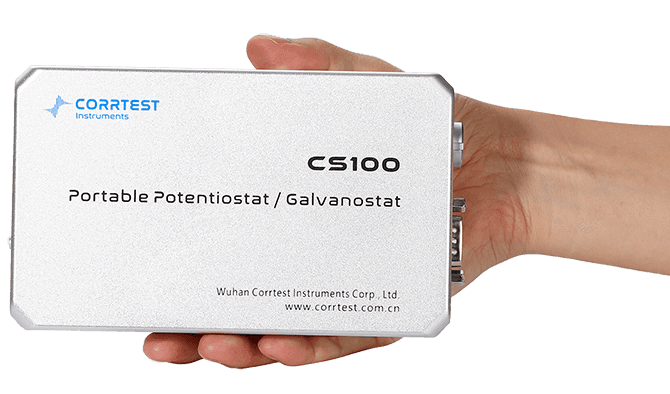

• Handheld potentiostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~1MHz
• Max, current output: ± 5A
• Potentiostat/Galvanostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~1MHz
• Max, current output: ± 1A

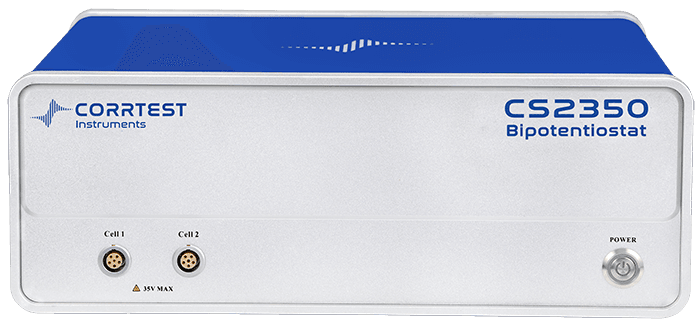

• Bi-potentiostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~1MHz
• Max, current output: ± 1A

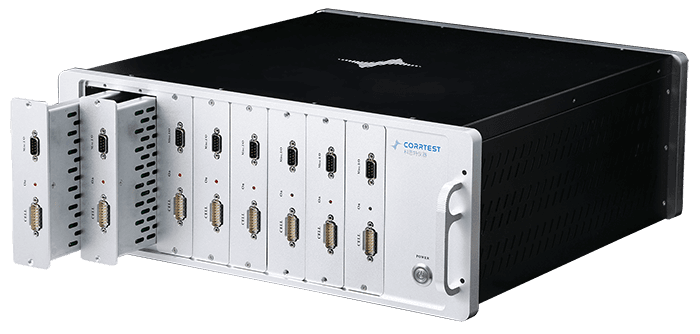

• Multi-channel potentiostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~1MHz
• Up to ± 100A

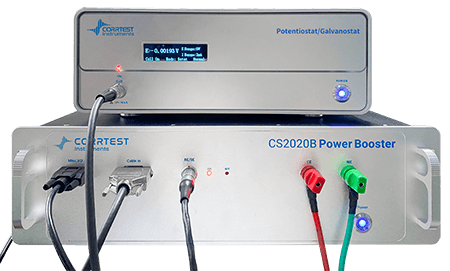

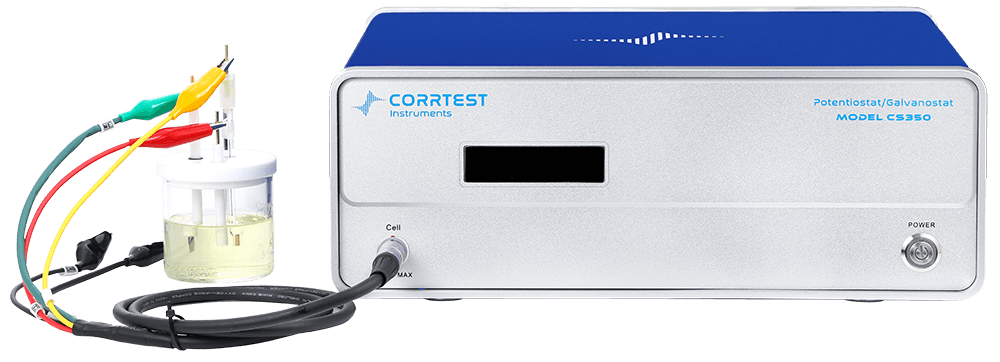

• Potentiostat/Galvanostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~1MHz
• Max, current output: ± 2A

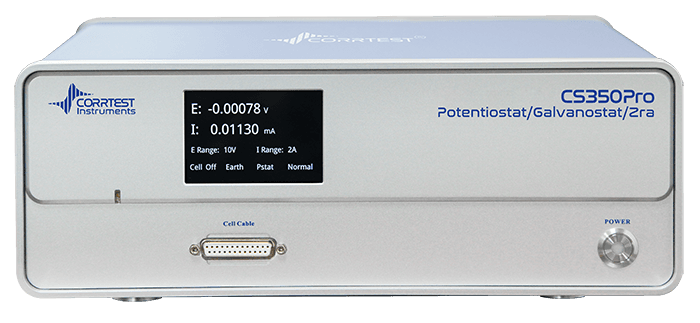

• Potentiostat/Galvanostat

• Voltage control range: ± 10V
• EIS frequency range: 10μHz~5MHz
• Max, current output: ± 2A
• Potentiostat/Galvanostat

• Cd working electrode
• Active area: 2 mm dia disk

• Coating Evaluation Cell.
• Volume: 10mL
• Effective area of the WE: 1cm2
• The holes on the cap can be tailored

• Cu working electrode
• Active area: 2 mm dia disk

• Cu working electrode
• Active area: 3 mm dia disk

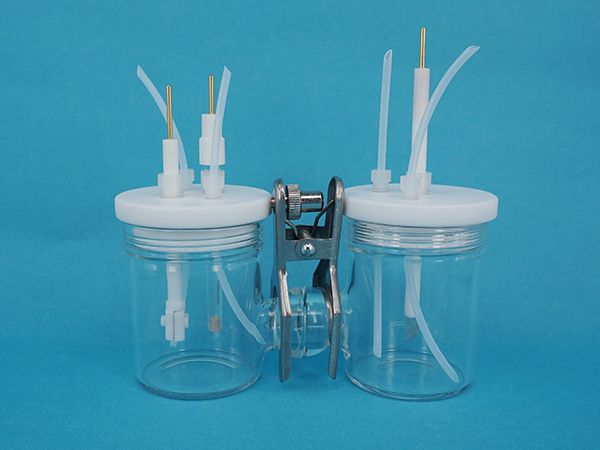

• Electrochemical H-cell
• Volume: 50~250mL (each cell)
• The holes on the Teflon lids can be tailored

Electrode polishing kit

Faraday cage - Corrtest

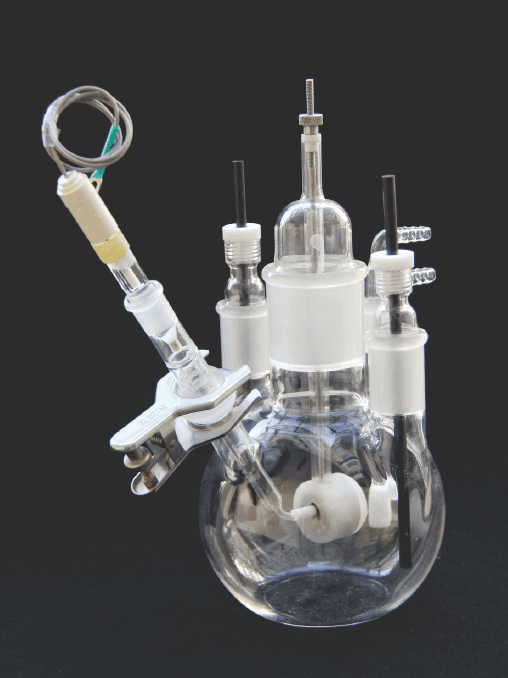

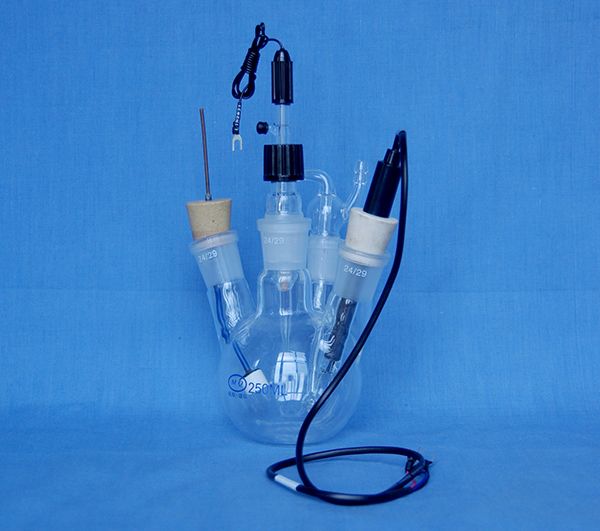

• 4-port cell usually for corrosion study.
• Salt bridge and gas inlet/outlet
• Rubber stoppers to stabilize the electrodes.

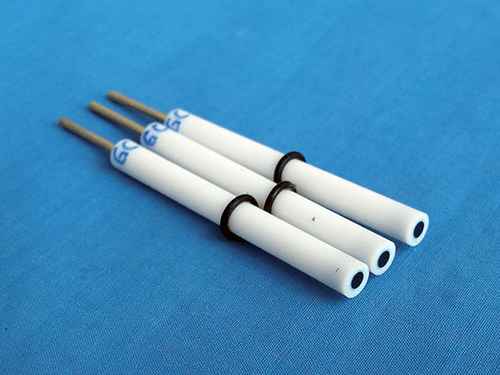

• Glassy carbon working electrode
• Active area: 2mm dia disk
• Body diameter: 6 mm
• Total length: 80 mm

• Glassy carbon working electrode
• Active area: 3mm dia disk
• Body diameter: 6 mm
• Total length: 80 mm

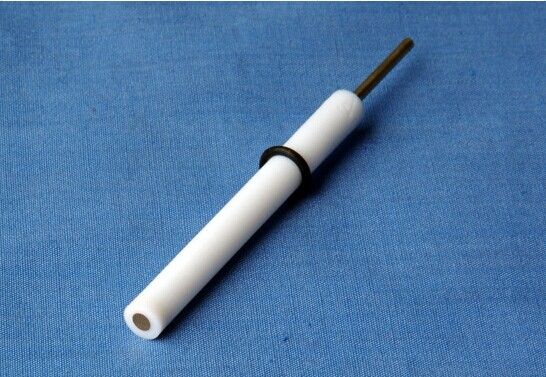

• Au working electrode
• Active area: 2 mm dia disk
• Body diameter: 6 mm
• Total length: 80 mm

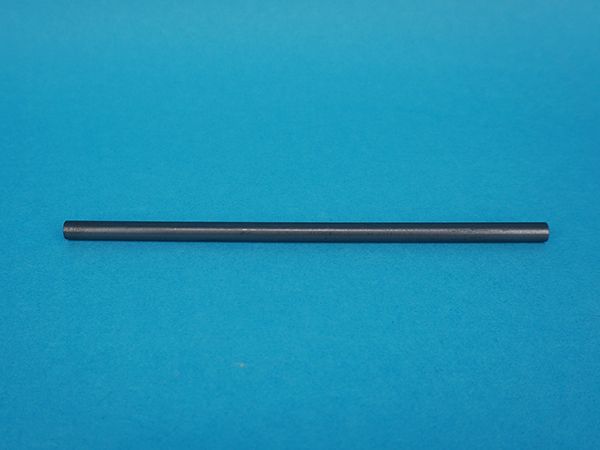

• Graphite rod CE
• Body diameter: 4 mm
• Total length: 150 mm

• Graphite rod CE
• Body diameter: 6 mm
• Total length: 150 mm

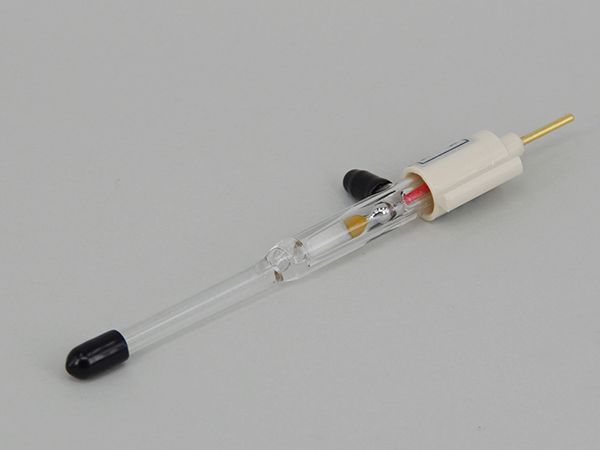

• Hg/HgO reference electrode
• Refillable

• Fe working electrode
• Active area: 2 mm dia disk

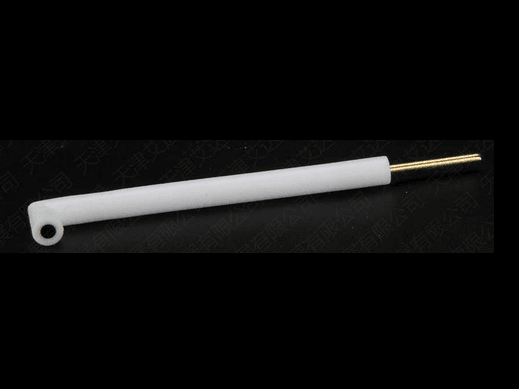

• L-shape for photoelectrochemical cell
• Glassy carbon working electrode
• Dia. 2~5mm

• Pb working electrode
• Active area: 2 mm dia disk

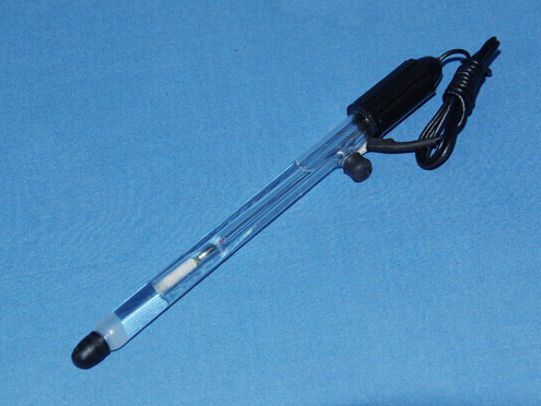

• Mercury/Mercurous sulfate electrode
• Refillable
• Body diameter: 9 mm
• Total length: 145 mm

• Standard cell 5 ports
• 500mL
• Polarization cell

• Ni working electrode
• Active area: 2 mm dia disk

• Ni working electrode
• Active area: 3 mm dia disk

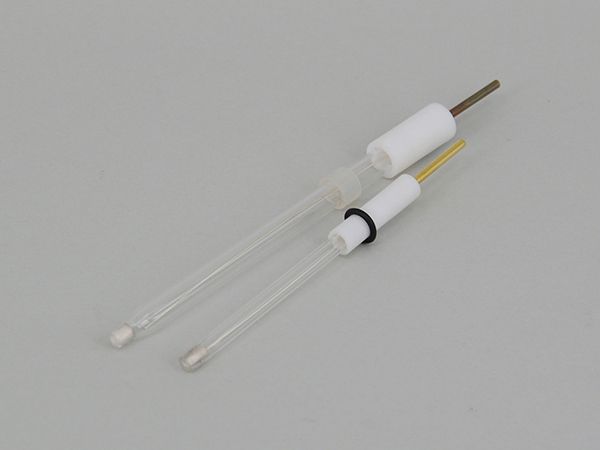

• Non-aqueous Ag/Ag+
• Body diameter: 4 mm
• Total length: 80 mm

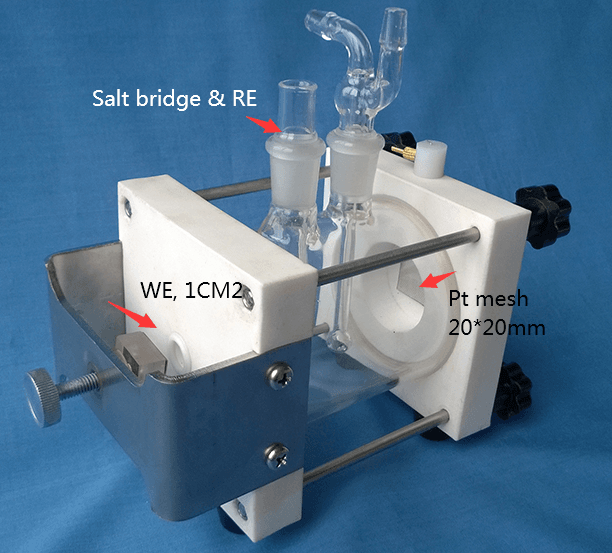

• Effective working area is 1cm2
• Ag/AgCl reference electrode*1
• Built-in counter electrode: Pt mesh1 (2020mm)

• Pd working electrode
• Active area: 2 mm dia disk

• Pd working electrode
• Active area: 3 mm dia disk

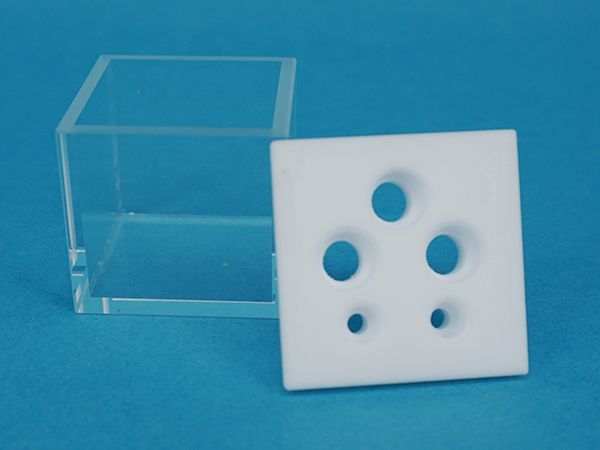

• Photoelectrochemical cell
• Quartz Cell and Teflon Cap
• Customize number holes
• Customize sizes

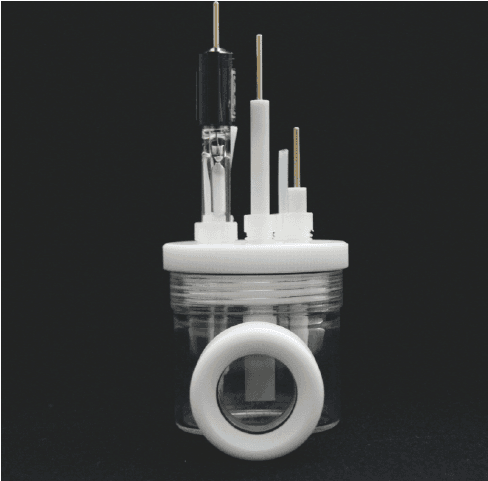

• Photoelectrochemical cell
• Quartz light window (dia. 24mm)
• One extra quartz for replacement
• Volume: 50ml, 100ml, 150ml

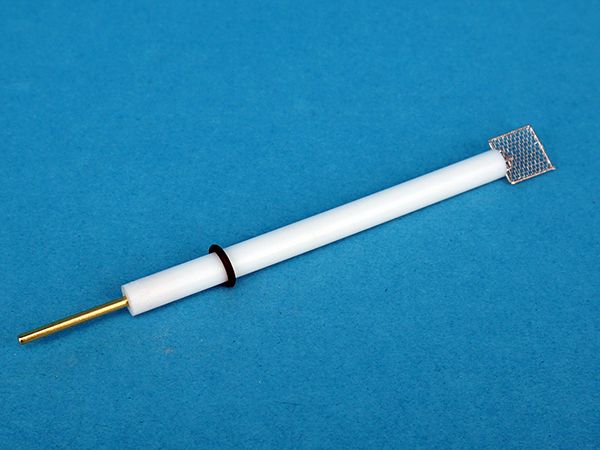

• Platinum mesh electrode
• 10 x 10 mm
• Body diameter: 6 mm
• Total length: 110mm

• Platinum mesh electrode
• 20 x 20 mm
• Body diameter: 6 mm
• Total length: 120mm

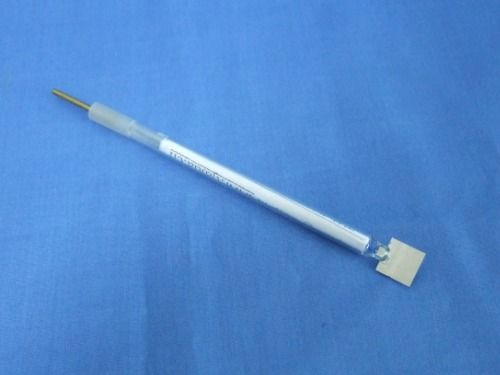

• Platinum plate CE
• 20 x 20 x 0.1 mm
• Body diameter: 6 mm
• Total length: 130mm

• Platinum plate CE
• 20 x 20 x 0.1 mm
• Body diameter: 6 mm
• Total length: 140mm

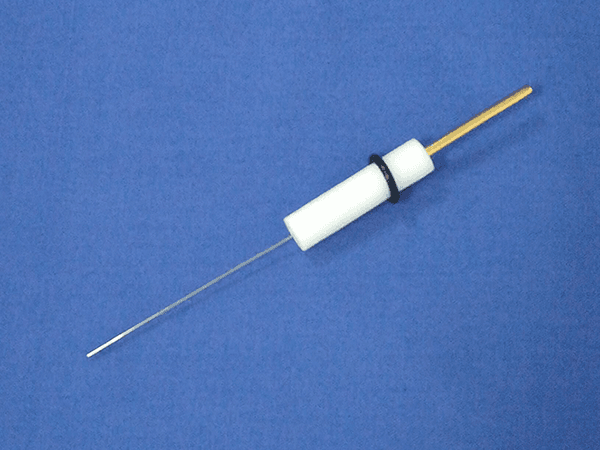

• Platinum wire CE
• 0.5 mm dia x 37 mm wire
• Body diameter: 6 mm
• Total length: 82 mm

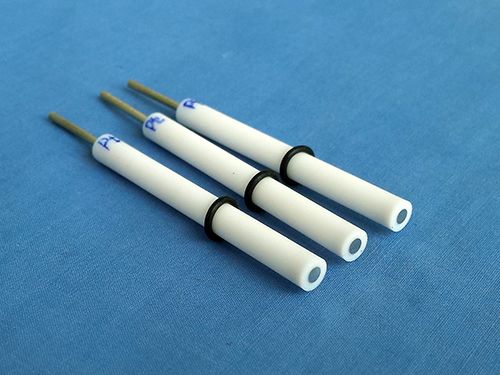

• Pt working electrode
• Active area: 2 mm dia disk
• Body diameter: 6 mm
• Total length: 80 mm

• Pt working electrode
• Active area: 3 mm dia disk
• Body diameter: 6 mm
• Total length: 80 mm

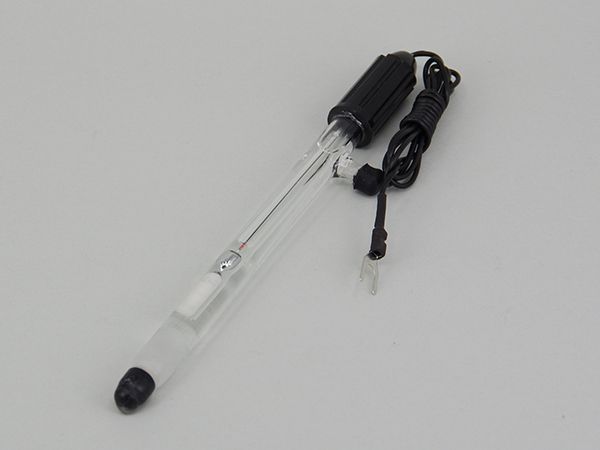

• Saturated calomel electrode
• Refillable
• Body diameter: 9 mm
• Total length: 145 mm

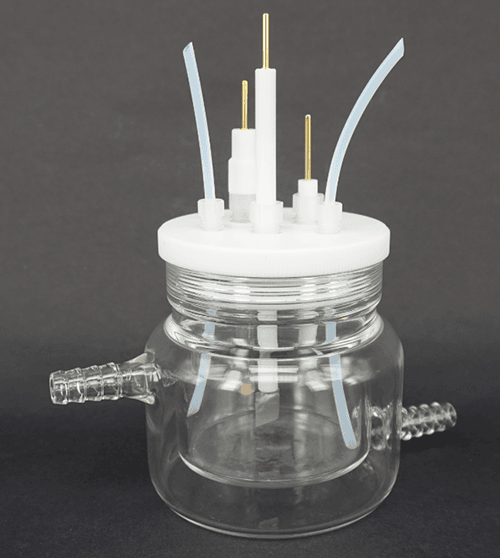

• Sealed Jacketed glass cell

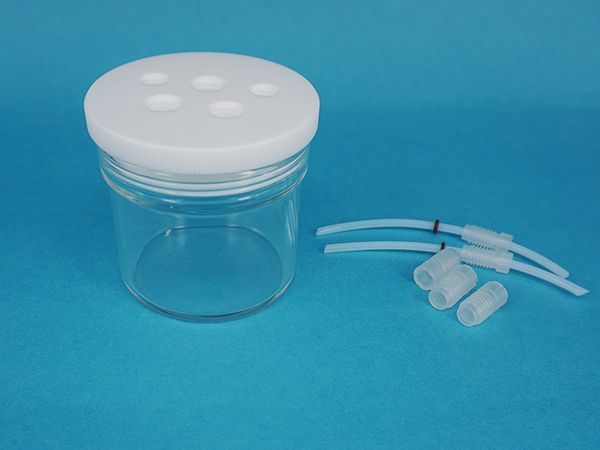

• Sealed electrolytic cell
• The lid can be rotated to open.
• The holes on the Teflon lid are customized.
• Volume: 50/100/150/250ml optional

• Ag working electrode
• Active area: 2 mm dia disk

• Ag working electrode
• Active area: 3 mm dia disk

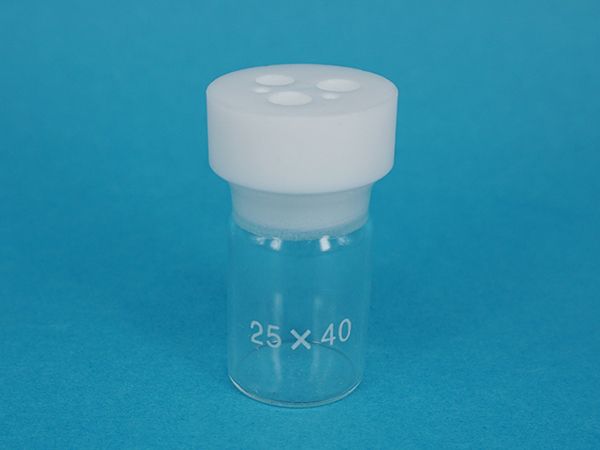

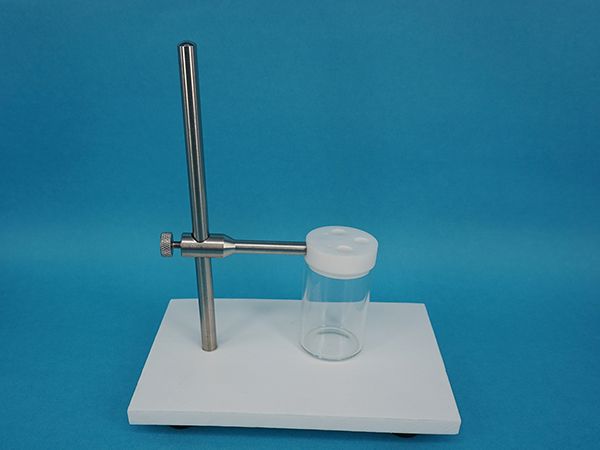

• Glass cell: 10ml
• Diameters 6.35mm, 6.35mm, 6mm
• Holes on the cap are fixed size.
• Fitting 6mm/6.35mm OD electrode.

• Thickness better less than 1mm.
• Customized up to 2.2mm FTO/ITO Glass.

• Specimen holder
• Effective area is 1cm2
• Corrosion field
• diameter: 11.5~15mm, thickness 0.1 ~ 5mm.

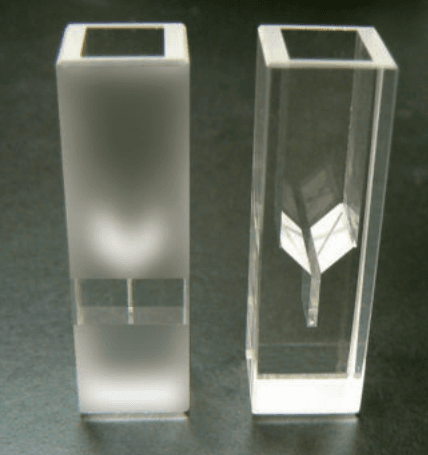

• Optical path length: 86.51mm
• Quartz cuvette size: 12.512.542mm,
• Teflon cap

• Ti working electrode
• Active area: 2 mm dia disk

• Ti working electrode
• Active area: 3 mm dia disk

• Reference electrode: Ag/AgCl (φ4mm)
• Counter electrode: Pt wire electrode
• Working electrode: Glassy carbon

• W working electrode
• Active area: 2 mm dia disk

• Zn working electrode
• Active area: 2 mm dia disk

• Zn working electrode
• Active area: 3 mm dia disk
