Fluorine Doped Tin Oxide (FTO) - 100x100 mm
MTX Labs

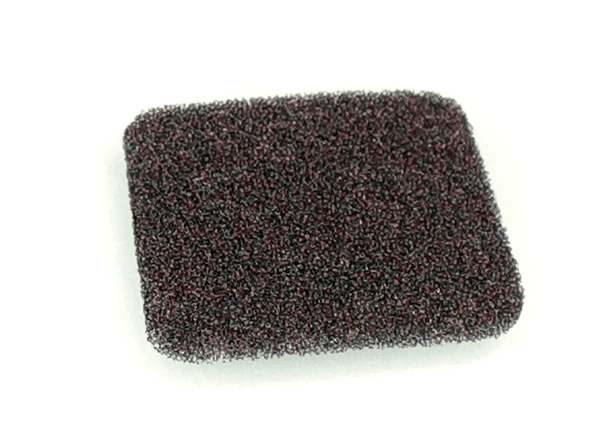

The 3D graphene foam is an interconnected arrangement of conductive graphene sheets forming a highly porous three-dimensional network. The company supplies 3D graphene foam in a freestanding format, without the inclusion of any polymers or adhesive materials.
This 3D graphene foam combines several key properties — interconnected microporosity, electrical conductivity, and biocompatibility — making it a highly suitable foundational scaffold biomaterial for the generation of healthy cell lines. For simplified handling during the cell culture process, it can also be provided embedded in 6-well plates or Petri dishes.

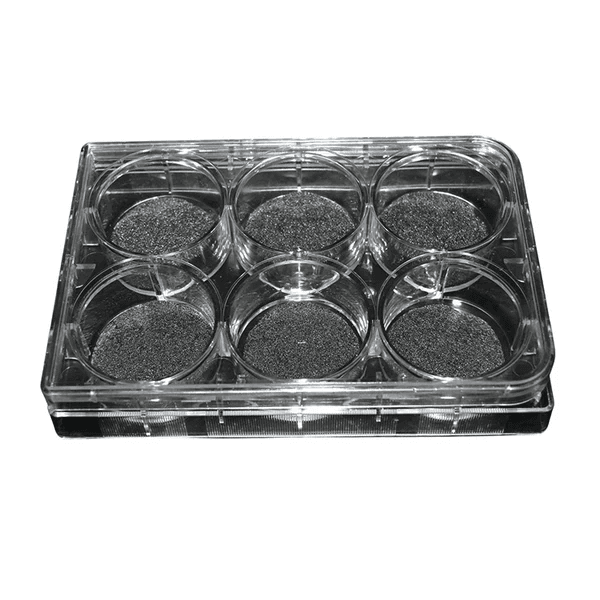

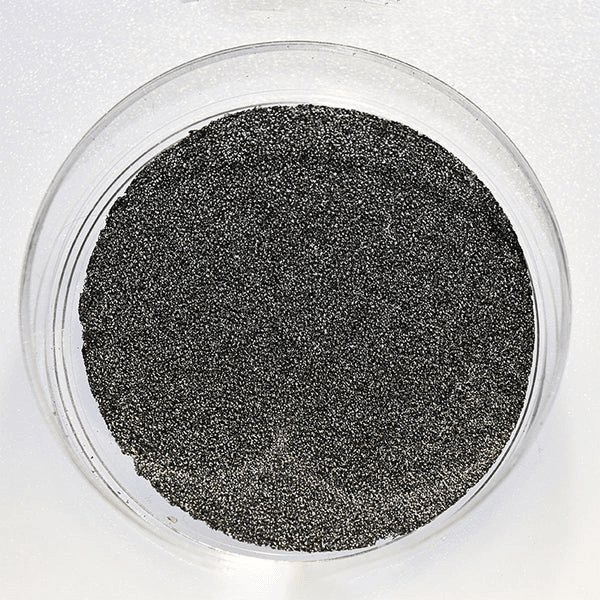

For simplified handling during the cell culture process, it can also be provided embedded in 6-well plates or Petri dishes.
Substrate/Film type
Foam
Growth substrate
Nickel foam
Density (mg/cm3)
27 +/- 6
Pore Size (µm)
150 +/- 50
Surface Area (m2/g)
~ 400
Yield Stress @ 0.5% Strain (kPa)
3.7 +/- 2
Compressive Modulus (kPa)
120 +/- 80
Cell Size (µm)
450 +/- 25
Growth Method
Chemical Vapor Deposition (CVD)
Sent directly to General Graphene
Sent directly to General Graphene
Conductivity (S/m)
2x10^5
Composition (EDS)
> 99% C
Size
30 x 30 x 1.6 mm
