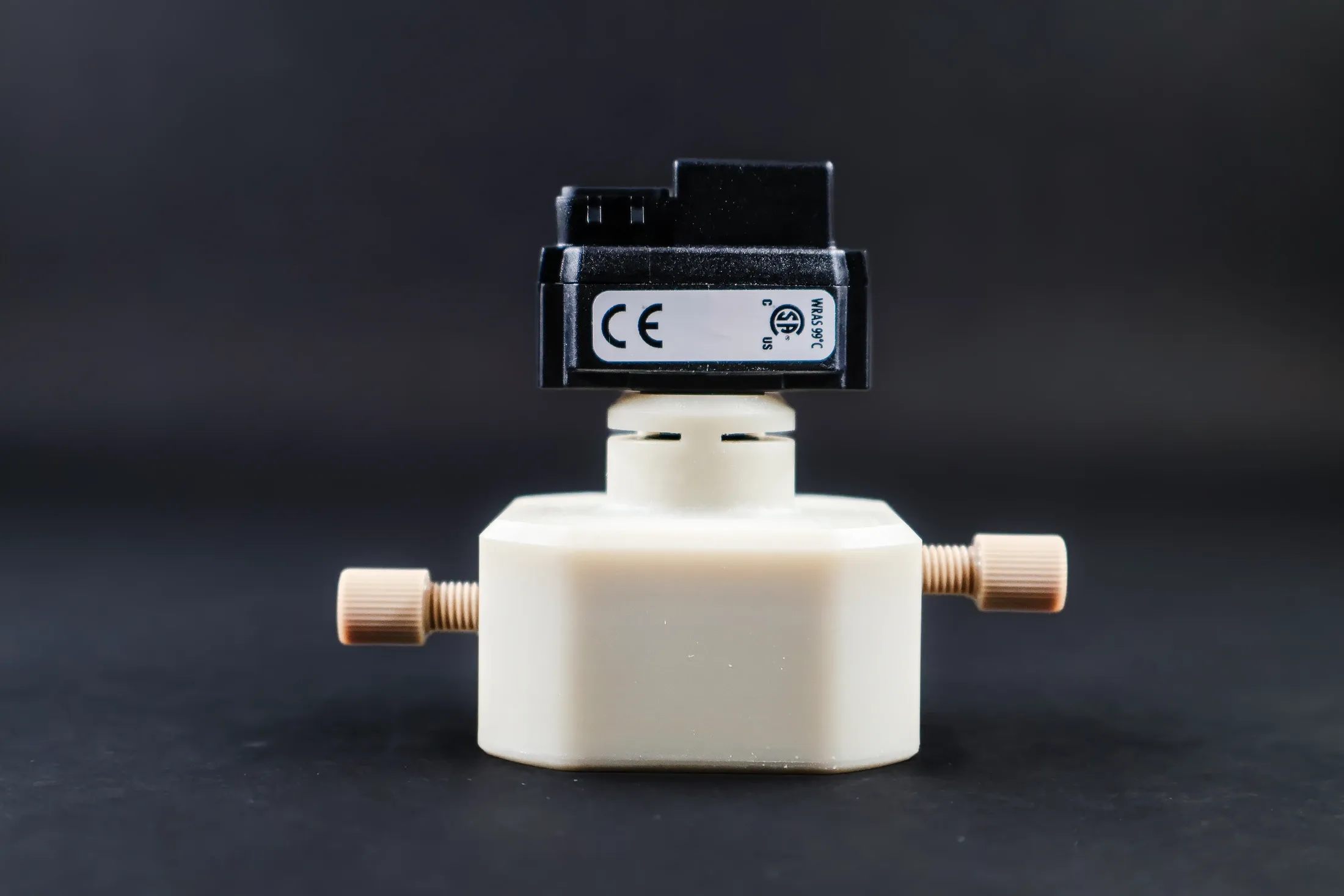

Inline Pressure Unit Single

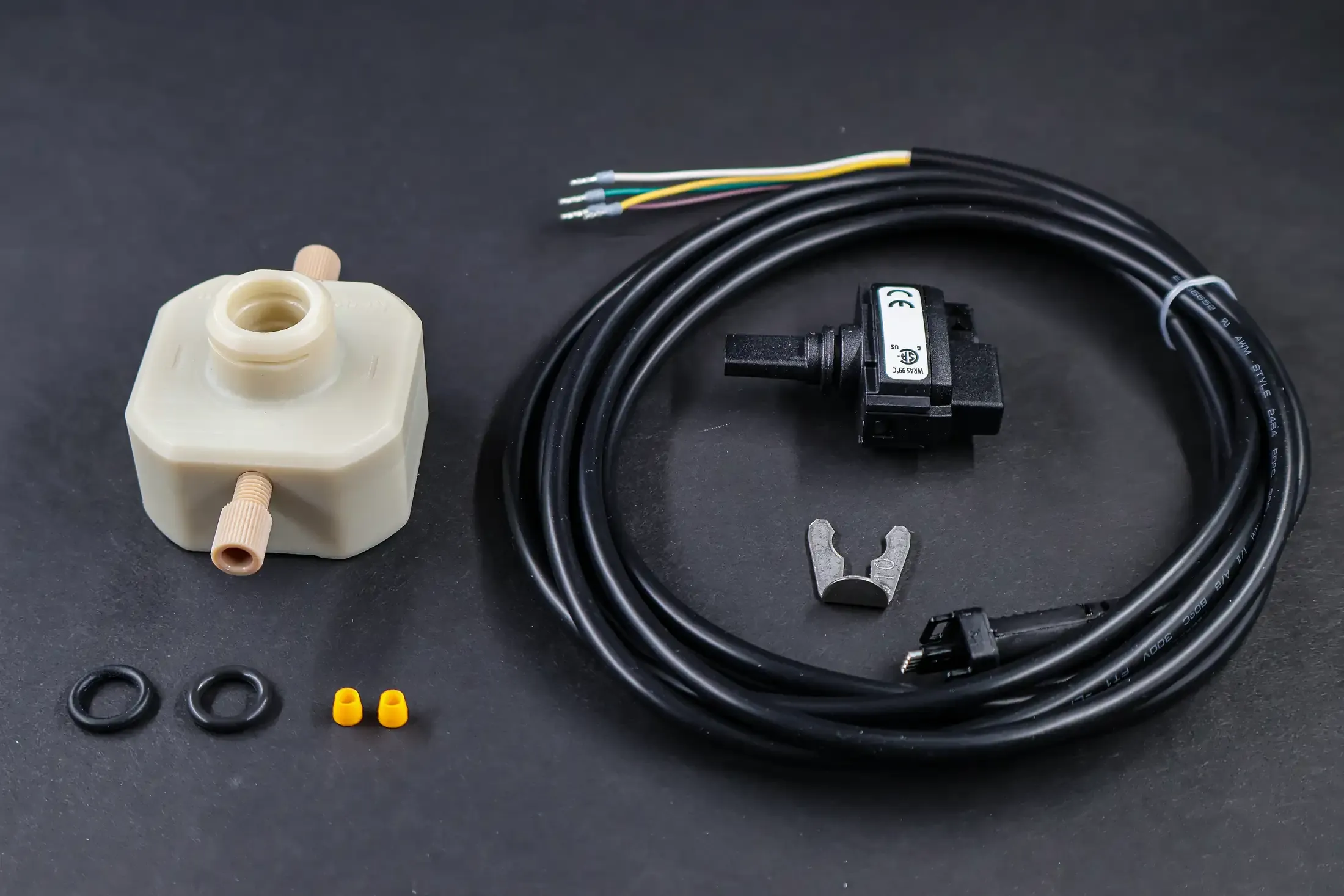

The Inline Pressure Unit gives flow battery and electrolysis researchers a direct way to measure hydraulic resistance across a test cell, connecting inline to track pressure drop as a function of electrode material, flow rate, or compartment geometry. Each unit includes a relative pressure sensor rated to 1.6 bar with a 1 mbar resolution analog output, alongside an integrated temperature sensor, in a corrosion-resistant polypropylene and PPS housing validated with both concentrated vanadium and KOH electrolytes. Two units are typically deployed together for true differential pressure measurement across a cell.

• Direct Hydraulic Diagnostics: Measures pressure drop across a cell to quantify electrode or flow-field resistance.
• Fine Resolution: 1 mbar resolution across a 0–1.6 bar range via a 0.5–3.5 V analog output.
• Integrated Temperature Sensing: Built-in temperature measurement alongside pressure, sharing the same analog output format.

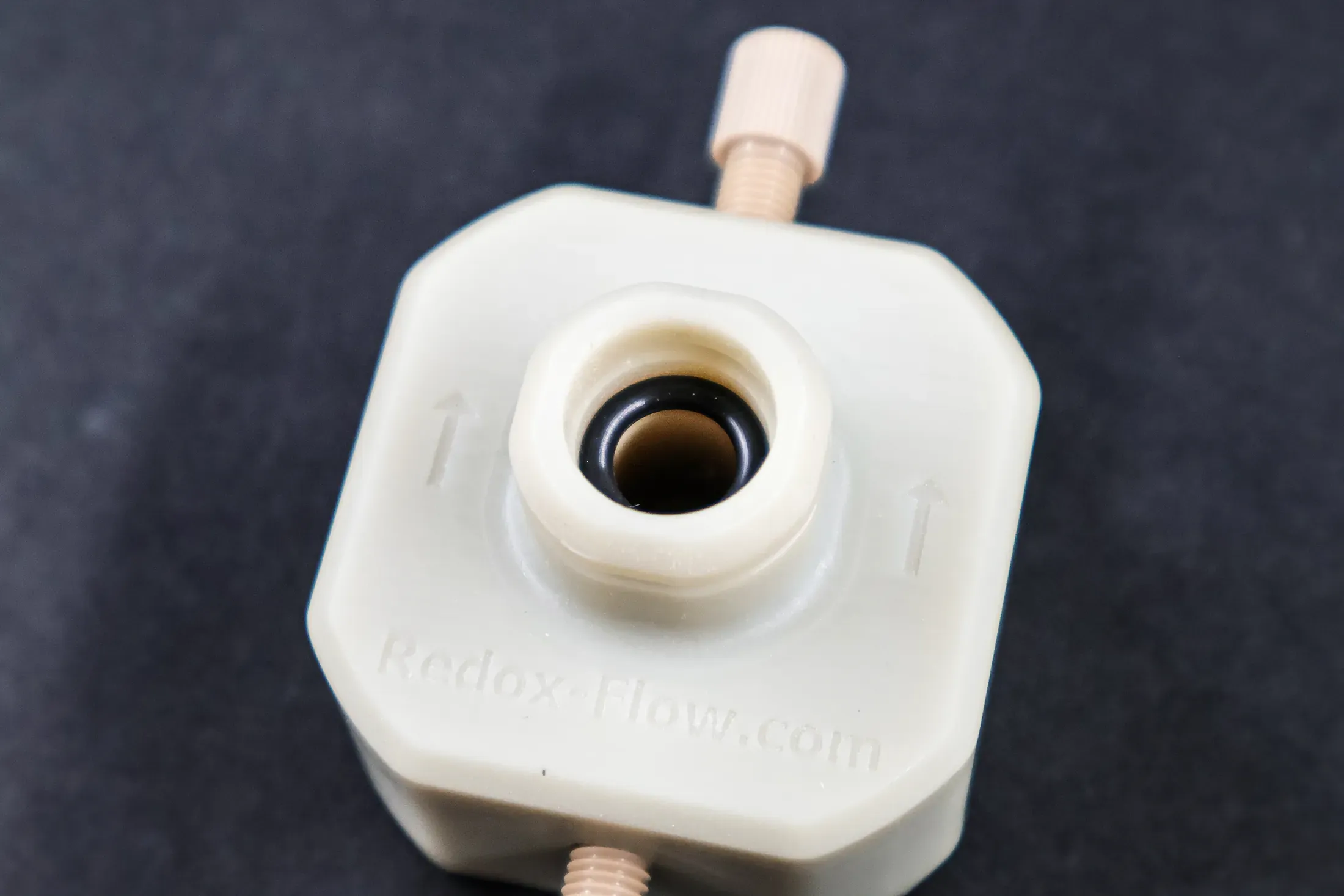

• Proven Chemical Resistance: PPS-wetted sensor housing tested with 1.6 M vanadium and 6 M KOH electrolytes without failure.
• Differential-Ready: Deploy two units for true differential pressure measurement across inlet and outlet.
• Data-Acquisition Ready: Pairs with the AUX Unit for logging pressure and temperature alongside battery or electrolysis test data.
