Electrode Adapter for Raman ECFC

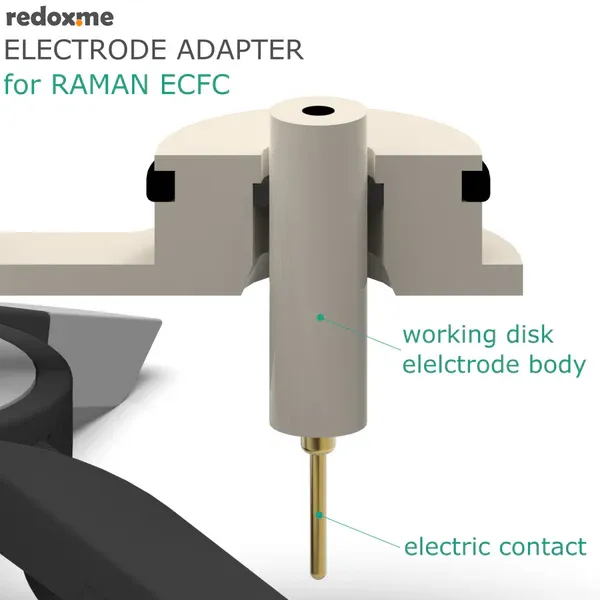

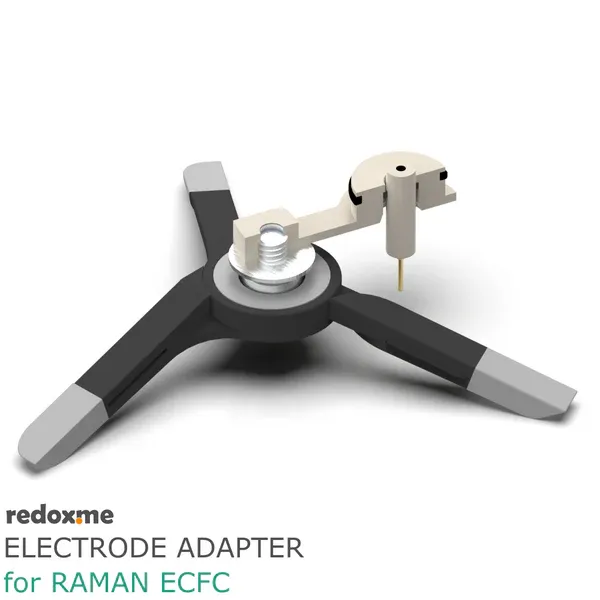

The electrode adapter is used for installing 6 mm dia. electrodes inside Raman ECFC. It enables using disk electrode, plug with clip or any other rod-shape electrode (e.g. graphite rod) or current collector (e.g. metal mesh, graphite coated metal mesh, metal foil, graphite coated metal foil, metal foam, carbon woven and non-woven fabrics, carbon paper, etc.) as working electrode instead of a flat electrode in default Raman ECFC configuration. The main advantage of the adapter is the fact that it reduces the working distance practically down to the window thickness which is 1 mm.

The electrode adapter elements are constructed with materials that are inert to the electrochemical system (PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is well sealed which prevents the electrolyte to leak out.

Application note The electrode adapter is used to study interfaces between electrode or current collector and an electrolyte, whenever a flat working electrode can't be used. Please note that the electrode is not included and it should be added to the quotation, separately.

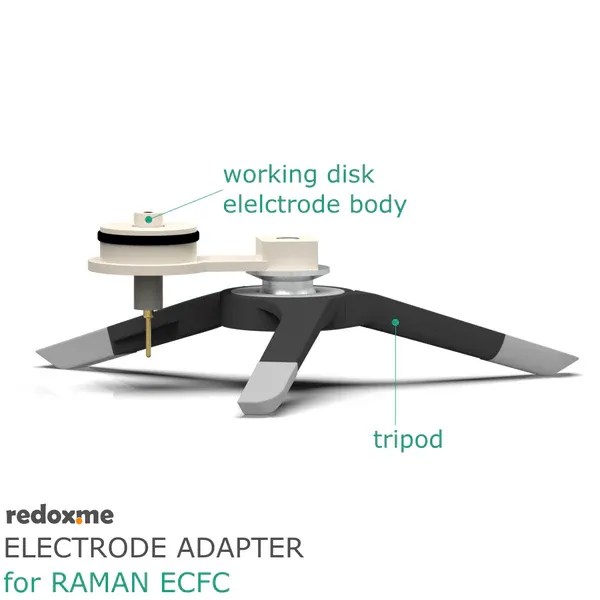

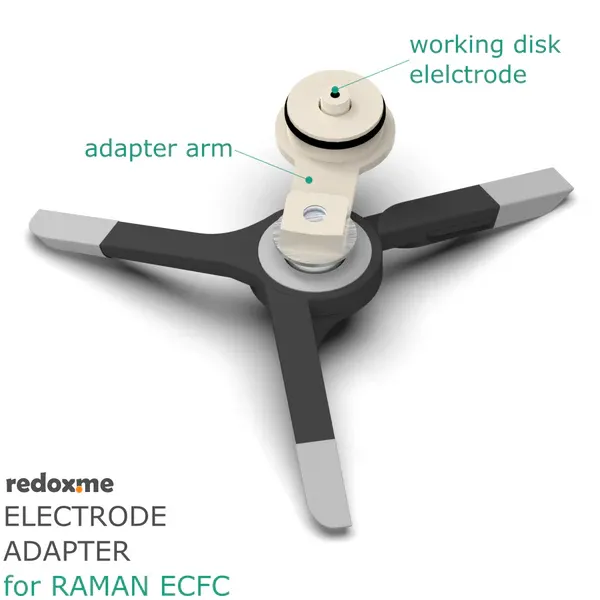

Product includes 1 x adapter arm 1 x set of O-Rings 1 x tripod
