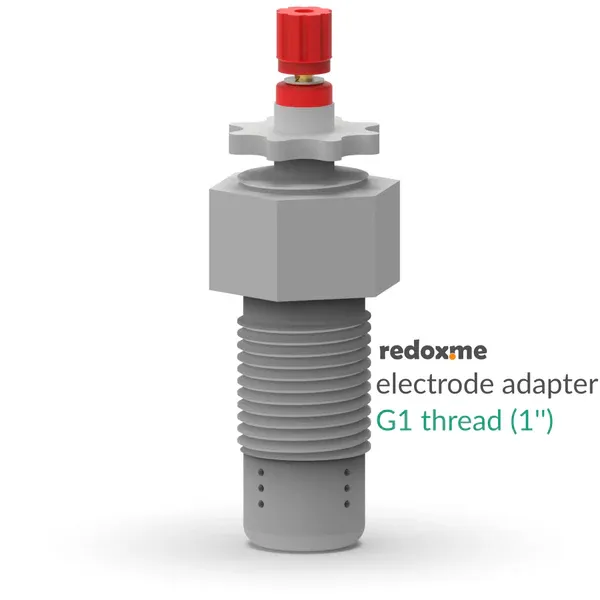

Electrode adapter – G1 thread (1’’)

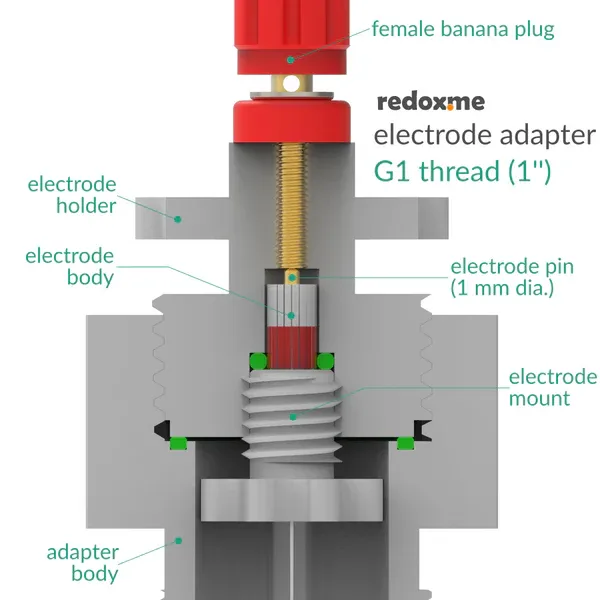

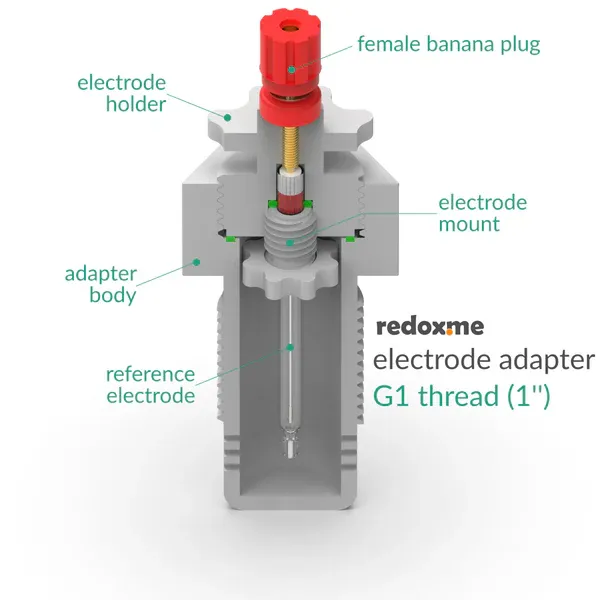

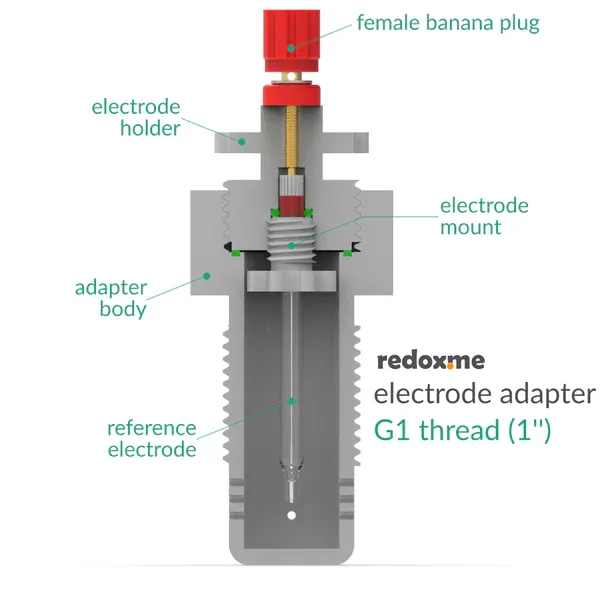

This fully customizable industrial electrode adapter is used to convert 6 mm dia. electrode to the required socket of another system. Moreover, the electrical connection is converted from 1 mm dia. pin to 4 mm dia. banana plug. The electrode which is not included in this product is an inset for that adapter. Typical electrodes are cup less Ag/AgCl 70 mm Reference Electrodes, Working Disc Electrodes and Graphite Counter Electrodes.

Application note The electrode adapter is intended to be used with industrial electrochemical aqueous systems operating at low to medium pressures and temperatures up to 60 C. It finds an application mainly in water treatment stations, aqueous electroplating baths, etc.

Product includes 1 x electrode holder with banana plug 1 x electrode mount 1 x adapter body
