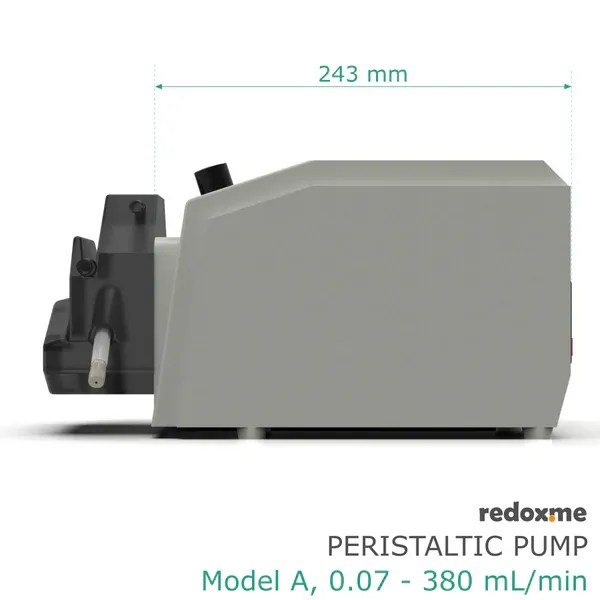

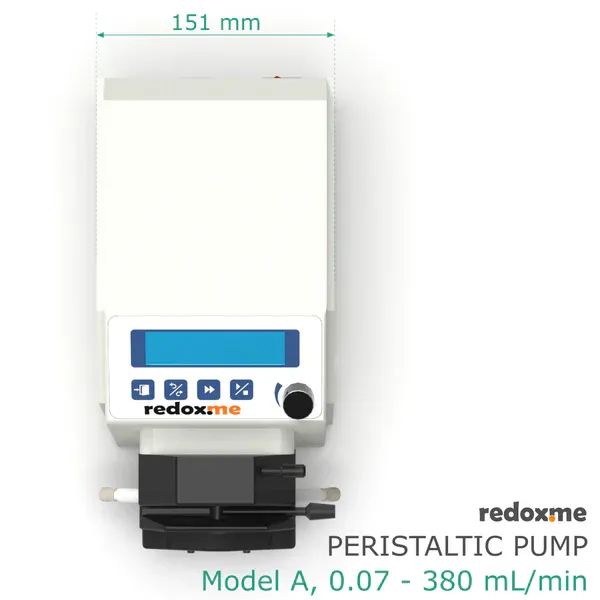

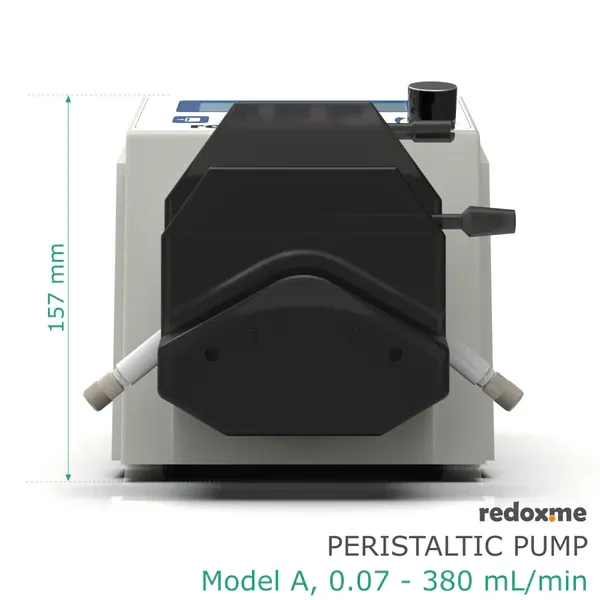

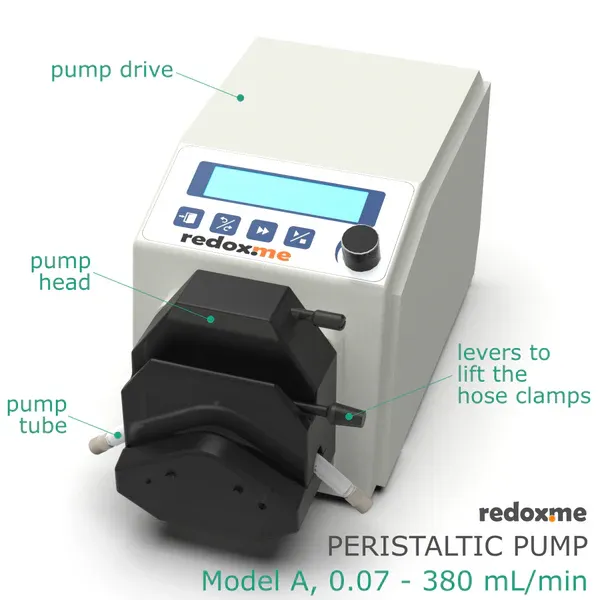

Peristaltic pump, model A, 0.07 - 380 mL per min

Peristaltic pump model A with a dosing function is ideally suited for a broad range of redox.me flow cells. The control enables reversible flow and various speeds, to achieve flow rates from 0.07 up to 380 mL/min in either direction (subject on tubing – please refer to manual). It well fits aqueous and organic electrolyte requirements – depending on the used tubing: Silicone (included), Viton™/Fluran™ (included) or PharMed™ (on request). The system is equipped with fittings from pumping tube (#17) to 1/16" OD and 3 mm OD tubing used typically with redox.me flow cells.

Application note Peristaltic pumps model A is used to move electrolyte along a tube in a variety of redox.me flow cells. It can pump aqueous and organic electrolytes without coming into contact with pump components other than pumping tube. Therefore, there is no risk that the flow control process can contaminate clean electrolytes or that the pump can be damaged by acidic or viscous liquids.

Product includes 1 x peristaltic pump, model A 1 x Silicone pumping tube (#17) for aqueous electrolyte 1 x Viton™/Fluran™ pumping tube (#17) for organic electrolyte 1 x pair of fittings for external tubing 1/16" OD 1 x operating manual
