Spectro-EFC 1.75 mL, 10x10 mm2 - Spectro-Electrochemical Flow Cell

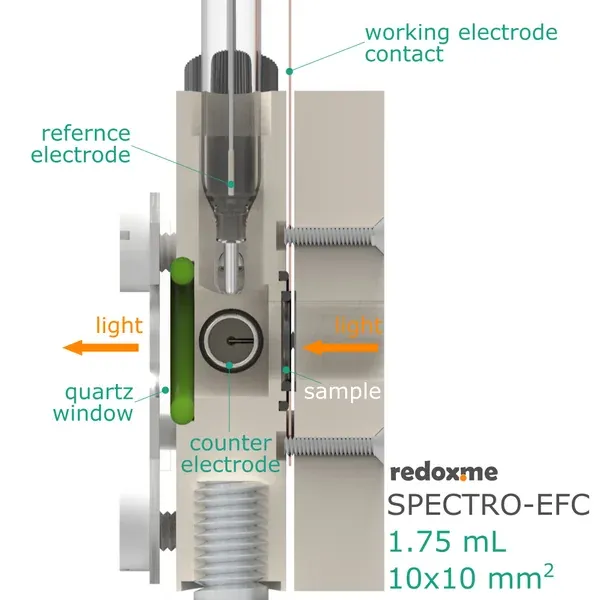

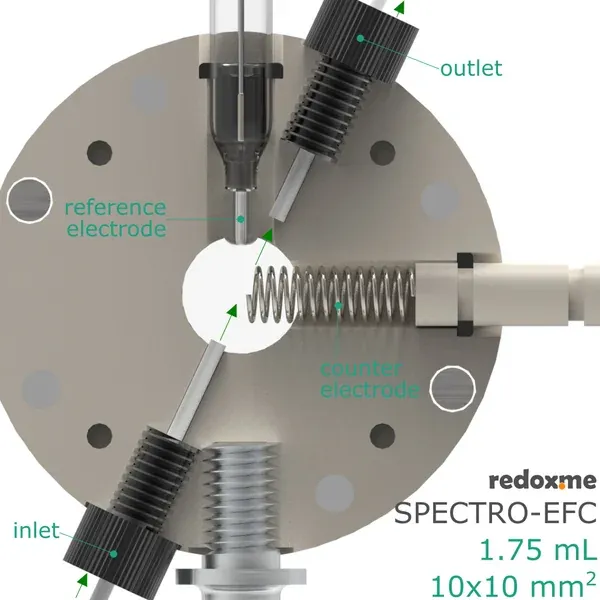

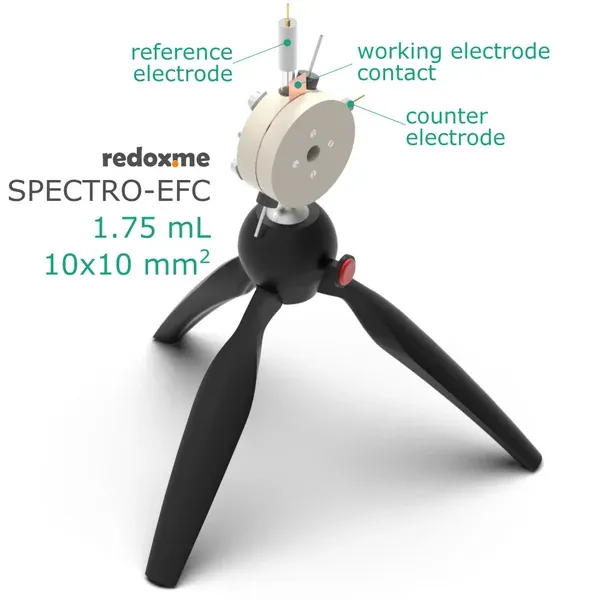

This is a horizontally mounted, multi-purpose spectroelectrochemical cell designed to be used with standard UV-Vis or IR spectrometers. It enables obtaining electrochemical and spectroscopic information from liquid sample or thin films in systems where variations in applied potential induce changes in observed spectra. It consists of a polyether ether ketone (PEEK) flow chamber equipped with magnetic or screw mount sample holder, screw mount quartz window holder and two different mini tripods. It well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The cell is meant to be used with a standard reference electrode having 6 mm in diameter and counter electrode either in the form of a rod or helix with 6 mm in diameter and 15 mm active length. This model differs from the standard Spectro-EFC cell in sample dimensions, enabling installation of much smaller substrates (10 mm x 10 mm).

Application Note Spectroelectrochemical cell is used to study the relation between absorbance/transmittance and electrochemical potential. It enables real-time monitoring of optical change in electrochromic materials. It also enables in-situ spectral acquisition for detection, identification and characterization of short-lived electrochemically-generated species/intermediates, resulting in a detailed investigation of the mechanistic pathways of redox processes. Please note that copper electric contact from working electrode stays in no contact with an electrolyte.

Product Includes

• 1 x sample mount
• 1 x flow chamber
• 1 x quartz window (0045PQGMA)
• 1 x window holder (0042PSSMA)
• 1 x set of screws (0032PNYCM)
• 1 x plug
• 1 x Manfrotto PIXI table tripod (0028PHYCM)
• 1 x XS Bendy Flexible Tripod (0043PHYCM)
