ECA-500k

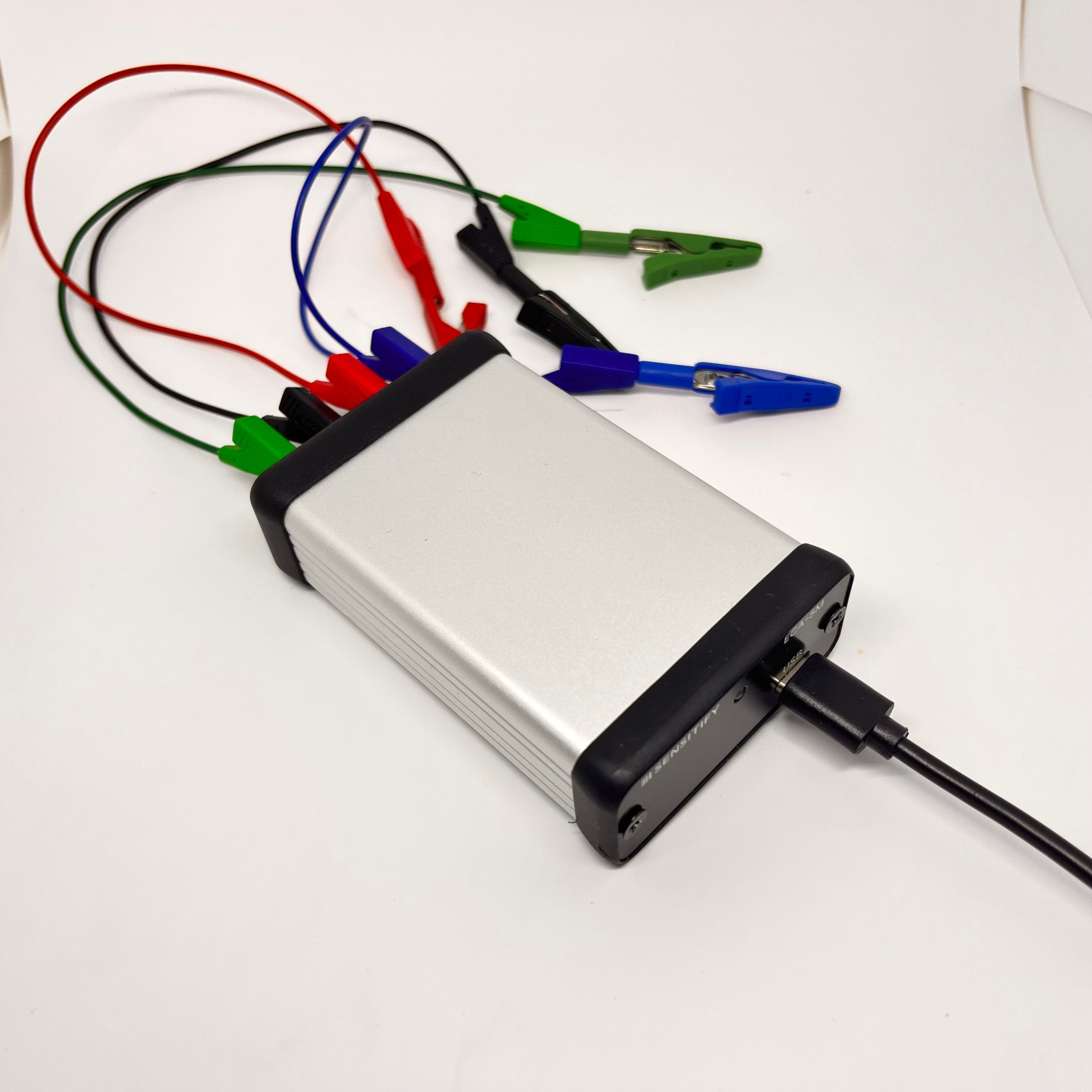

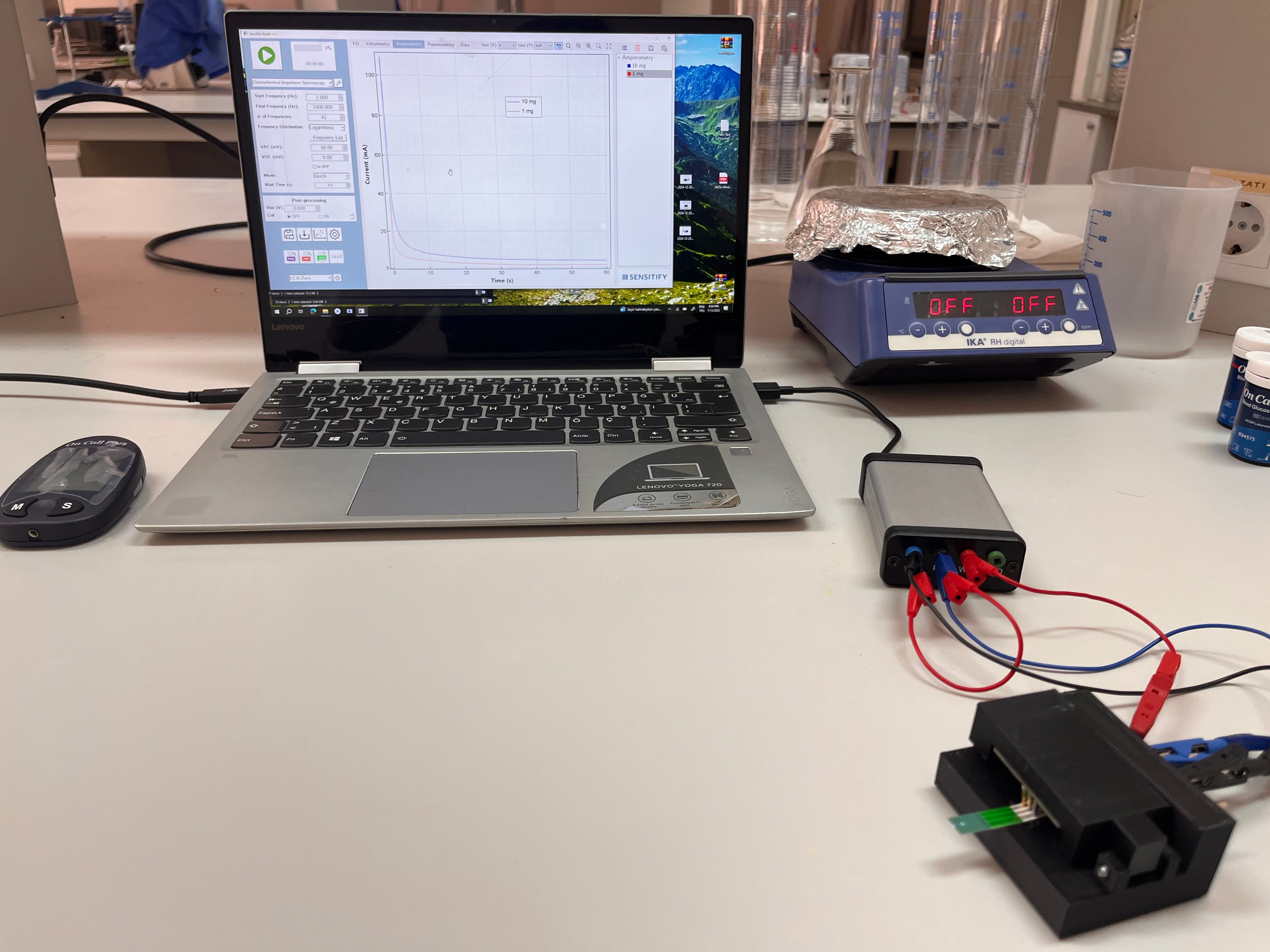

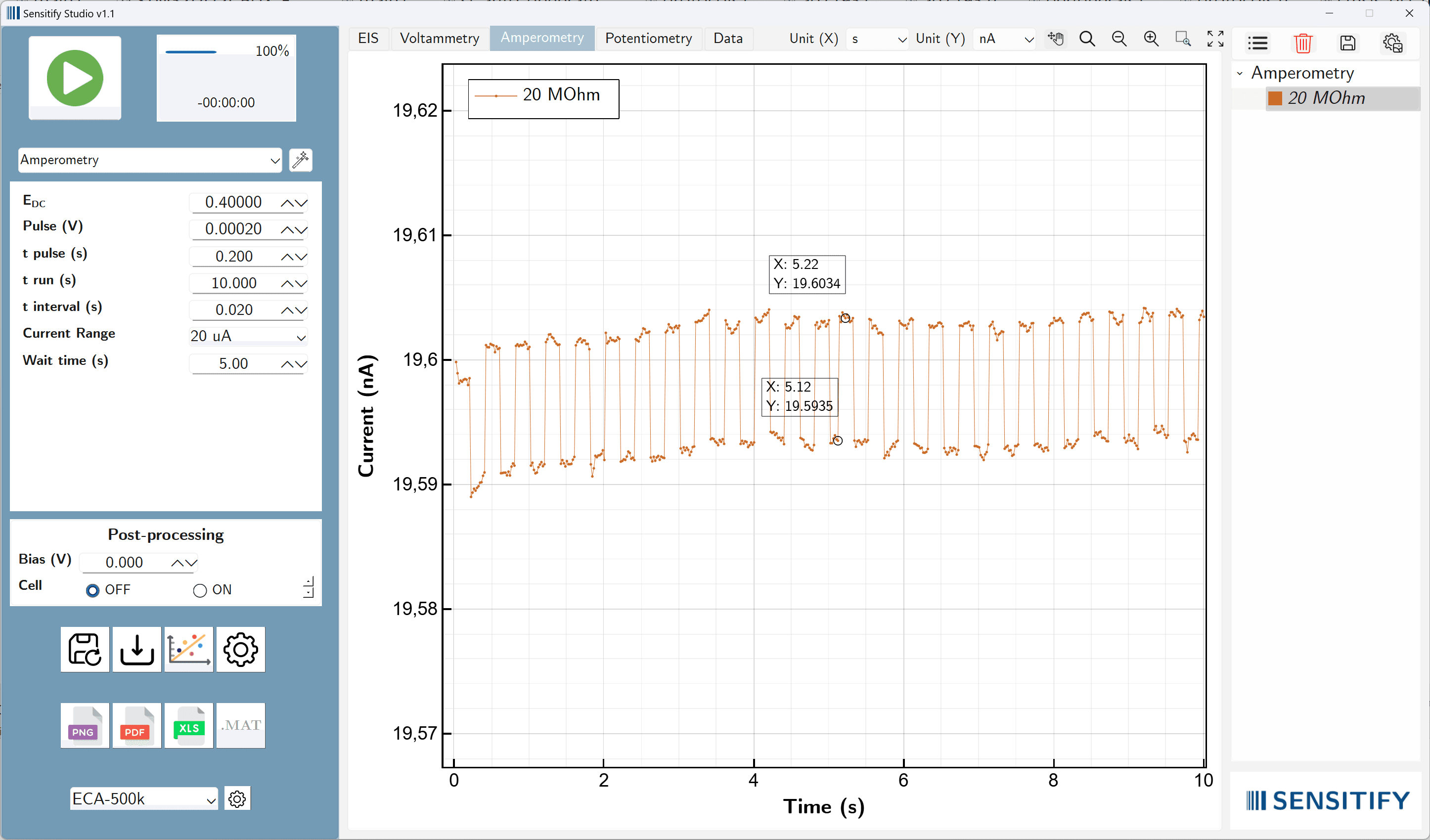

ECA-500k is a modern potentiostat and impedance analyser equipped with a purpose-buit analog frontend and a novel lock-in detection method which brings best-in class measurements without huge investment. The potentiostat performs voltammetry, amperometry, potentiomety and electrochemical impedance spectroscopy. It is equipped with a test fixture for interdigitated electrodes and screen printed electrodes to make mechanically stable measurements, free and easy-to-use software which has built-in data analysis tools for circuit fitting and peak-finding, and experiment asistant application for helping to choose best parameters.

Applications:

Electrochemical sensor development,
Corrosion measurement,
Batteries,
Applications requiring impedance analysis

Form Factor	Portable
Channels	≥ 1
ADC resolution	24 bit
PC interface	USB
Power supply	5 V supplied by USB-C
Input impedance

Voltage resolution (output)	1 μV
Min. Voltage resolution (output) / μV	1
Max. Potential range (±) / V	4

Max. current (output) / A	±50 mA
Current range	±50 mA
Current Resolution (input)	1 fA
Min. Current Resolution (input) / pA	1

EIS Capability	Yes
EIS frequency range	10 µHz to 500 kHz
Max. EIS frequency range / MHz	0.5
Min. EIS frequency range / µHz	10
EIS Amplitude resolution	24-bit resolution
AC frequency resolution	10 µHz to 0.3 mHz
Potentiostatic EIS Amplitude	1 mVRMS to 350 mVRMS
Potentiostatic EIS Amplitude Resolution	0.01 mV
Galvanostatic EIS Amplitude	50 mAp-p
